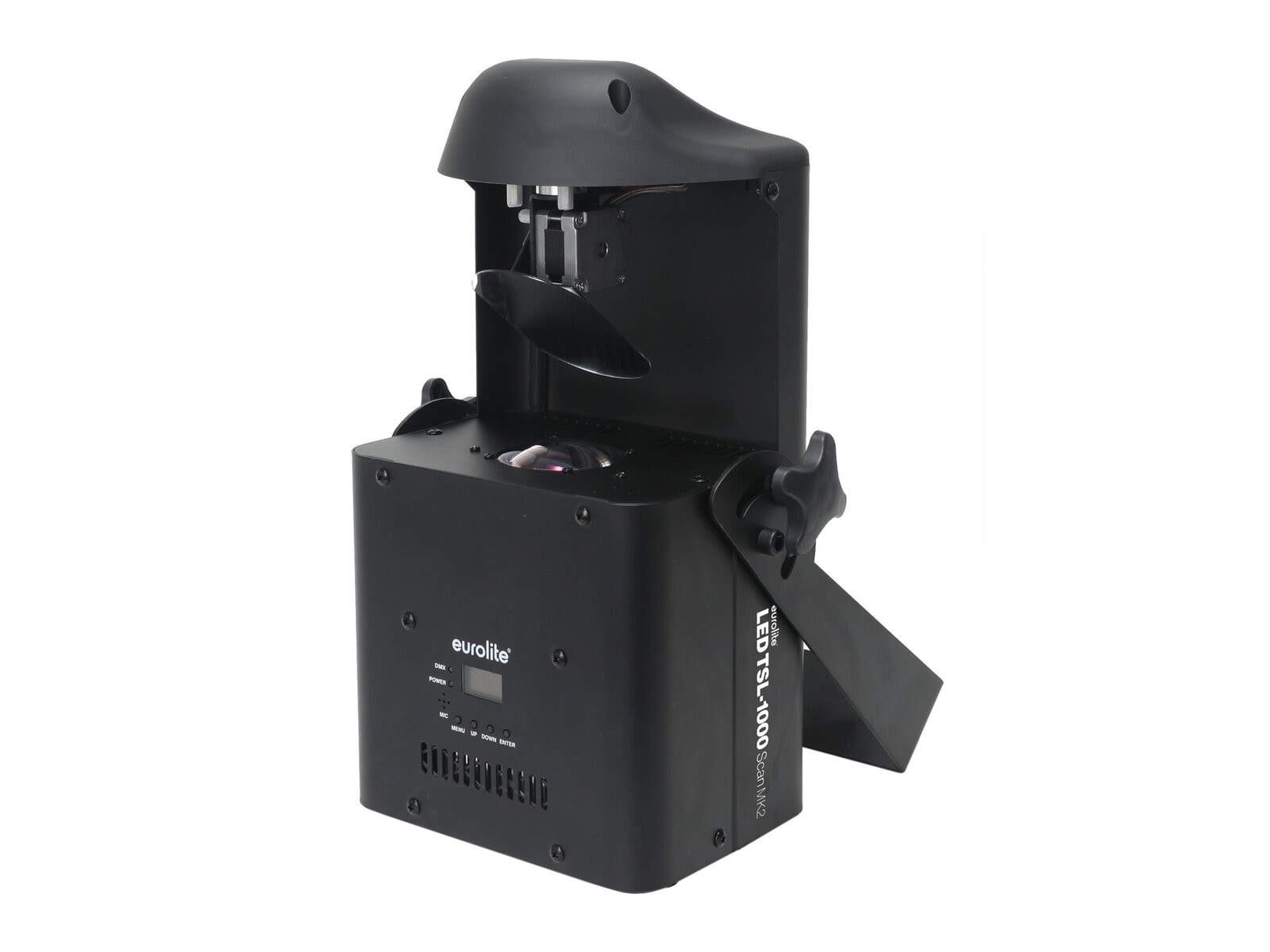

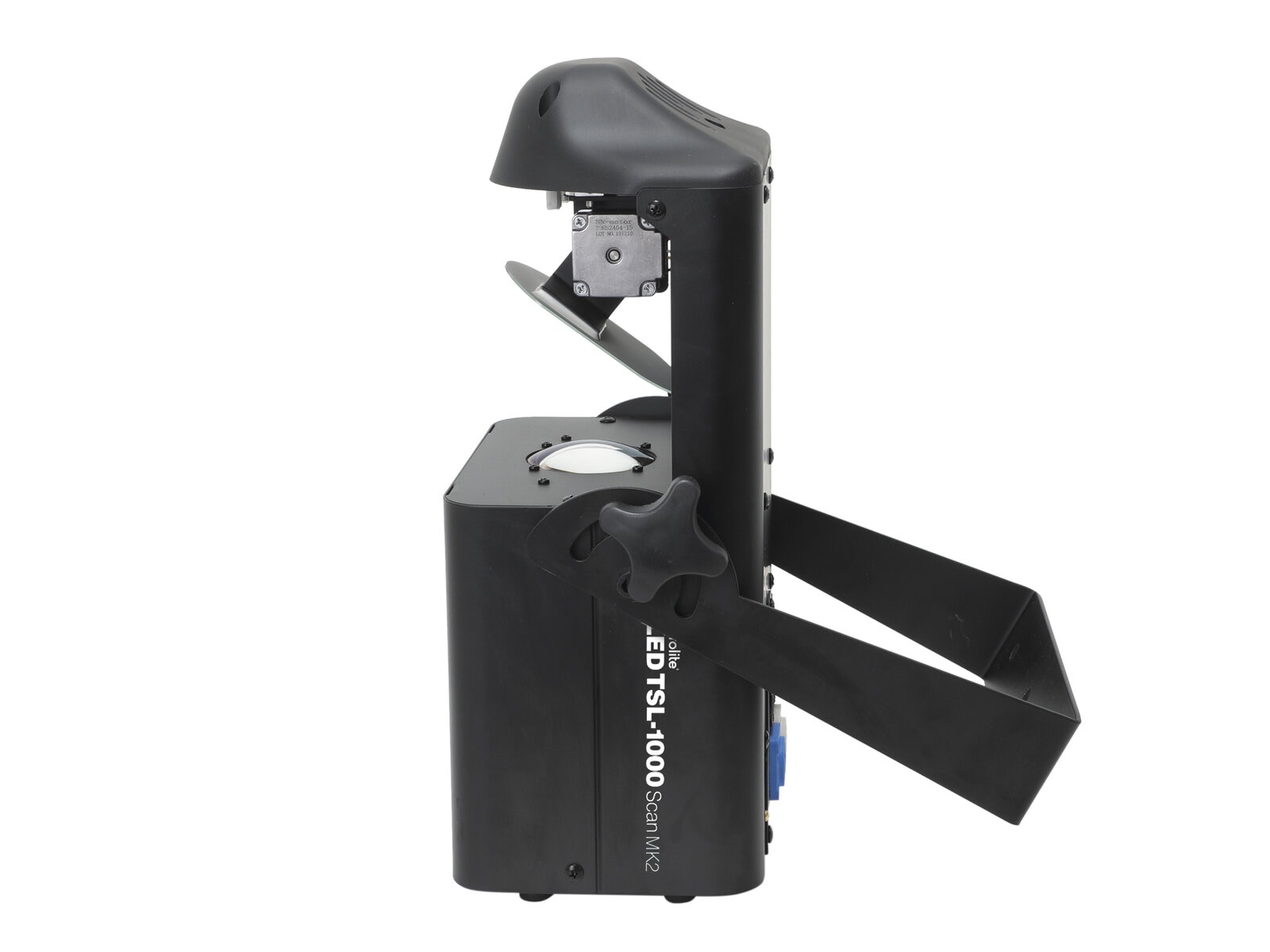

Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus

• Note: The macro programs of the predecessor model (no. 51786122) are not identical, therefore no synchronous master/slave operation is possible between these devices.
• 1 powerful LED 100 W COB (chip-on-board) cold white (CW)
• Positioning within 160° PAN and 50° TILT
• Exact positioning (16 bit resolution)
• Focus motor-driven; color wheel; gobo wheel with rotating gobos; Prism 3-fold
• Gobo effect; Strobe effect
• Color wheel with 8 dichroic filters plus open
  half colors selectable, Rainbow effect with adjustable speed in both directions
• Gobo wheel with rotating gobos, 7 gobos and open
  shake effect
• Gobos changeable
• Slot-in gobo system for easy gobo replacement
• Integrated show programs
• The device is cooled by cooling fan
• Control via stand-alone; DMX; Master/slave function; Sound to light via Microphone
• Flicker-free
• With a beam angle of 20°
• OLED display
• Dimmer electronic
• Preprogrammed in Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
• Rubber feet
• Mains input and output for power linking up to 8 units

Package contents

• 1 x light effect, 1 x user manual, 1 x power cord, 1 x safety eyelet

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
110 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:
P-Con (gray), mounting version
Fuse:
5 x 20 mm, T 4 A Fuse replaceable
Lamp type:
LED lamp
LED:
1 x 100 W COB (chip-on-board) cold white (CW)
Color temperature:
8000K
Max. TILT movement:
50° Exact positioning (16 bit resolution)
Max. PAN movement:
160° Exact positioning (16 bit resolution)
Flash rate:
1 - 25 Hz
Equipment:
Focus motor-driven; color wheel; gobo wheel with rotating gobos; Prism 3-fold
Color generation:
Color wheel with 8 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:
Gobo wheel with rotating gobos, 7 gobos and open
Shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
DMX channels:
10; 15
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
Cooling fan
Control:
Stand-alone; DMX; Master/slave function; Sound to light via Microphone
Preprogrammed in:
Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
Beam angle:
20°
Beam angle (1/2 peak):
20°
Illuminance in Lux (lx):
Cold white (CW) 1m: 35679 lx, 3m: 4265 lx, 6m: 1055 lx
Housing color:
Black
Display type:
OLED display
Transport aid:
Rubber feet
Dimensions:
Width: 25,1 cm
Depth: 14,1 cm
Height: 37,7 cm
Weight:
5,75 kg
Noise classification:
Class 2 (slight noise)
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
