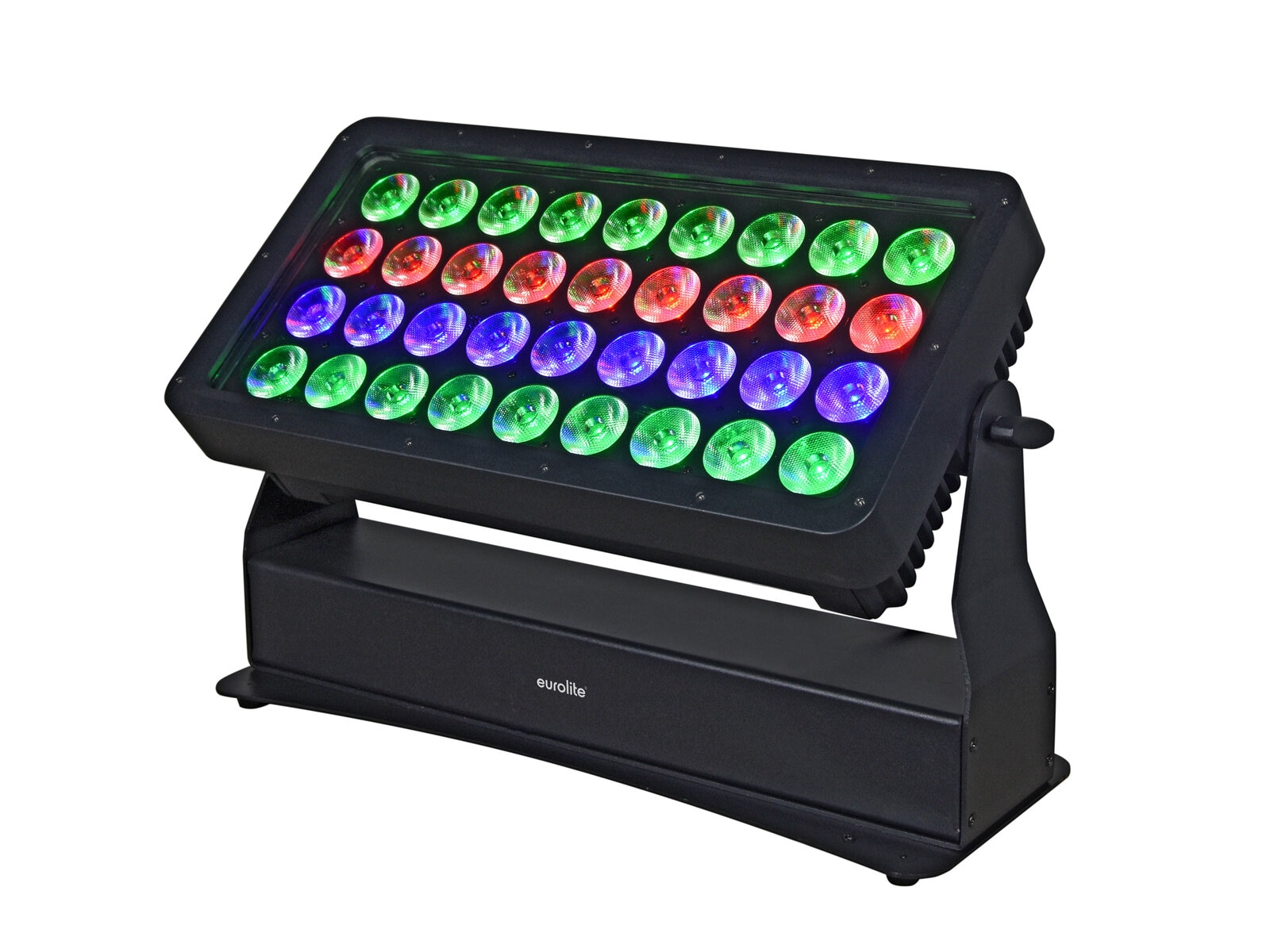

Bright outdoor spot with RGBW LEDs and W-DMX

• Integrated W-DMX transceiver for wireless DMX Control
• 36 powerful LEDs 8 W high-power 4in1 QCL RGBW (homogenous color mix)
  4 segments separate controlling
• Direct color selection for 27 preset colors
• The device is cooled by low-noise cooling fan
• Control via stand-alone; IR remote control; DMX; W-DMX by wireless solution; Master/slave function; wired remote control
• Preprogrammed in Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; Light´J
• With a beam angle of 14°
• With Omega bracket
• OLED display
• Rubber feet
• Suitable for outdoor use
• Mains input and output for power linking up to 8 units
• Wash effect; Strobe effect
• For application areas such as: Architecture; Stage

Package contents

• 1 x device, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery, 1 x omega bracket

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
230 W
IP classification:
IP65
LED:
36 x 8 W high-power 4in1 QCL RGBW (homogenous color mix)
Flash rate:
0 - 20 Hz
DMX channels:
3; 4; 6; 9; 10; 16; 26
DMX input:
3-pin XLR (M) mounting version IP
DMX output:
3-pin XLR (F) mounting version IP
Cooling:
Low-noise cooling fan
Control:
Stand-alone; IR remote control; DMX; W-DMX by wireless solution; Master/slave function; wired remote control
Preprogrammed in:
Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; Light´J
Beam angle:
14°
Beam angle (1/2 peak):
14°
Beam angle (1/10 peak):
30
Housing color:
Black
Attachment system:
Omega bracket
Display type:
OLED display
Carrier frequency:
2,4 GHz
Transport aid:
Rubber feet
Dimensions:
Length: 51,35 cm
Depth: 18,10 cm
Height: 33,90 cm
Weight:
12,75 kg
Remote control
Battery:
1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
