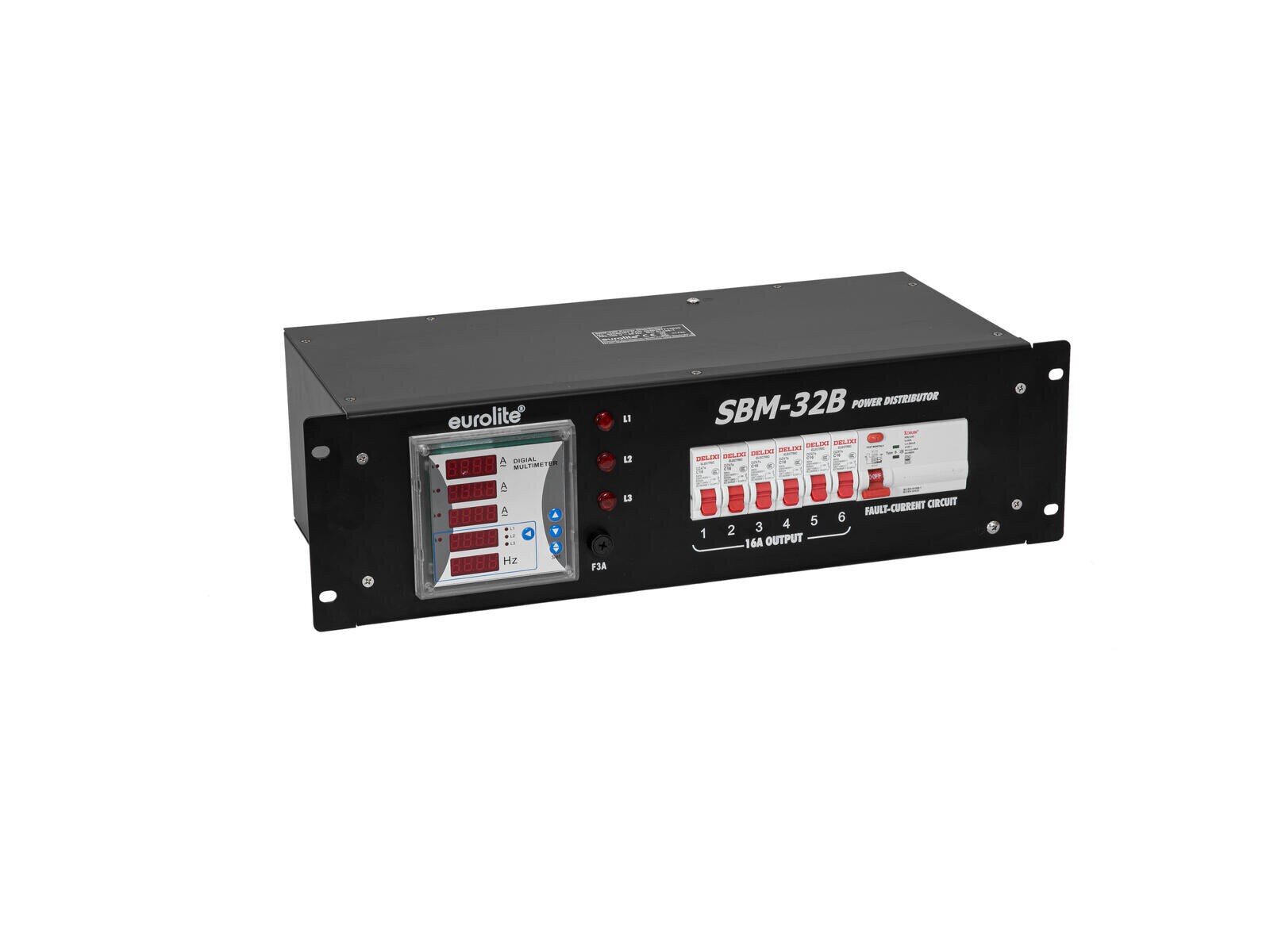

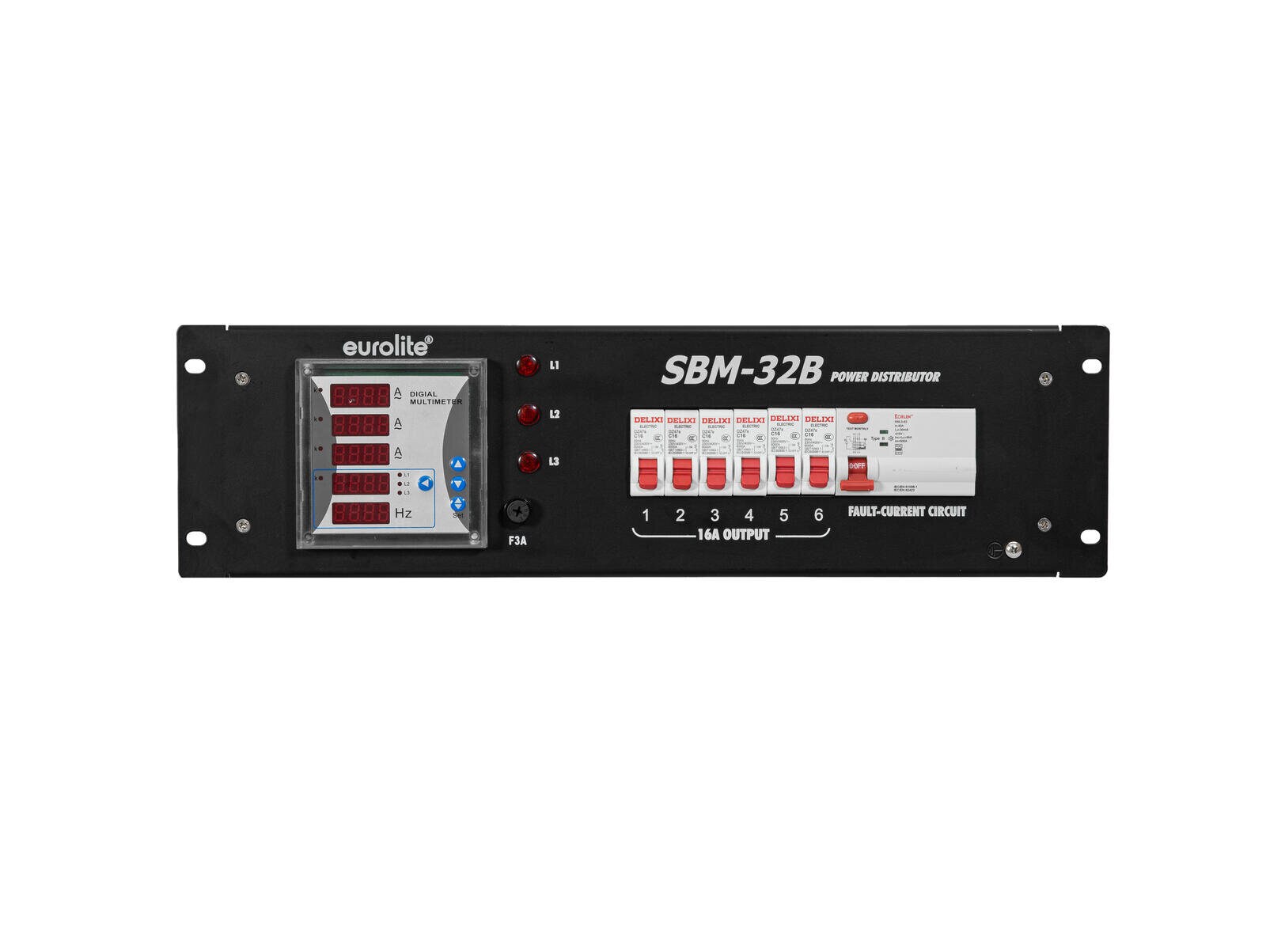

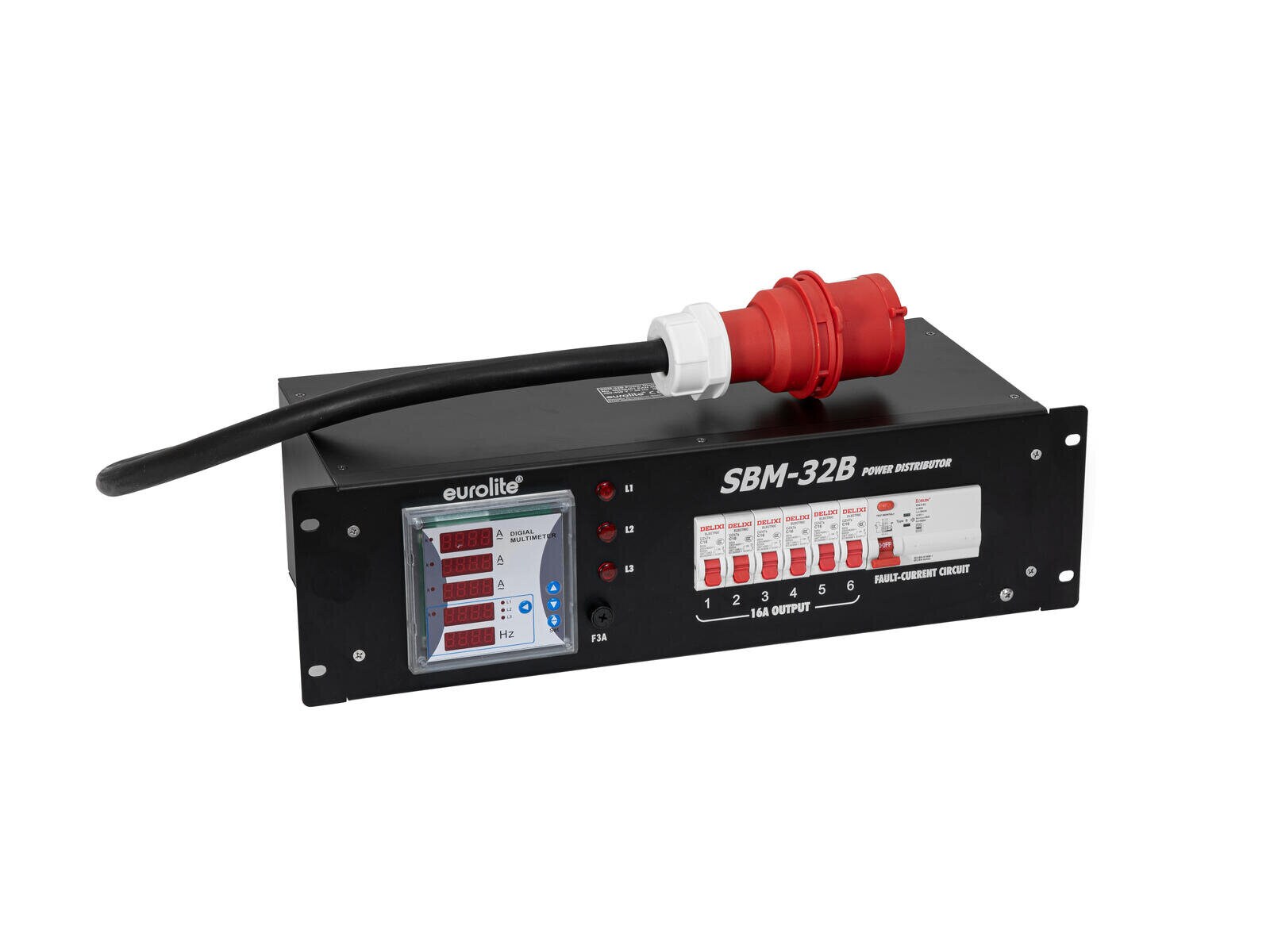

32 A power distributor with multimeter in 19" housing
- 3-phase measuring of voltages from 100-380 V/AC
- Current and frequency display
- (19") 48.3 cm rack installation 3 U
- 4 digit 7-segment LED display
Scope of delivery
- 1 x device
- 1 x user manual
| Power supply: | 380-400V AC, 50Hz |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Fixed power supply cord with CEE 32A 5-pin |
| Cable length: | 1.2 m |
| Power output: | 6 x safety contact (F), hinged lid mounting version fused 1 x CEE 32A 5-pol (F) recessed mounting |
| Device fuse: | 5 x 20 mm, F 3 A fuse replaceable |
| Protection: | 1 x fault-current circuit breaker (FI) Typ B 63A/0.03A 6 x circuit breaker C 16A 1-pol |
| Display type: | 4 digit 7-segment LED display |
| Display: | Volts , amps , frequency |
| Housing design: | (19") 48.3 cm rack installation 3 U |
| Dimensions: | Width: 48.3 cm Depth: 28.0 cm Height: 13.3 cm |
| Weight: | 6.75 kg |
