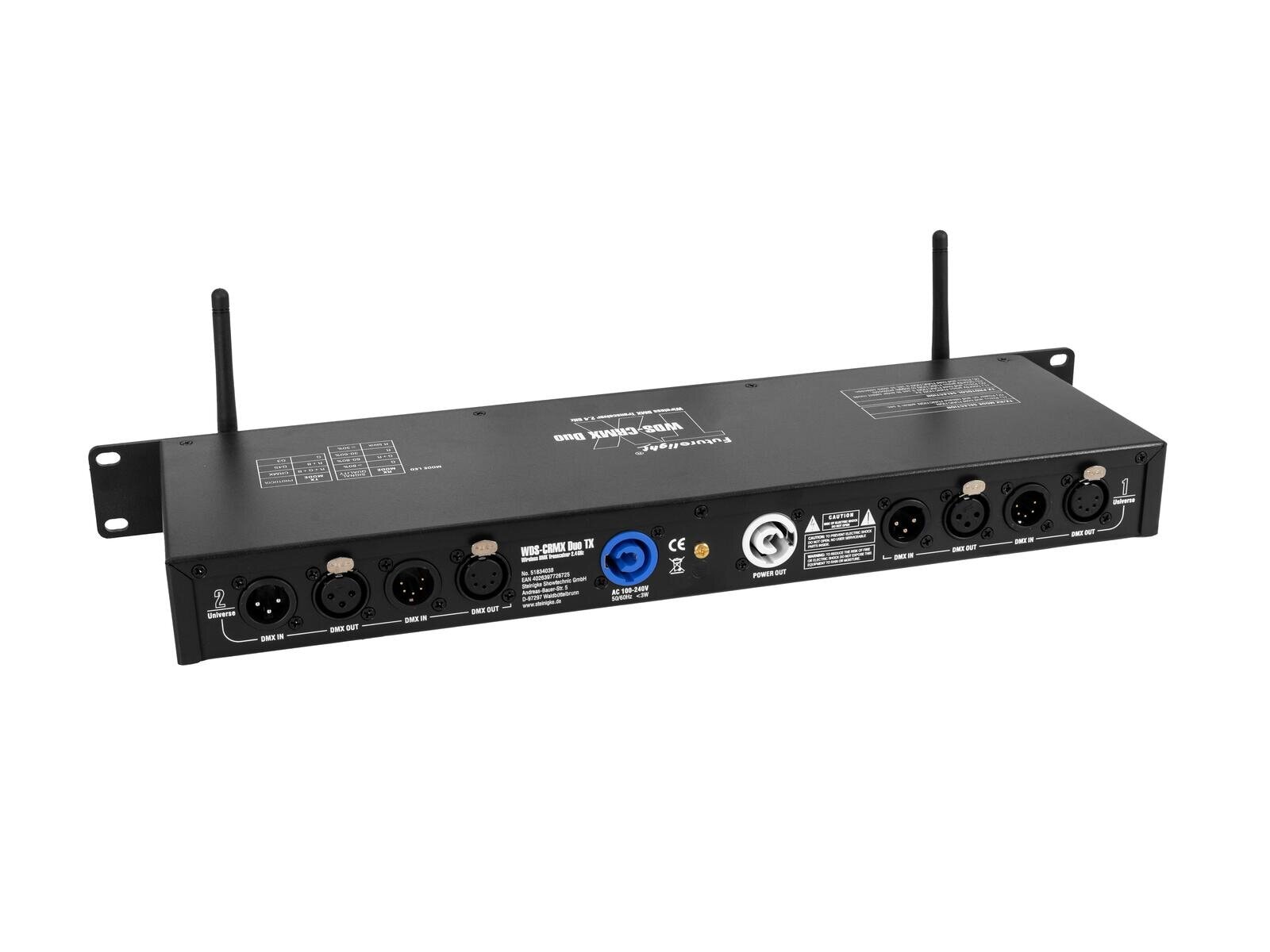

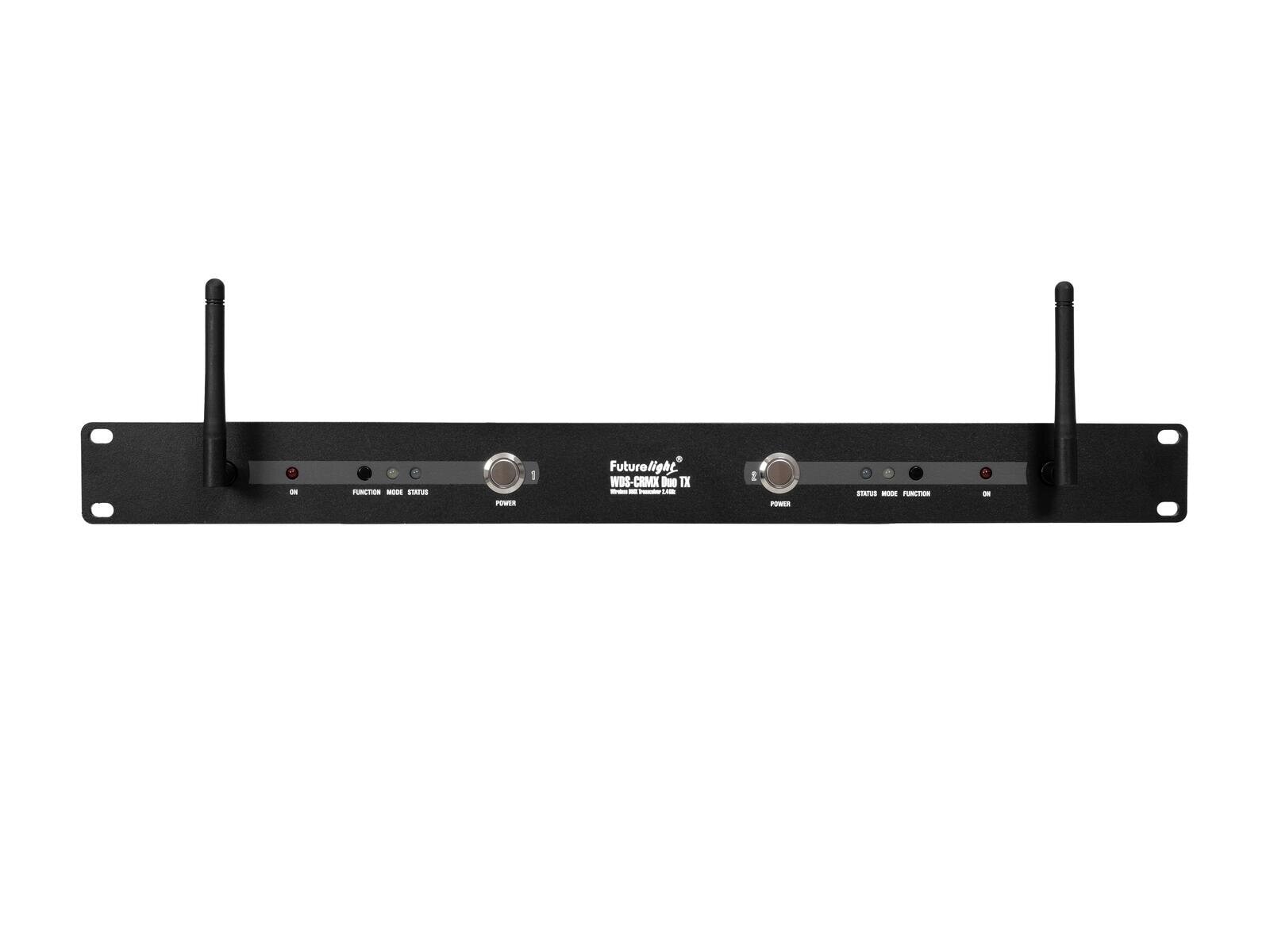

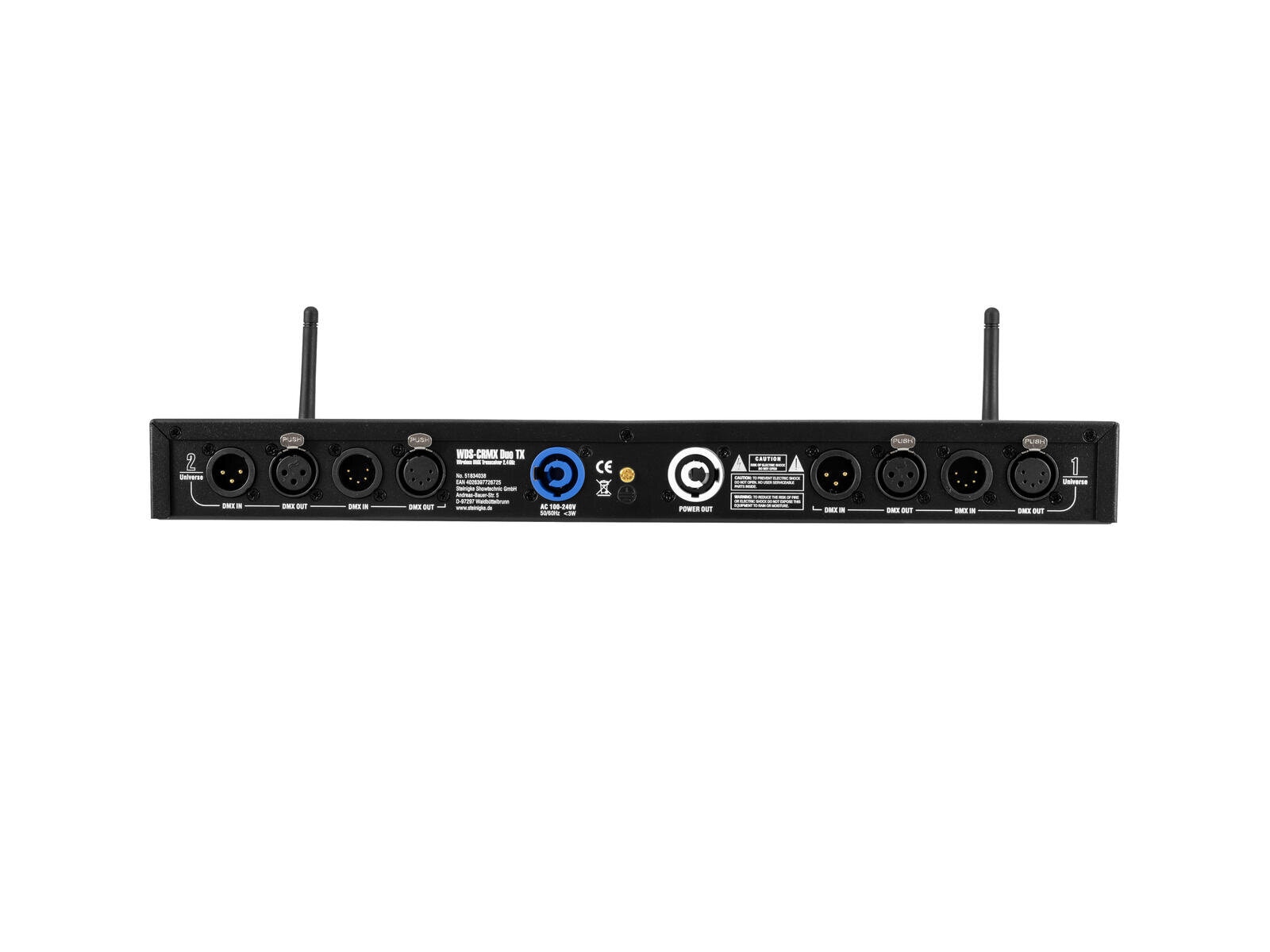

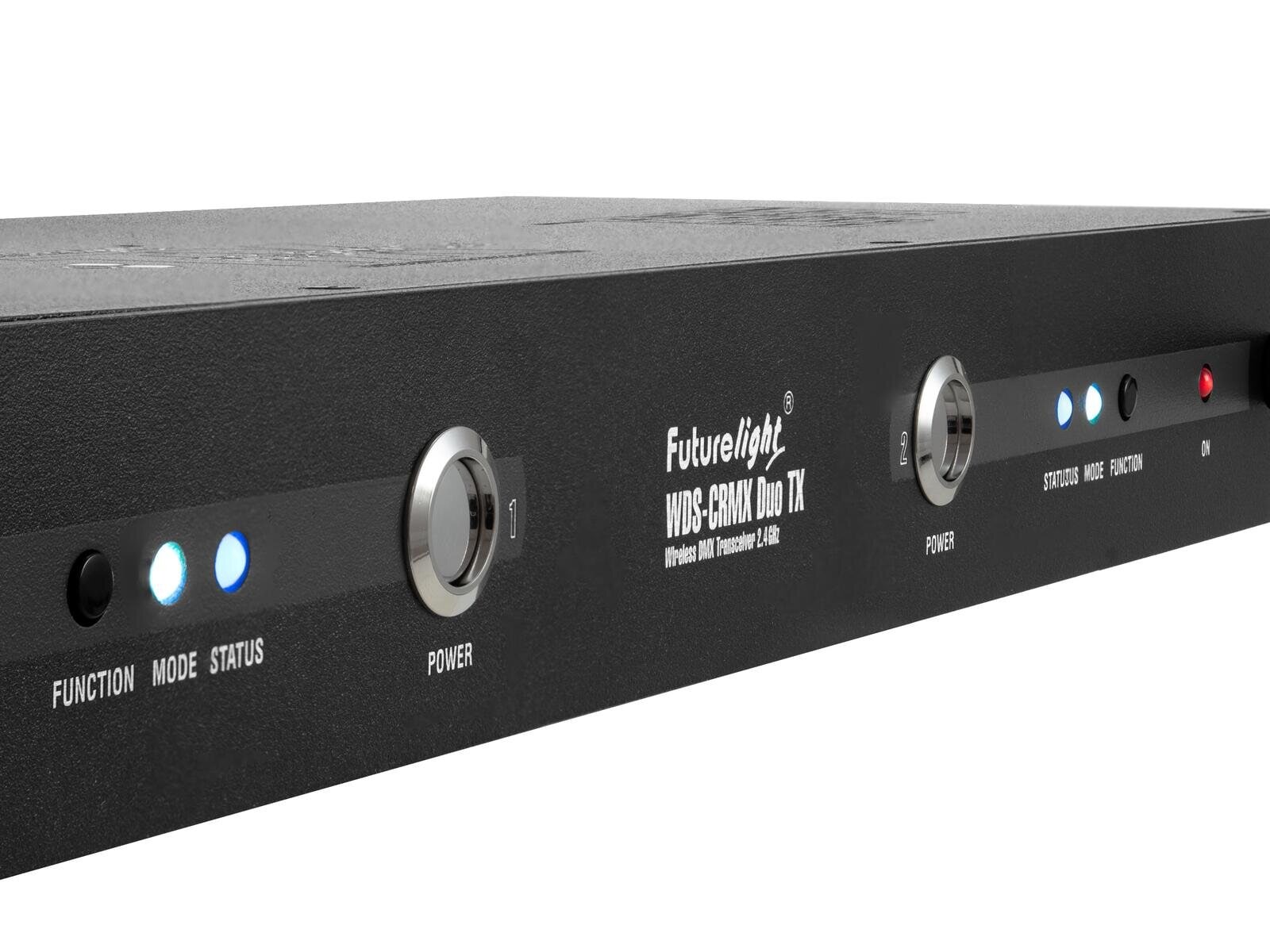

Wireless DMX system 2.4 GHz - two transceivers with CRMX unit in 19" housing
- Transceiver, to be used as transmitter or receiver
- Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
- Can receive and process up to 1024 DMX channels
- Can transmit up to 1024 DMX channels
- Multicolored LED indicator
- (19") 48.3 cm rack installation 1 U
- Control via CRMX by LumenRadio; W-DMX by wireless solution
- Operating range up to 600m with line-of-sight
- Up to 10 transmitters can be operated in parallel without interference
- Mains input and output for power linking up to 8 units
Scope of delivery
- 1 x device
- 1 x user manual
- 1 x power cord
- 1 x declaration of conformity
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 3 W |
| IP classification: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | P-Con (gray), mounting version |
| Device fuse: | T 1 A fuse serviceable |
| DMX channels: | Input 1024 Output 1024 |
| DMX input: | 2 x 3-pin XLR (M) mounting version 2 x 5-pin XLR (M) mounting version |
| DMX output: | 2 x 3-pin XLR (F) mounting version 2 x 5-pin XLR (F) mounting version |
| Control: | CRMX by LumenRadio; W-DMX by wireless solution |
| Range: | Range up to 600m with line-of-sight |
| Carrier frequency: | 2.4 GHz |
| Parallel mode: | Max. 10 transmitter |
| Antenna gain: | 3 dBi |
| Modulation: | GFSK |
| Status LED: | DMX, level meter, power |
| Color: | Black |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Length: 48.3 cm Depth: 14.0 cm Height: 44 cm |
| Weight: | 1.33 kg |
