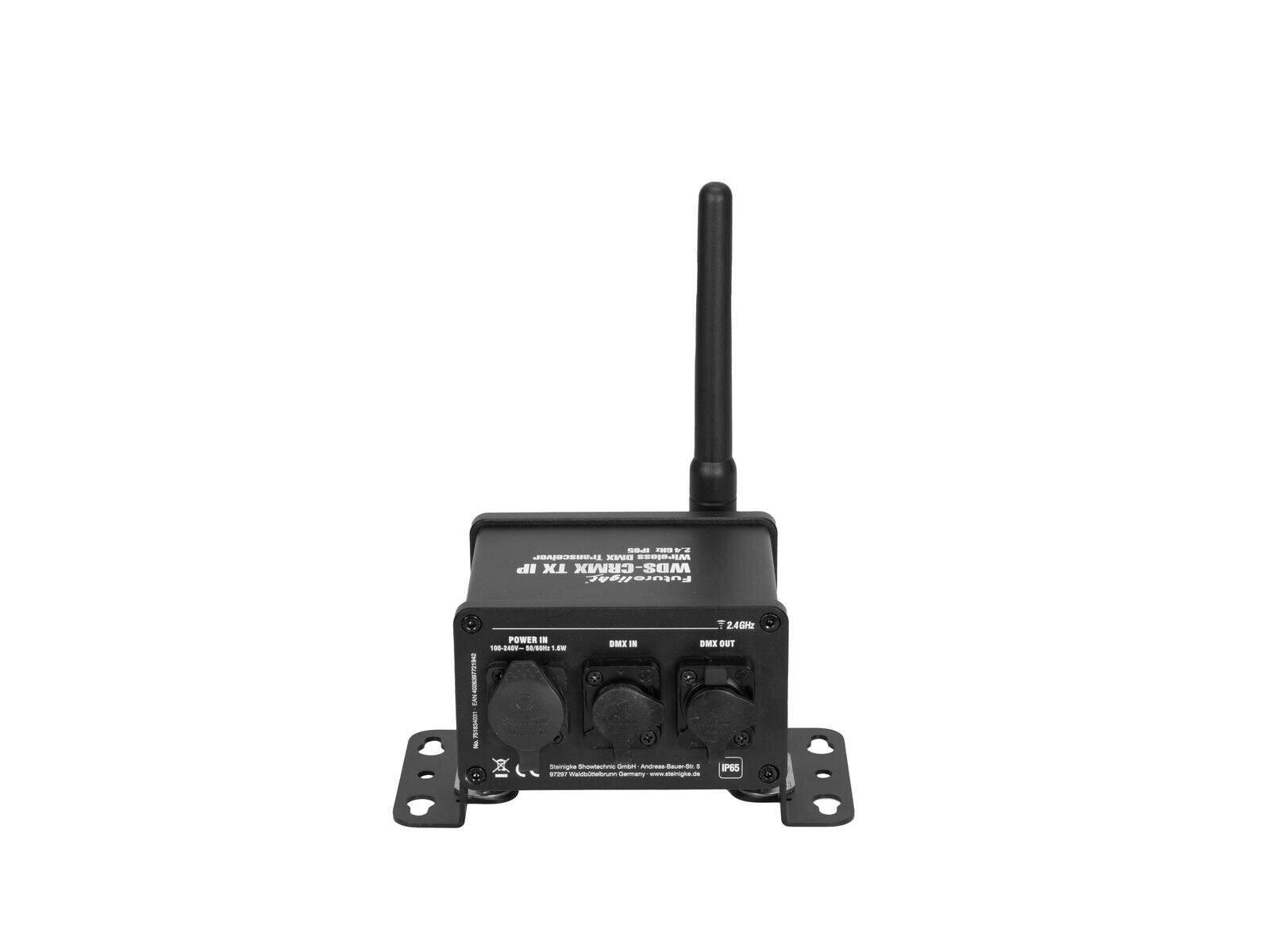

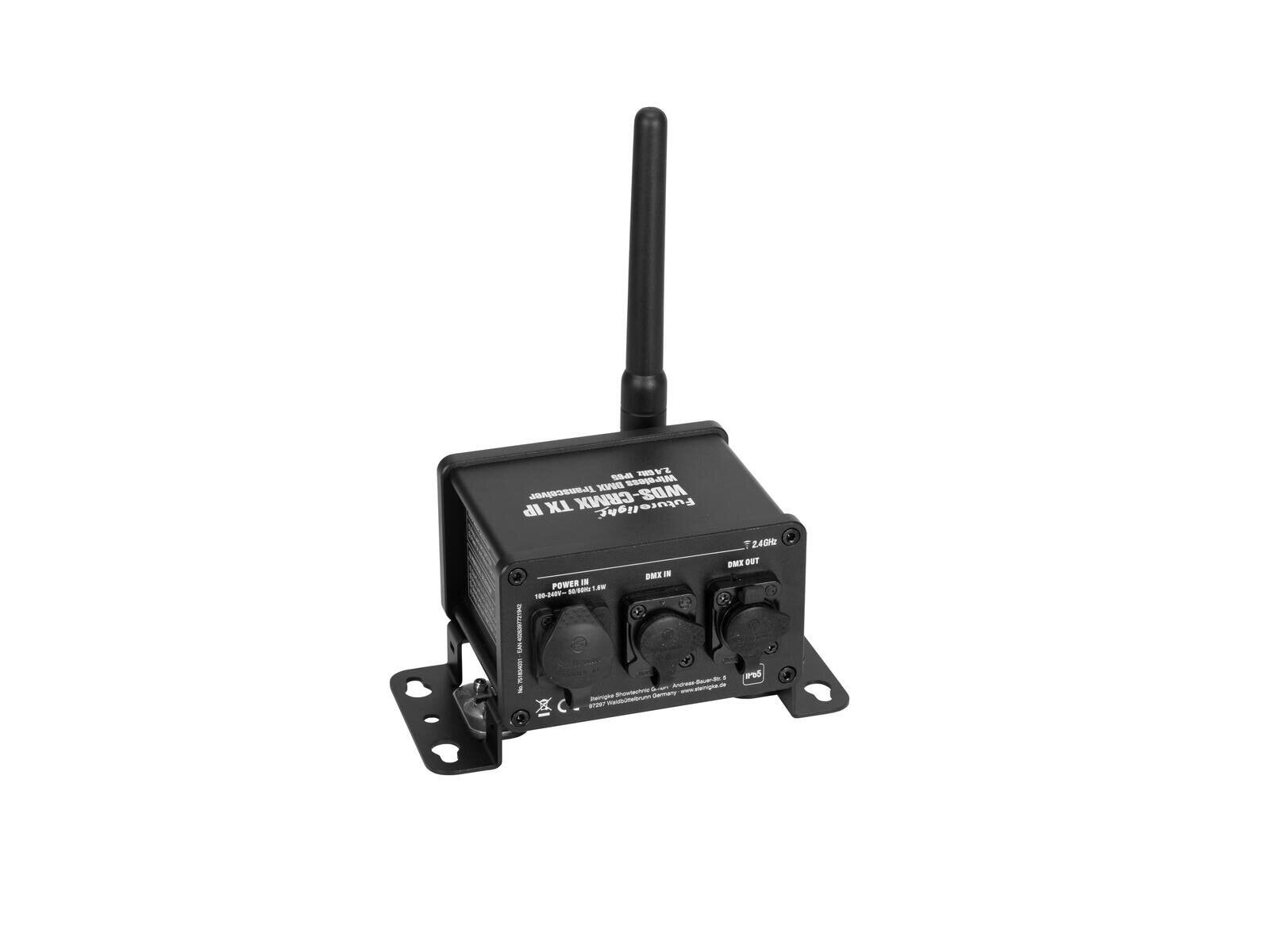

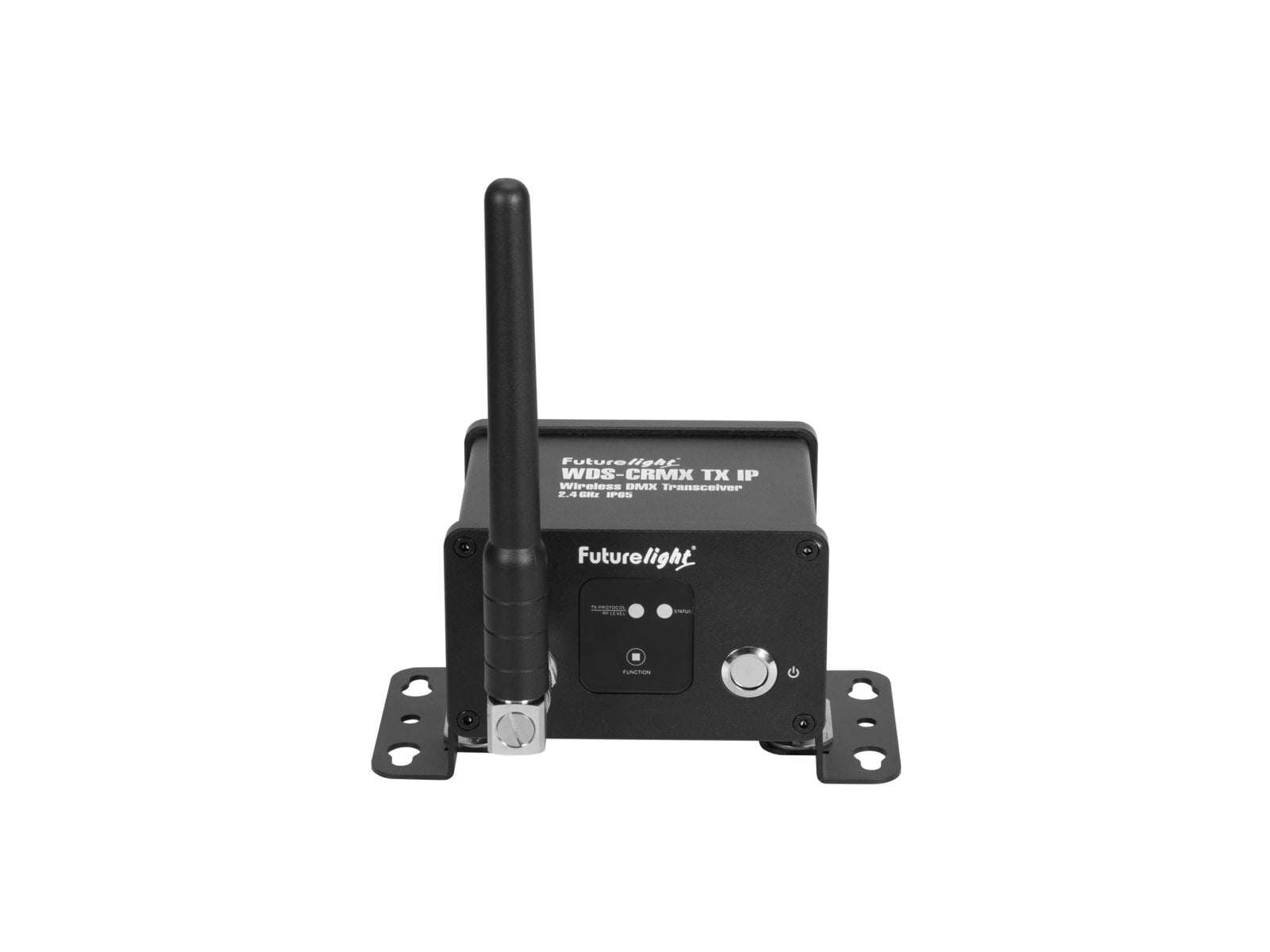

Weather-proof wireless DMX transceiver, IP65
- Transceiver, to be used as transmitter or receiver
- Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Multicolored LED indicator
- Lockable power input (IP T-Con)
- Control via W-DMX by wireless solution; CRMX by LumenRadio
- Operating range up to 600m with line-of-sight
- 2.4 GHz license-free worldwide
- Up to 10 transmitters can be operated in parallel without interference
- With omega bracket
- OLED display
- Suitable for outdoor use IP65
Scope of delivery
- 1 x device
- 1 x user manual

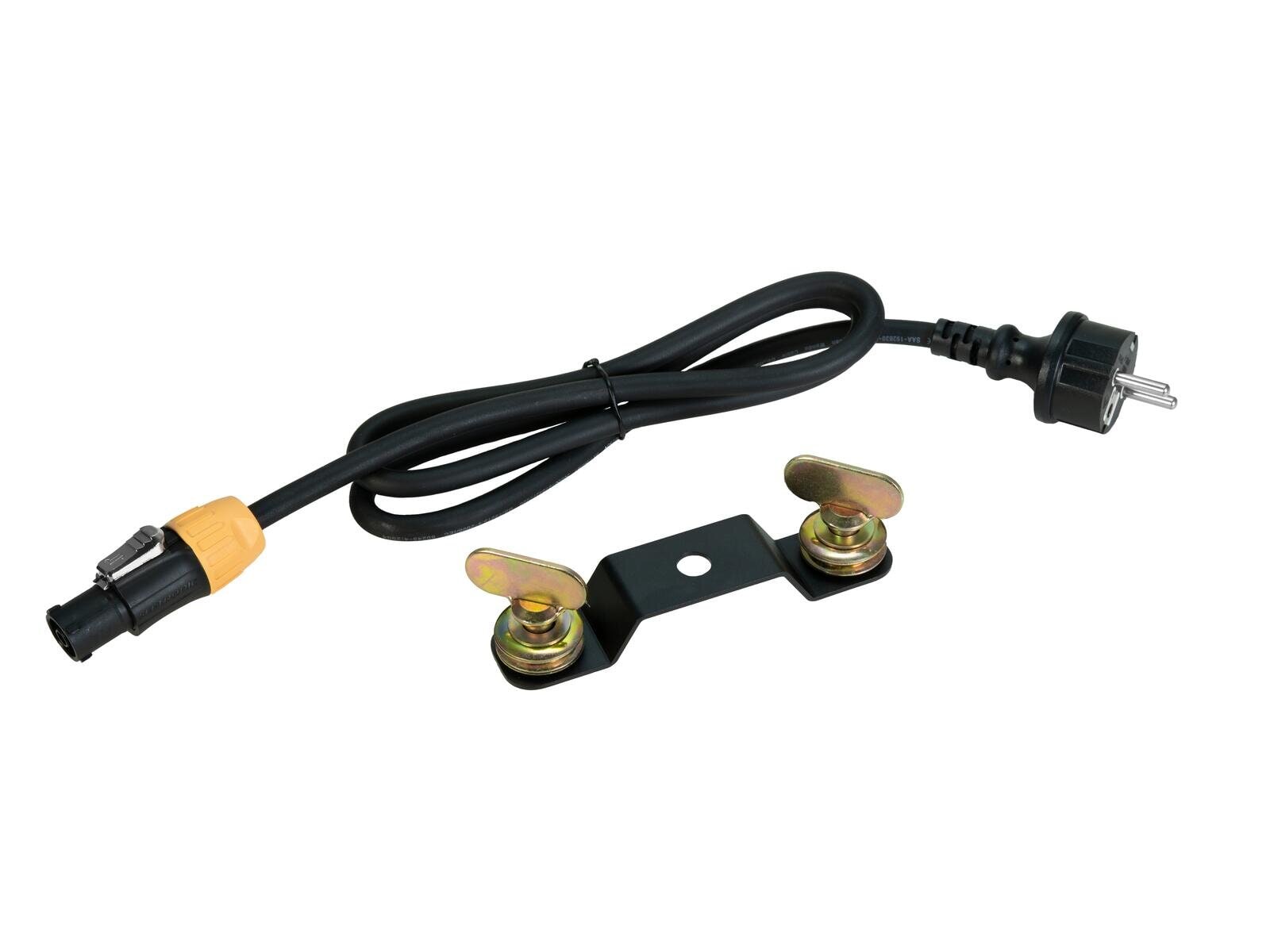

- 1 x power cord
- 1 x omega bracket
- 1 x declaration of conformity
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 1.6 W |
| IP classification: | IP65 |
| Protection class: | Protection class I |
| Power connection: | Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| DMX channels: | Input 512 Output 512 |
| DMX input: | 1 x 3-pin XLR (M) mounting version IP |
| DMX output: | 1 x 3-pin XLR (F) mounting version IP |
| Control: | W-DMX by wireless solution; CRMX by LumenRadio |
| Range: | Range up to 600m with line-of-sight |
| Frequency band: | 2.4 GHz |
| Parallel mode: | Max. 10 transmitter |
| Antenna gain: | 5 dBi |
| Modulation: | GFSK |
| Attachment system: | Omega bracket |
| Display type: | OLED display |
| Status LED: | DMX, level meter |
| Color: | Black |
| Dimensions: | Length: 17.3 cm Width: 15.6 cm Height: 9.2 cm |
| Weight: | 1.30 kg |
