Wireless XLR audio system for dynamic microphones and line signals, 2.4 GHz
- Plug-on system with transmitter and receiver ready to use
- Eliminates troublesome cable runs
- For use with mixers, active speakers and dynamic microphones
- Automatic pairing
- 24 bit/48 kHz for the ultimate sound quality
- Rechargeable lithium batteries
- LED indicator for monitoring the operating status
- Sample rate: 48 kHz
- Ultra-low latency
- Note: The device does not provide phantom power. Therefore, only dynamic microphones and condenser microphones that are battery-operated can be used.
- Operating range up to 30m with line-of-sight
- Up to 4 transmitters can be operated in parallel without interference
- 2.4 GHz license-free worldwide
transmitter
- Cordless, flexible and versatile

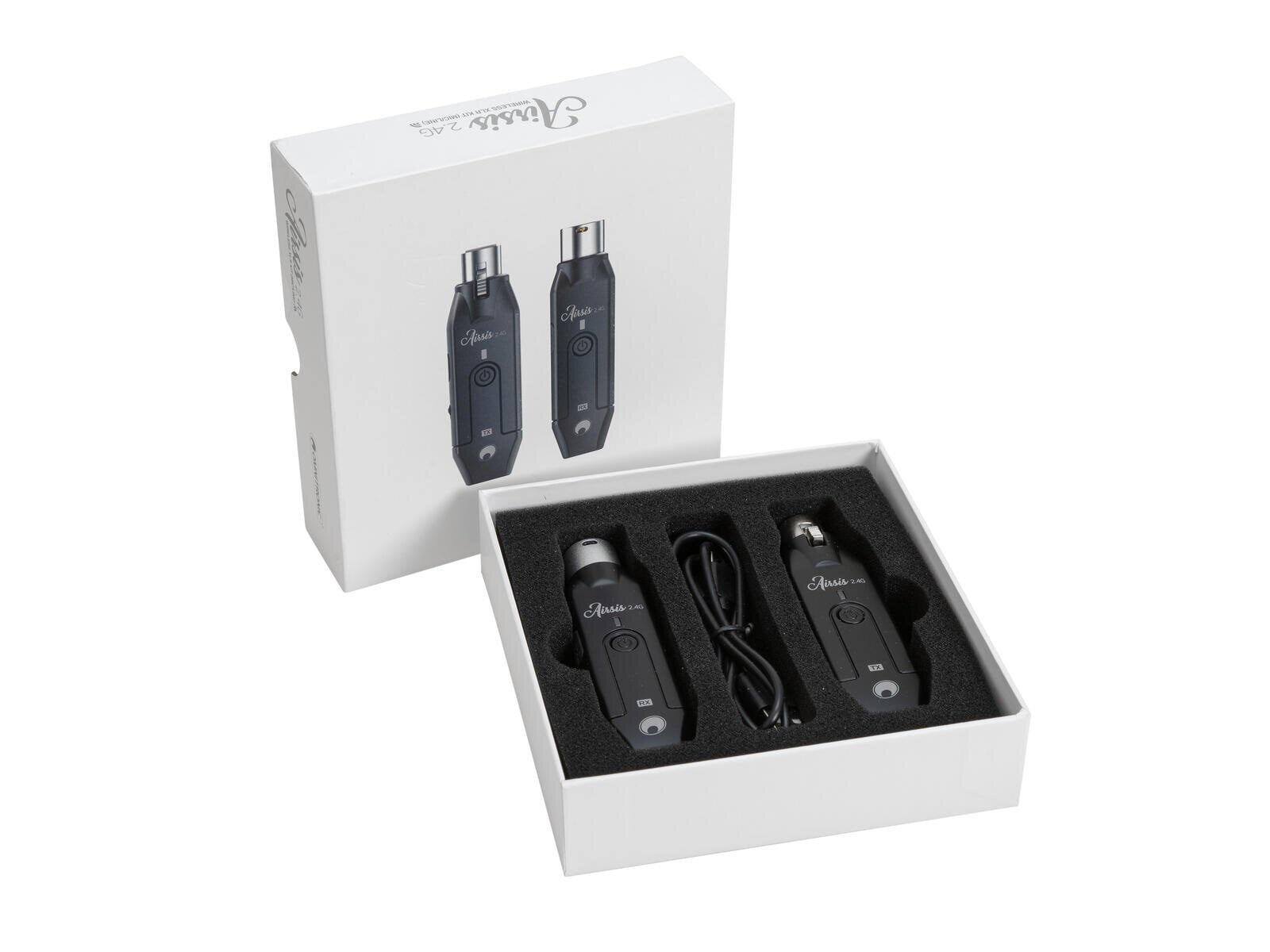

Scope of delivery
- 1 x transmitter
- 1 x receiver
- 1 x USB cable
- 1 x user manual
- 1 x declaration of conformity
| Type: | Audio transmission |
| Protection class: | Protection class III |
| Power connection: | Mains input via USB C (W) mounting version power supply cord for USB A mains connection (provided) |
| Frequency range: | 20 - 20000 Hz |
| THD: | Mic/line <0.02 % at 1 kHz |
| Range: | Range up to 30m with line-of-sight |
| Frequency band: | 2.4 GHz |
| Parallel mode: | Max. 4 transmitter |
| Latency: | 5.8 ms |
| Housing color: | Black matte |
| Sample rate: | 48 kHz |
| Converter: | 24 bit |
| Material: | Plastic |
| Weight: | 0.14 kg |
| Transmitter | |
| Power connection: | Battery/battery pack built-in |
| Battery pack type: | 1 x lithium ion 3.7 V, 600 mAh, 2.22 Wh |
| Control elements: | Power switch, Input sensitivity switch |
| Status LED: | Power, Mute, charge status indicator, pairing |
| Connections: | Input: mic/line via 1 x 3-pin XLR (F) mounting version |
| Input channels: | 1 x mono with mic-line switch |
| USB port: | 1 x type C |
| Dimensions: | Length: 10.7 cm Width: 3.0 cm Depth: 2.2 cm |
| Weight: | 0.047 kg |
| Receiver | |
| Power connection: | Battery/battery pack built-in |
| Battery pack type: | 1 x lithium ion 3.7 V, 800 mAh, 2.96 Wh |
| Control elements: | Power switch |
| Status LED: | Power, Mute, charge status indicator, pairing |
| Connections: | Output: mic/line via 1 x 3-pin XLR (M) mounting version |
| USB port: | 1 x type C |
| Dimensions: | Length: 10.7 cm Width: 3.0 cm Depth: 2.2 cm |
| Weight: | 0.044 kg |
| USB cable | |
| Cable length: | 0.5 m |
| Plug A: | 1 x USB A (M) |
| Plug B: | 2 x USB C (M) |
| Weight: | 0.02 kg |
