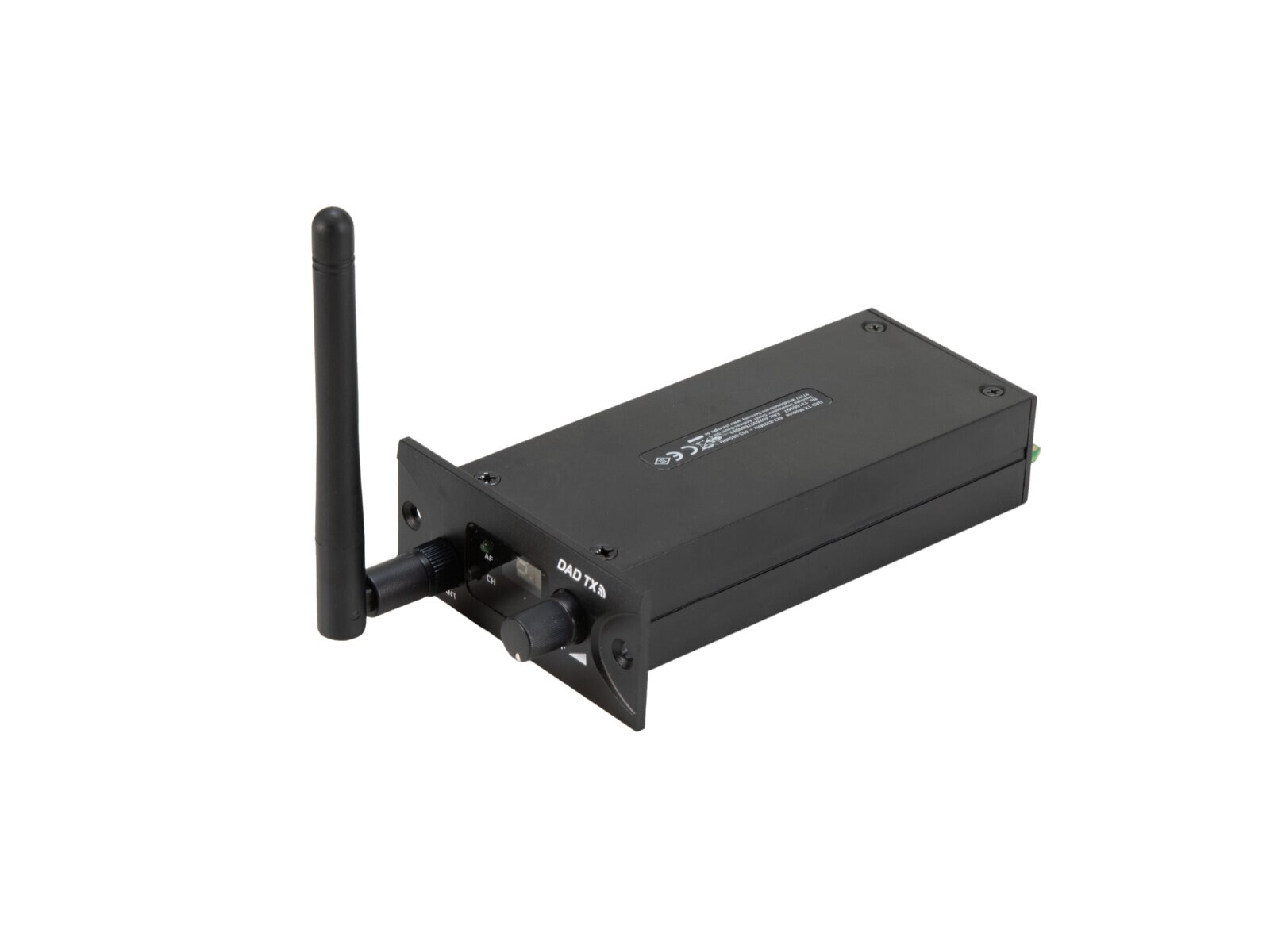

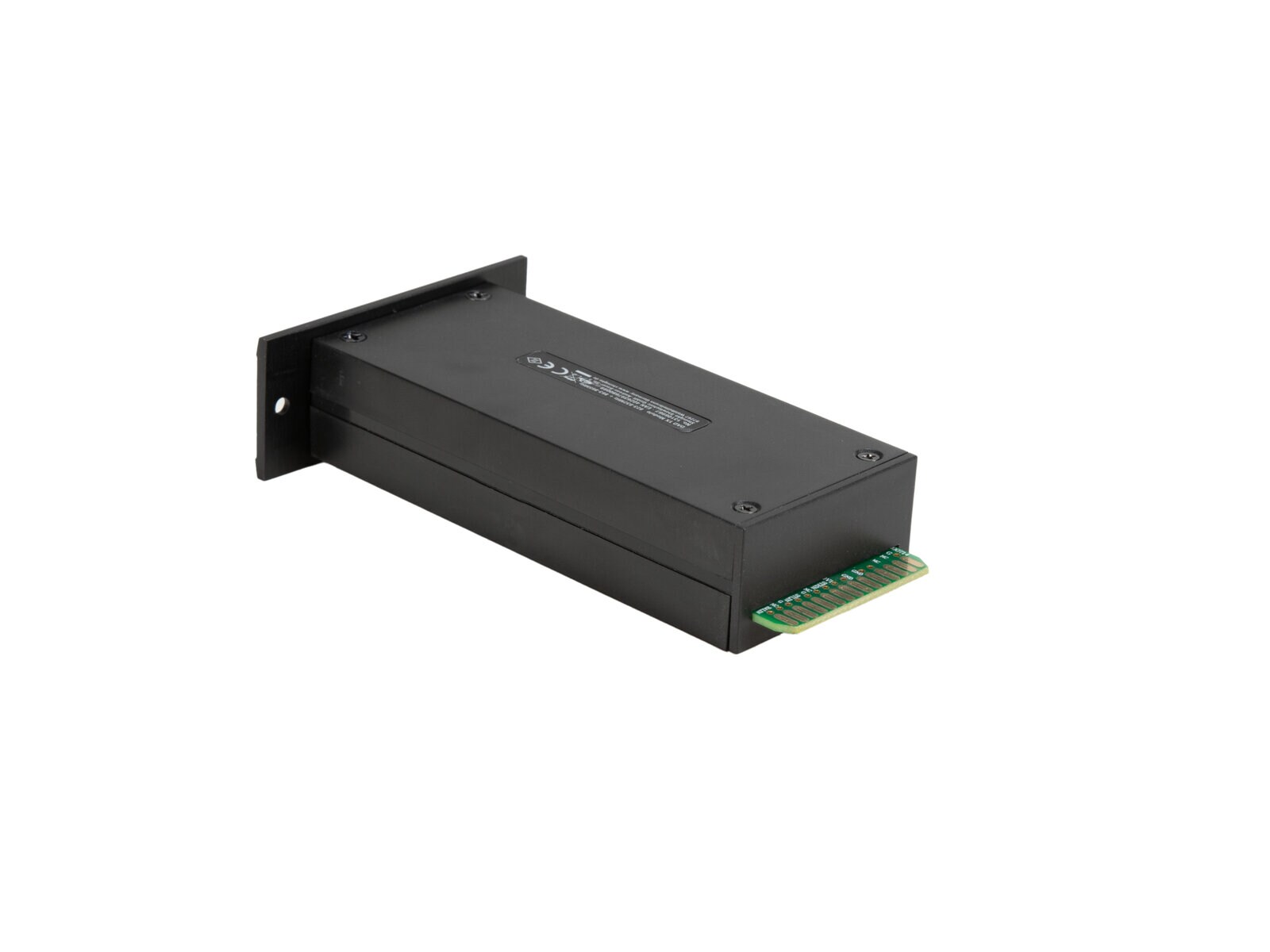

Transmitter module for wireless audio transmission to DAD receiving units
- For installation into the DAD-4RX 4-channel receiver housing
- For retrofitting the MOM-10BT4 modular PA system
- Wireless audio transmission to DAD receiving units
- 16 selectable UHF frequencies (823-832 and 863-865 MHz)
- LED display for indicating selected channel
- Detachable rod antenna
- Operating range up to 30m with line-of-sight
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
Scope of delivery
- 1 x transmitter
- 1 x antenna
- 1 x user manual
- 1 x declaration of conformity
| Type: | Transmitter |
| Power supply: | 12V DC 150 mA |
| Number of channels: | 1 |
| Range: | Range up to 30m with line-of-sight |
| Frequency band: | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Frequency stability: | ± 0.001 % |
| RF power output: | 10 mW |
| Frequency selection: | 16 switchable frequencies |
| Control elements: | Frequency selector switch, level control |
| Status LED: | Power, signal |
| Connections: | Antenna via 1 x BNC (F) |
| Color: | Black |
| Dimensions: | Width: 7.1 cm Depth: 13.9 cm Height: 3 cm |
| Weight: | 0.11 kg |
