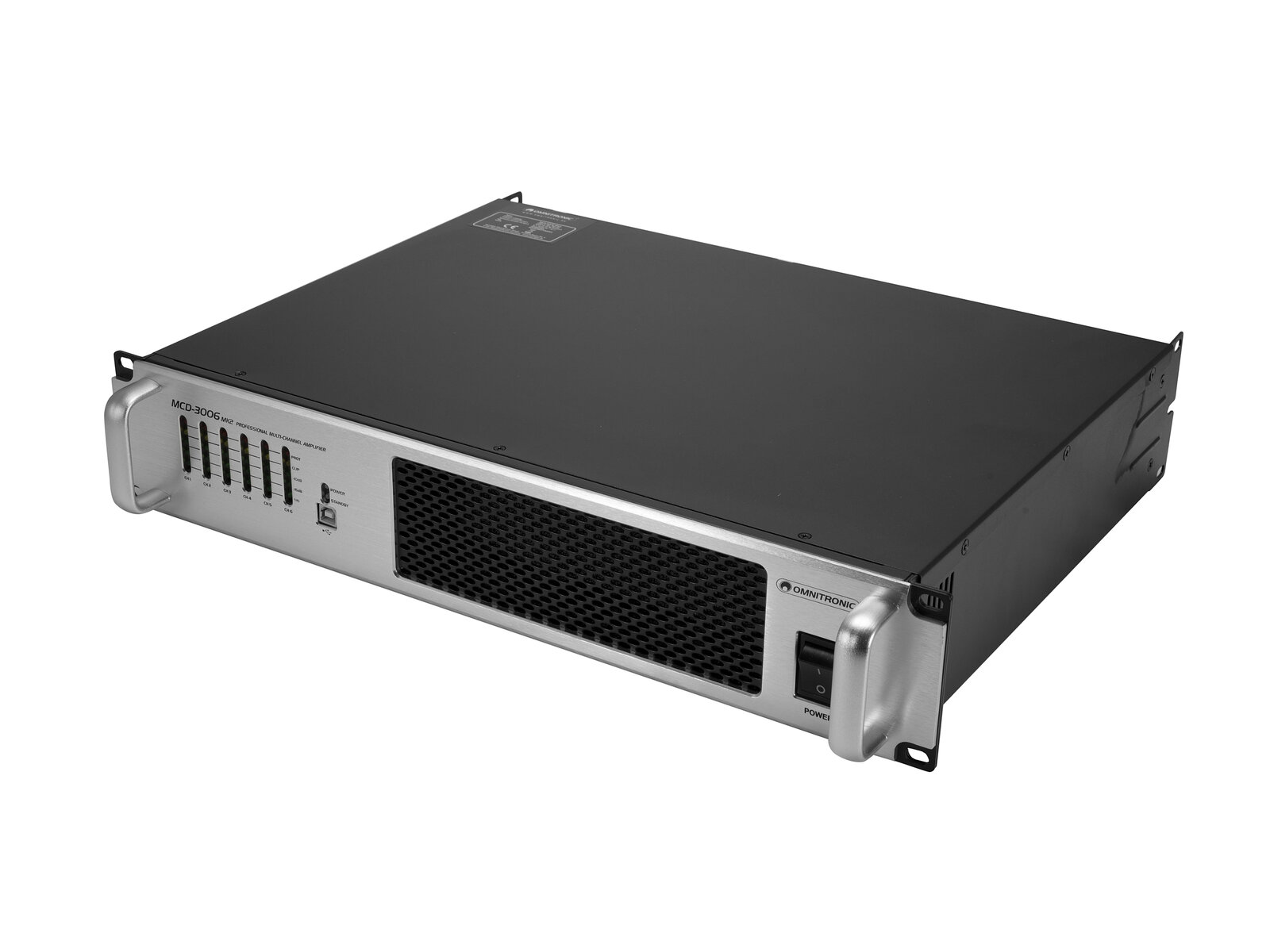

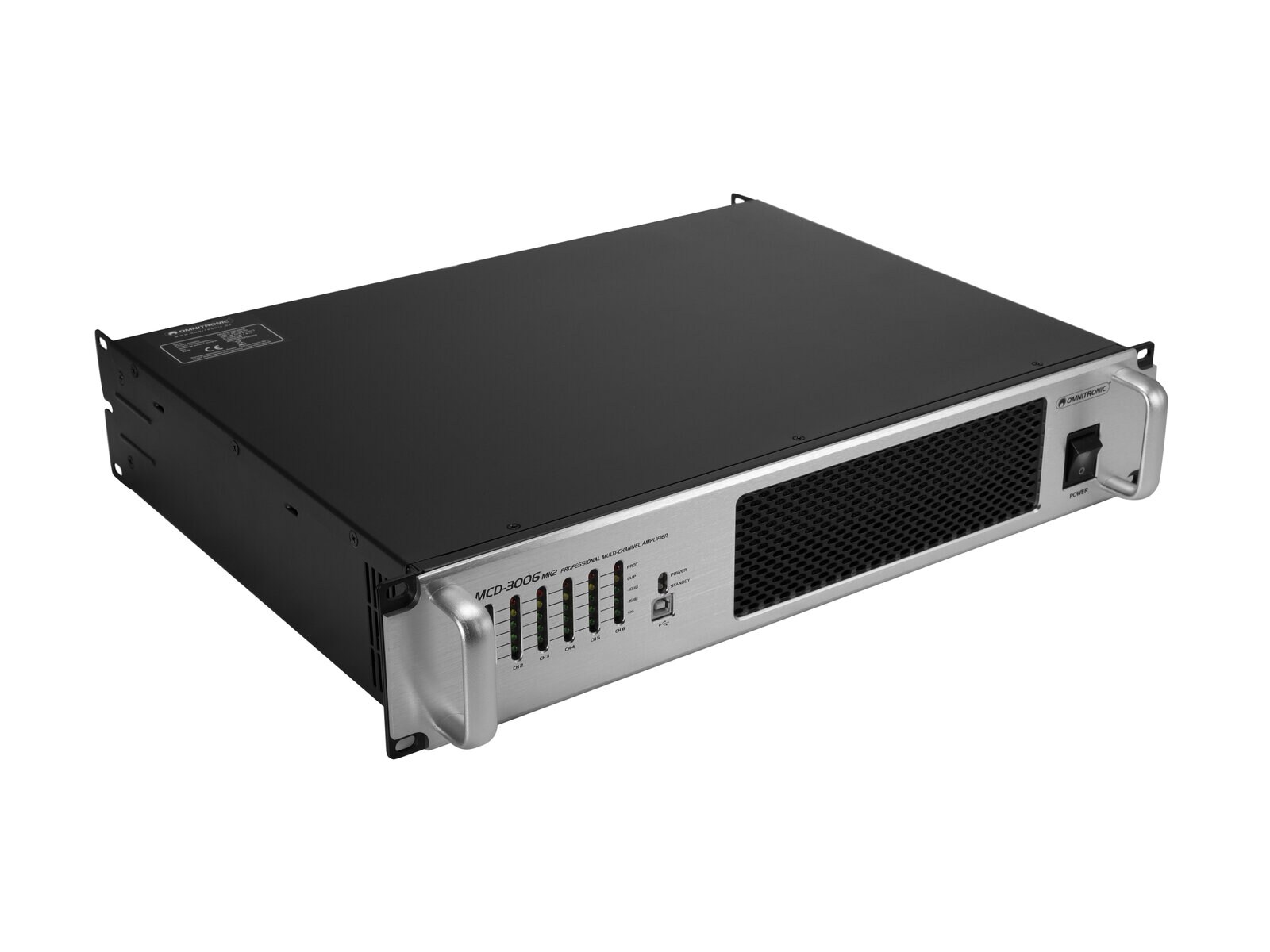

Class D multi-channel PA amplifier with SMPS, 6 x 500 W RMS (4 ohms), 6 x 250 W RMS (8 ohms)
- PA amplifier with integrated limiter for multi-zone applications
- Signal inputs via balanced XLR mounting jacks and terminal blocks
- Tamper-proof level adjustment on the rear panel
- 3-fold output meter with clip LED per channel
- Rugged steel chassis with aluminum front panel
- (19") 48.3 cm rack installation 2 U
- Highly efficient air flow from front to rear
- The device is cooled by cooling fan
- For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; rental; sports centres/gyms
Scope of delivery
- 1 x amplifier
- 1 x power cord
- 6 x screw plug-in terminal
- 4 x foot
- 4 x screw
- 1 x user manual
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 525 W 1/8 power |
| Output power: | 6 x 500 W RMS (4 ohms) 6 x 250 W RMS (8 ohms) |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Frequency range: | 22 - 25000 Hz |
| S/N ratio: | >120 dB |
| THD: | <0.003 % at 1 kHz |
| Cooling: | 2 x cooling fan , air flow from front to rear |
| Impedance: | Input: 22 kOhm , bal. Input: 12 kOhm , unbal. |
| Gain: | 26 dB |
| Circuitry: | Class D |
| Slew rate: | >10 V/µs |
| Damping factor: | >500 |
| Control elements: | Power switch, level control per channel |
| Controls: | Softstart; short-circuit; overheat; overload; DC voltage; power on/off transient |
| Status LED: | Power, level meter, clip, protect, standby |
| Connections: | Input: line via 6 x 3-pin XLR Input: line via 6 x screw plug-in terminal Link: speaker via 6 x screw plug-in terminal |
| Max. level: | Input: +2 V |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48.3 cm Depth: 38.8 cm Height: 8.9 cm |
| Weight: | 9.05 kg |
