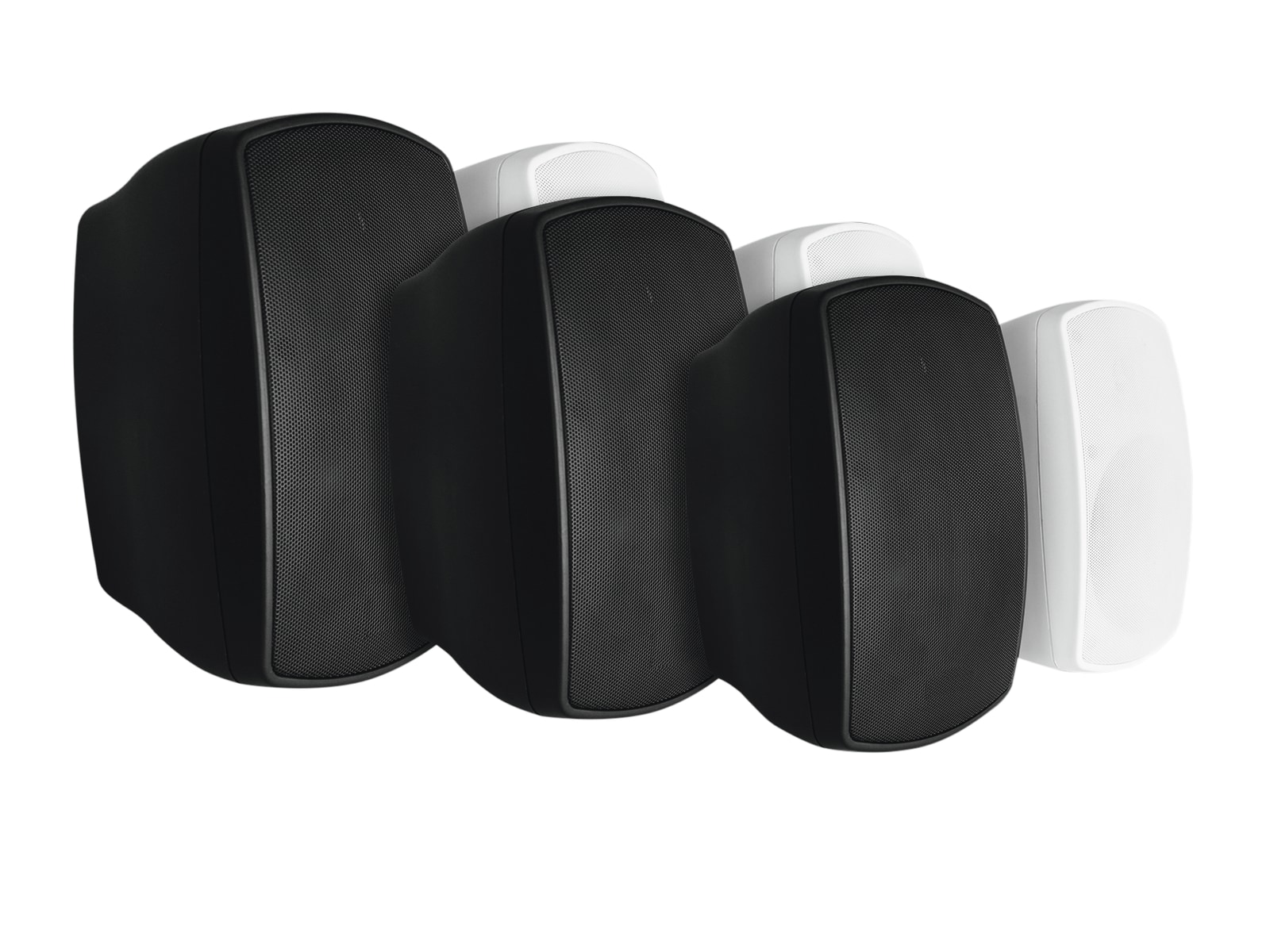

Weatherproof wall speaker pairThe OD-8T 100 V sound reinforcement speakers with excellent sound quality are ideal for indoor and outdoor use.The weatherproof 2-way system in a plastic housing is equipped with a 20 cm woofer, a 2.5 cm dome tweeter with silk membrane and a 100 V transformer with 4 power taps.The swivel and tilt mounting bracket allows easy wall and ceiling mounting at any angle.
Scope of delivery
Weather-proof wall speaker pair (IP65) with 8" woofers and 60 W RMS
- 2-way system with 20 cm woofer (8") and 2.5 cm silk dome tweeter (1")
- Durable plastic cabinet with metal grille and cover for the connectors
- Power selector switch with 8 ohms operating position

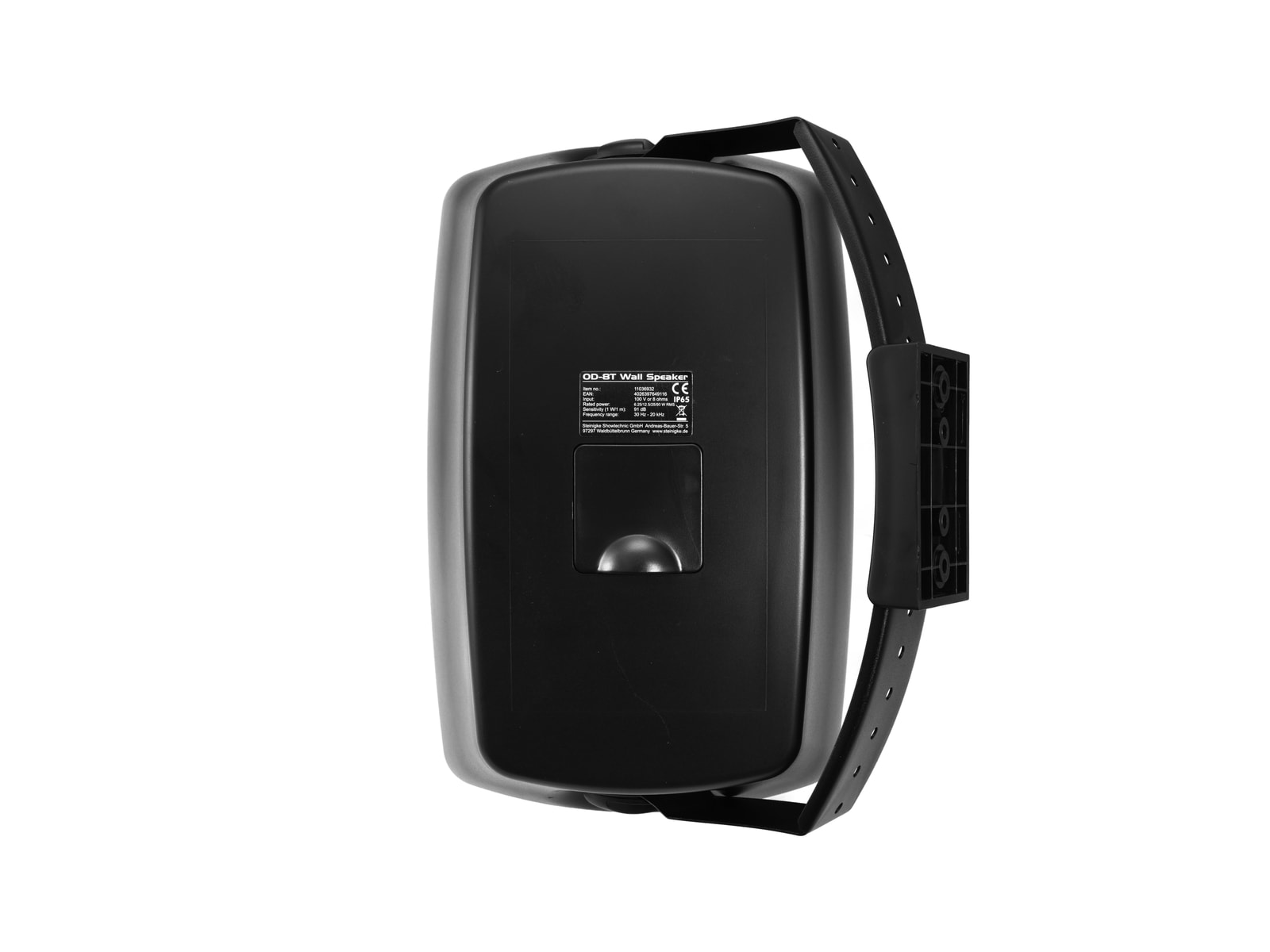

- With panning and tilting mounting bracket for ceiling or wall installation in most varying angles
- Black aluminum grille
- Suitable for outdoor use IP65
- 2 pieces per set
- For application areas such as: Trade fair and shop fitting; restaurants, bars and hotels; product presentations and lectures
Scope of delivery
- 2 x compact cabinet speaker
- 2 x mounting bracket
- 4 x knurled screw
- 1 x user manual
| IP classification: | IP65 |
| Power: | Program: 120W (8 ohms) Rated: 60W RMS (8 ohms) 50W (100V PA) |
| Frequency range: | 30 - 20000 Hz |
| Sensitivity: | 91 dB |
| Max. SPL: | 110 dB (100V PA); 111 dB (8 ohms) |
| Dispersion angle: | 170° x 170° |
| Impedance: | Public address systems 100V; 8 ohms |
| Attachment system: | Panning and tilting mounting bracket for ceiling or wall installation in most varying angles |
| Power tapping: | 6.25W; 12.5W; 25W; 50W RMS via selector switch switchable |
| Control elements: | Level control |
| Connections: | Input: speaker via spring terminal |
| Speaker: | 1 x woofer 8" 1 x dome tweeter 1" |
| Type of speaker: | Compact cabinet speaker; on ceiling/on wall speaker |
| Color: | Black |
| Dimensions: | Width: 24 cm Depth: 24.5 cm Height: 38 cm |
| Weight: | 10.30 kg |
