2-channel DJ mixer with Bluetooth and MP3 player
- 2 input channels with gain control, 3-band equalizer and channel fader
- DJ microphone channel with level control and 2-band equalizer
- Pre-fader listening to all input channels and the master output via adjustable stereo headphones output
- Crossfader with adjustable curve and reverse function
- Master channel with level control and 6-digit stereo LED level meter, switchable between master and PFL signal
- 4 line and 2 phono inputs via RCA jacks
- Additional recording output
- Control via Bluetooth
- LCD display
- Desktop console housing
- For application areas such as: Wedding/gala/events; party room; mobile use; mobile djs / entertainer
Scope of delivery
- 1 x user manual
- 1 x power cord
- 1 x mixer
- 1 x RCA cable
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | Max. 5 W |
| Protection class: | Protection class II |
| Power connection: | Mains input via C8 (M) "figure 8" mounting version power supply cord with Euro plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >70 dB |
| THD: | <0.025 % at 1 kHz |
| Impedance: | Input: microphone 47 kOhm Input: line 47 kOhm Input: phono 47 kOhm |
| Gain: | Input: variable |
| Control: | Bluetooth |
| Bluetooth: | Version: 4.2 + EDR Profiles: A2DP, AVRCP |
| Bluetooth device name: | PM-222P |
| Audio player: | Bluetooth; USB |
| Carrier frequency: | 2.4 GHz |
| Housing color: | Black |
| Display type: | LCD display |
| Control elements: | Audio player, crossfader, cue mix function, source selector, crossfade curve switch; crossfade reverse switch |
| Status LED: | Switchable master level meter, clip, CUE, power |

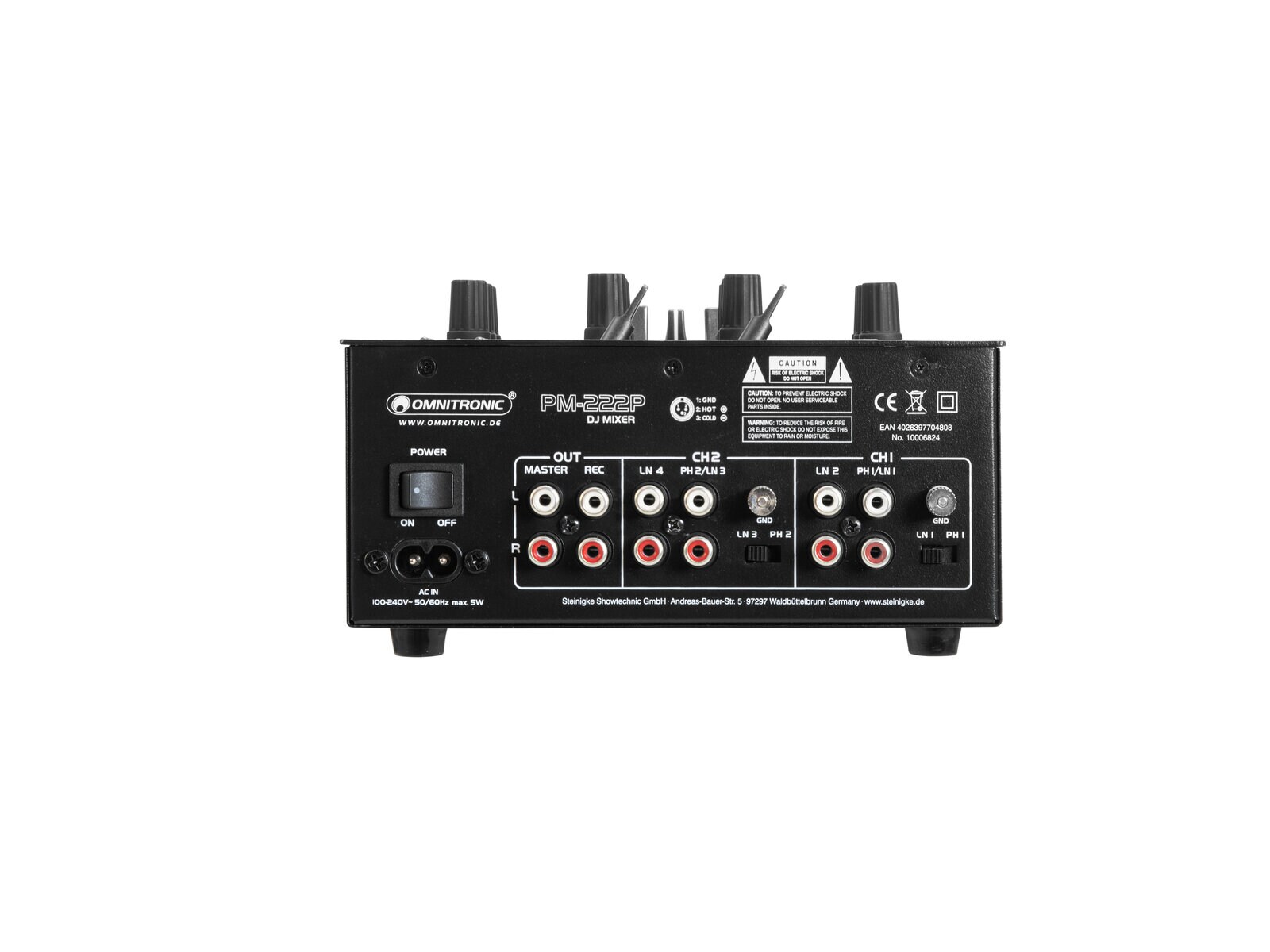

| Connections: | Input: microphone via 1 x 6.3 mm jack socket (mono) mounting version Input: line via 4 x stereo RCA Input: phono via 2 x stereo RCA Output: master via 1 x stereo RCA Output: rec. via 1 x stereo RCA Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version |
| Channels: | Input chanel: 2 x stereo with line-line-phono switch via RCA, channel control via fader, 2-band tone control EQ, gain control Microphon chanal: 1 x mono via jack, channel control via rotary dial, cue mix function Master output: 1 x stereo via RCA, channel control via rotary dial Headphones output: 1 x stereo via jack, channel control via rotary dial |
| Music format: | MP3, WAV; WMA |
| Max. level: | Output: master +19 dBu |
| USB port: | Type A |
| Material: | Steel |
| Housing design: | Desktop console housing |
| Dimensions: | Width: 19 cm Depth: 26 cm Height: 13.7 cm |
| Weight: | 2.15 kg |
| Audio player | |
| Available storage media: | USB devices max. 32GB (FAT 32) |
