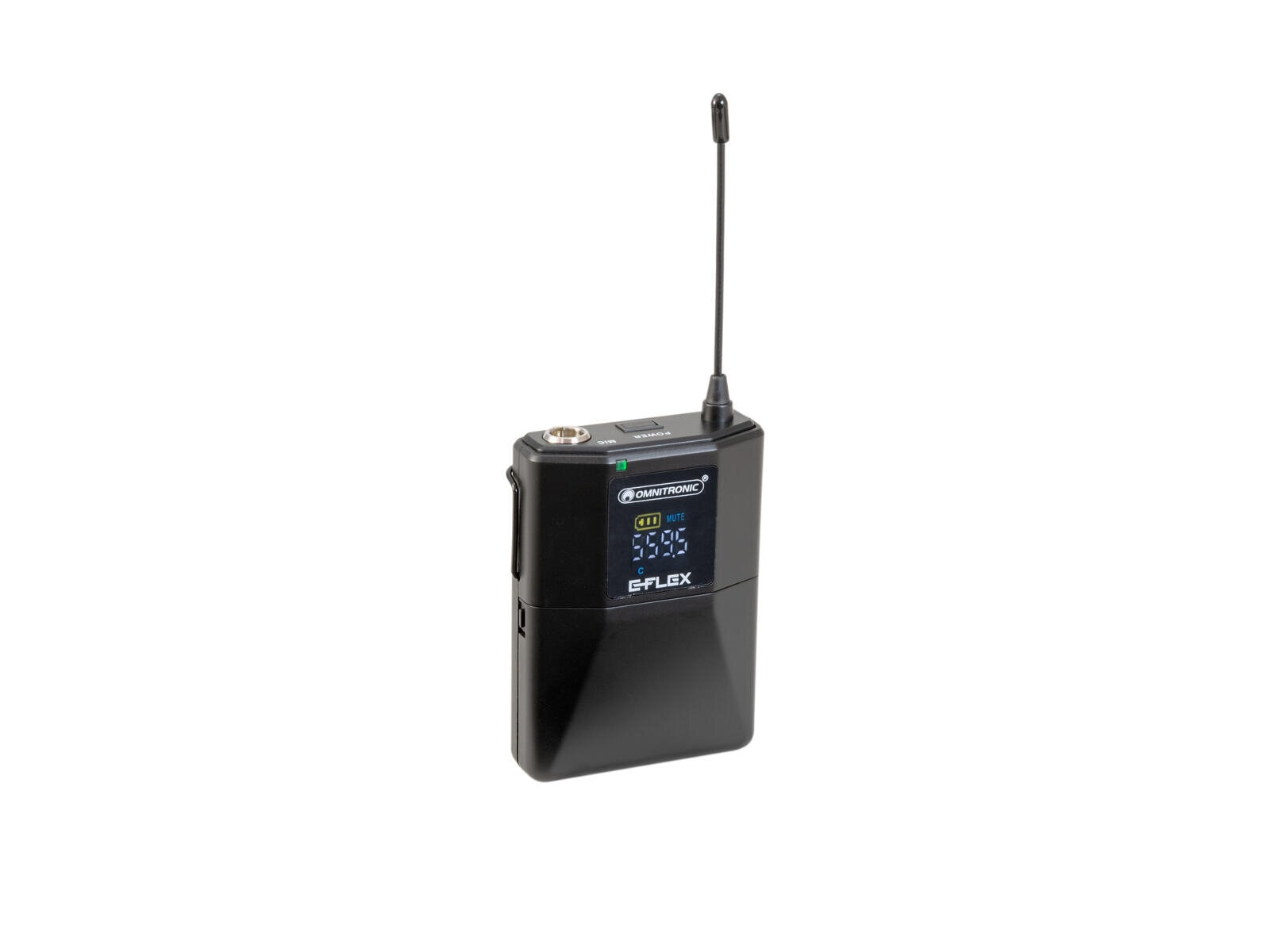

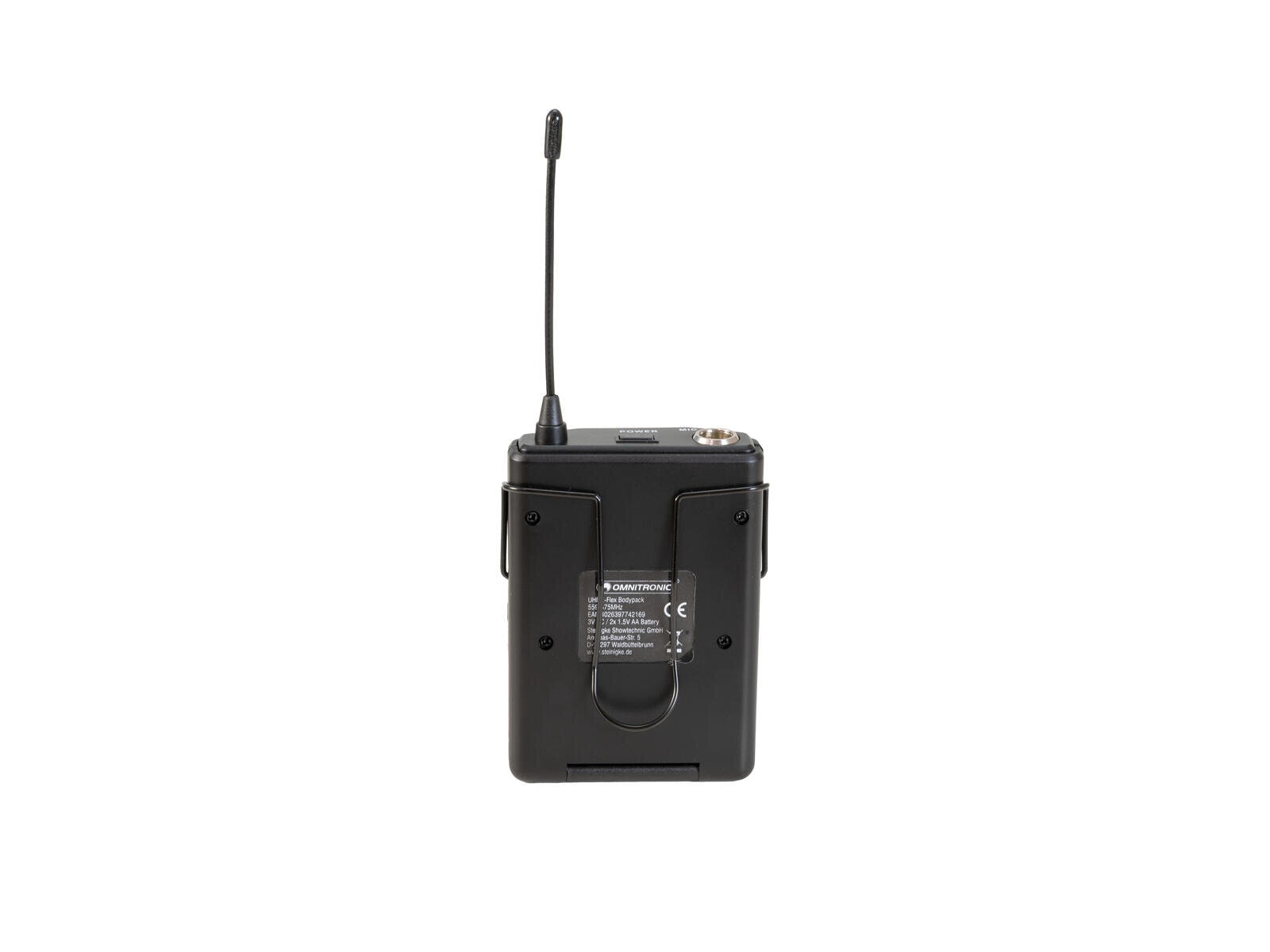

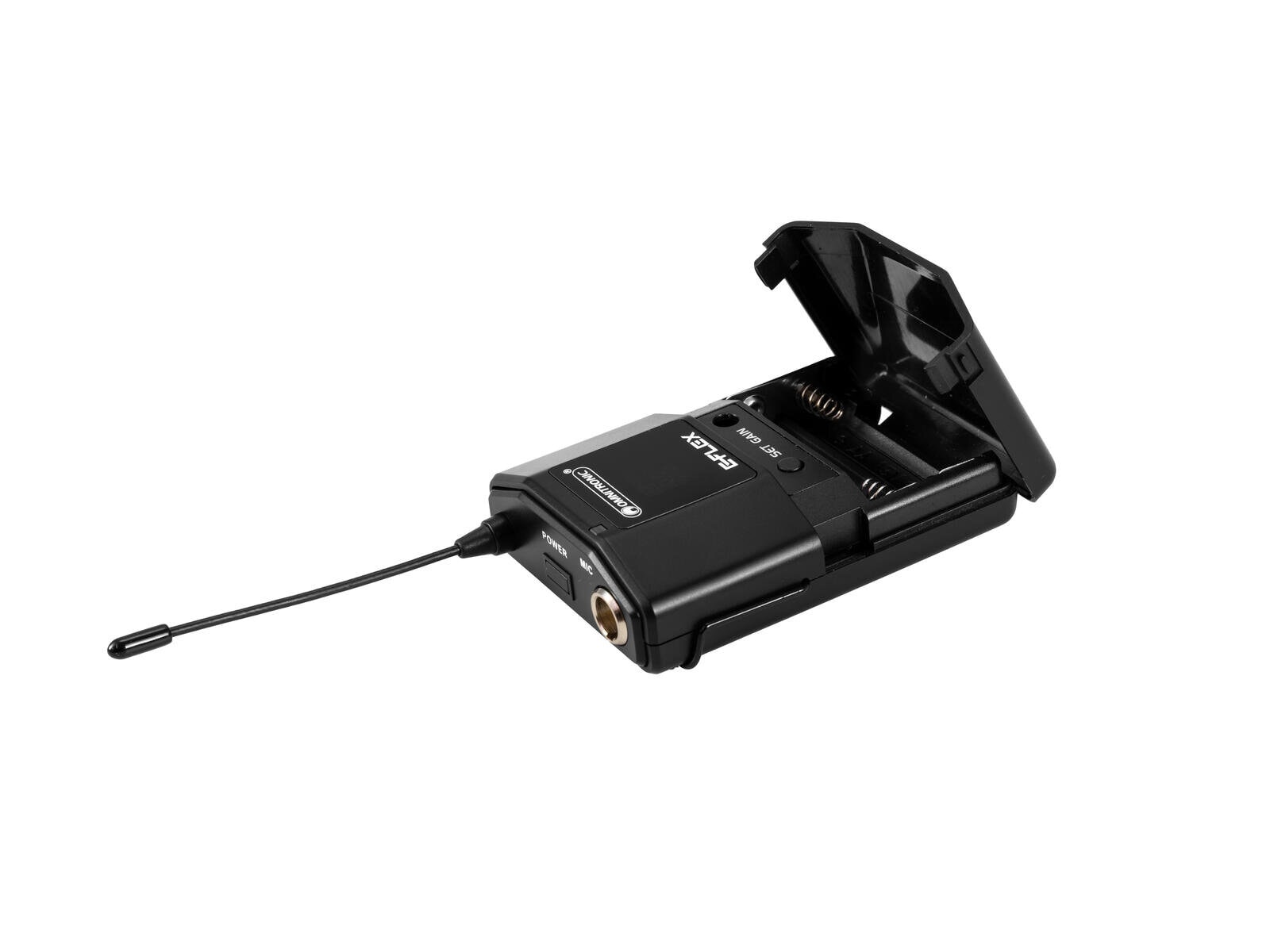

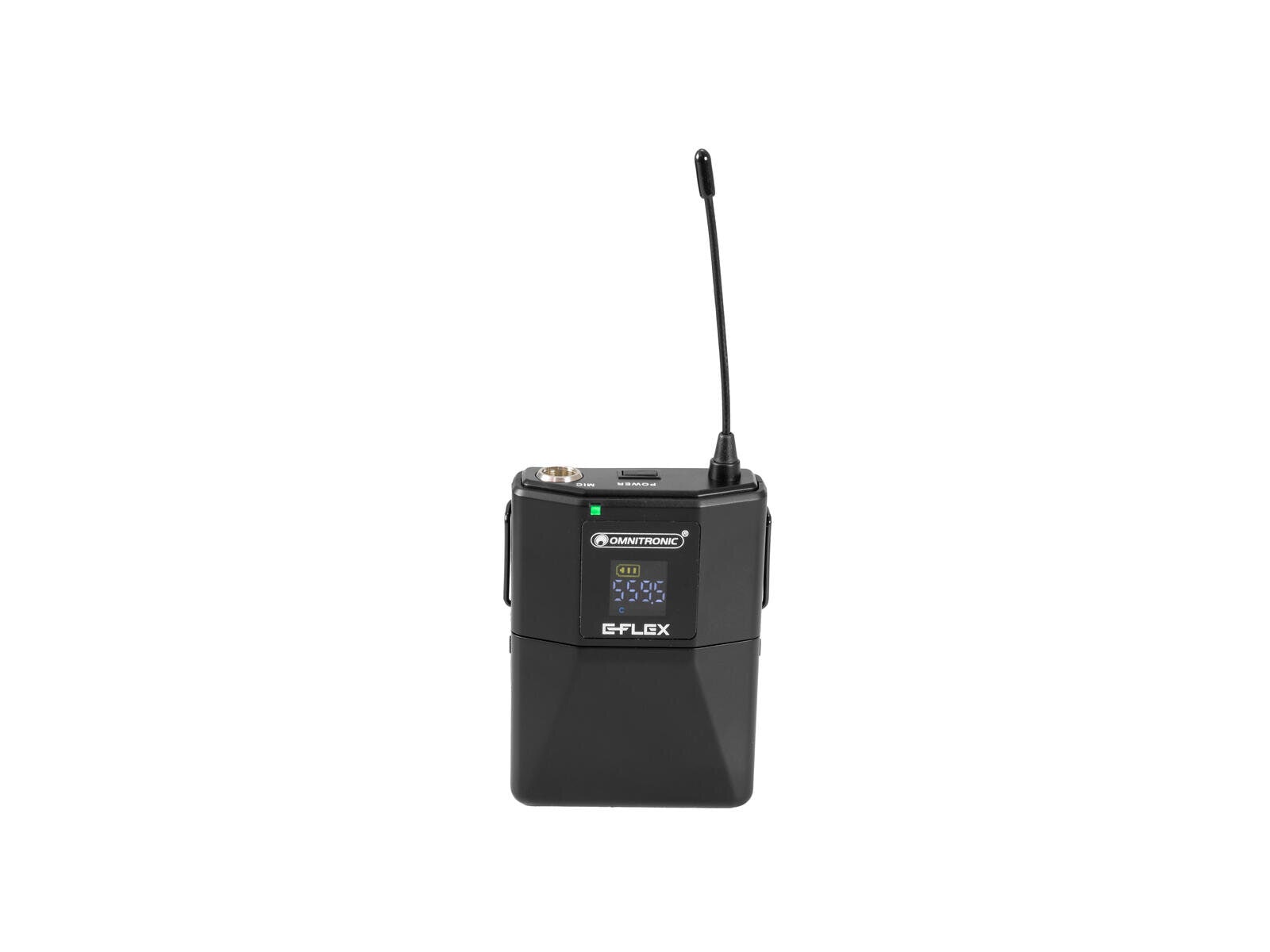

Bodypack transmitter with PLL multifrequency transmitter
- Quick pairing at the touch of a button
- Receiver automatically adopts frequency setting
- 16 channels selectable
- Sensitivity adjustable
- Operating range up to 30m with line-of-sight
- 4 digit 7-segment LED display
- Charge status indicator
Scope of delivery
- 1 x transmitter
- 1 x microphone
- 1 x user manual
- 1 x declaration of conformity
| Type: | Pocket transmitter |
| Power supply: | 3V DC |
| Power connection: | Battery/battery pack |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 50 - 15000 Hz |
| Range: | Range up to 30m with line-of-sight |
| Frequency band: | UHF 559 - 575 MHz |
| RF power output: | 10 mW |
| Modulation: | FM |
| Frequency selection: | 16 switchable frequencies In 2 groups |
| Connector type: | Mini XLR (M) 3-pin mounting version |
| Display type: | 4 digit 7-segment LED display |
| Display: | Charge status indicator , channel , frequency , Mute |
| Control elements: | Sensitivity rotary dial, frequency selector switch |
| Status LED: | Power |
| Switch: | On/off/mute switch |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Width: 6.9 cm Depth: 2.5 cm Height: 9.4 cm |
| Weight: | 0.11 kg |
