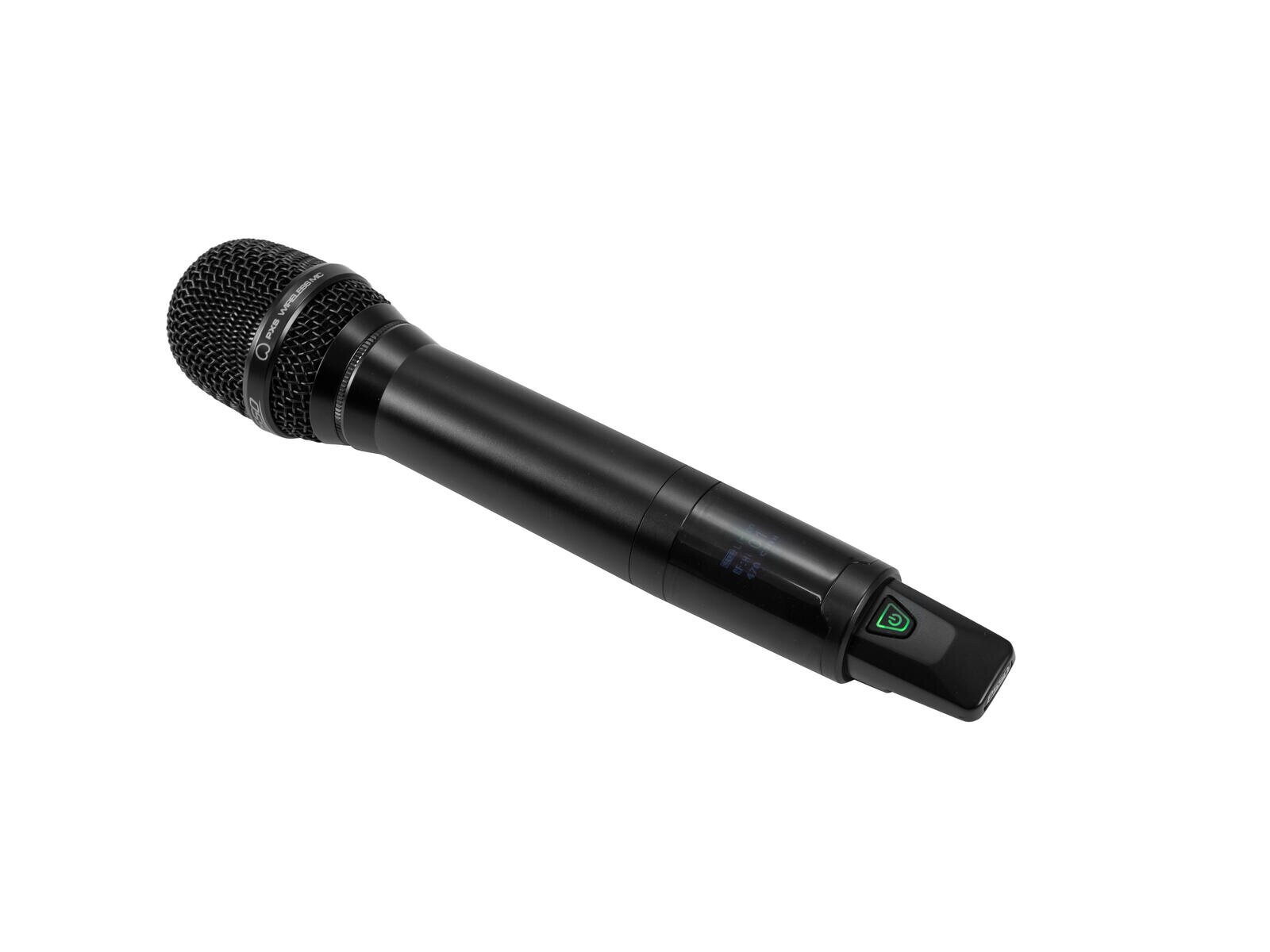

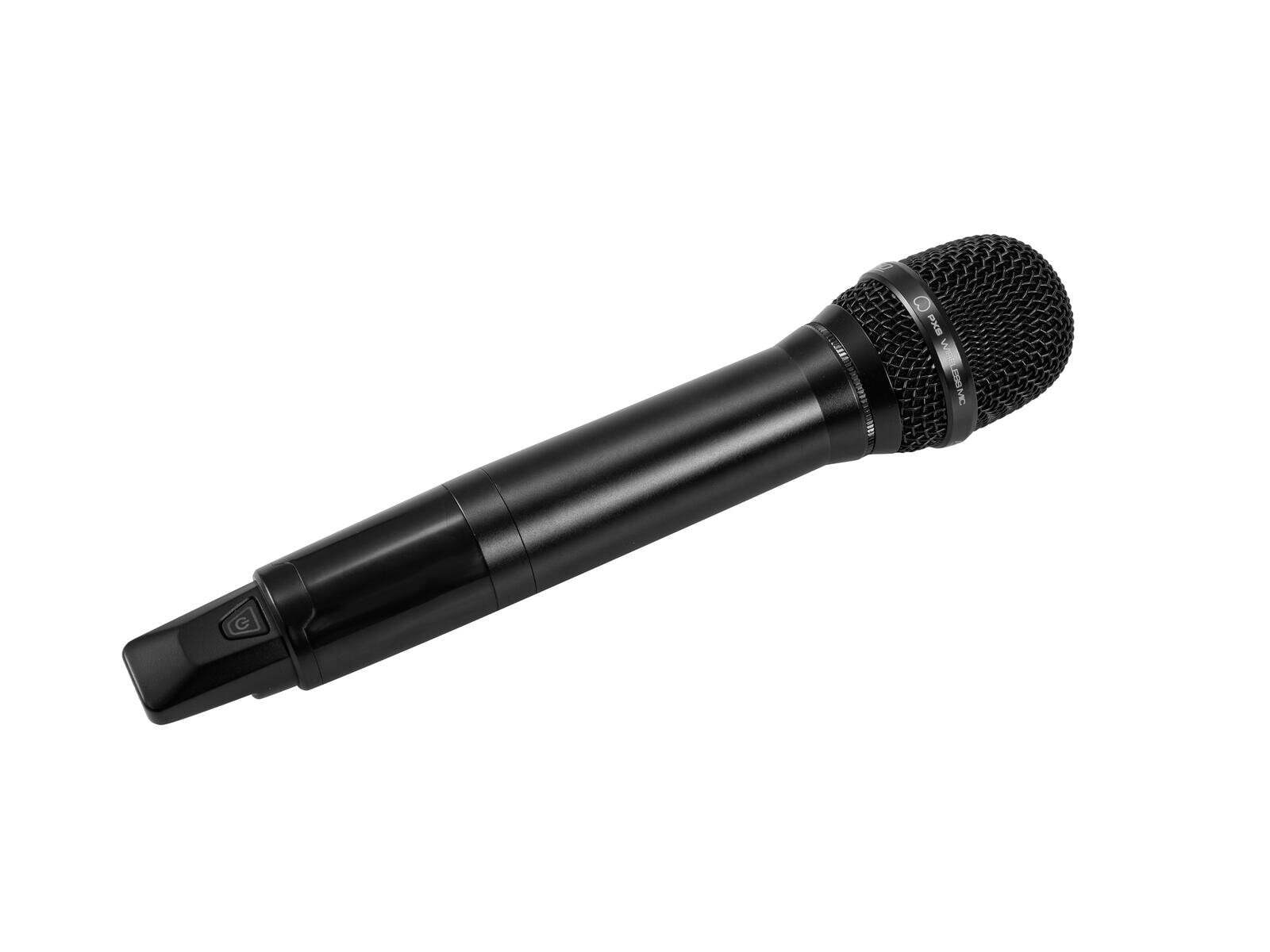

Hand-held microphone with battery pack for PXS receivers
- Dynamic hand-held microphone with UHF pilot tone technology (PLL)
- Rugged metal housing
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- Polar pattern: Cardioid
- Cordless, flexible and versatile
- Battery operation up to 10h
- Powered by a battery/battery pack
- Operating range up to 200m with line-of-sight
- Up to 28 transmitters can be operated in parallel without interference

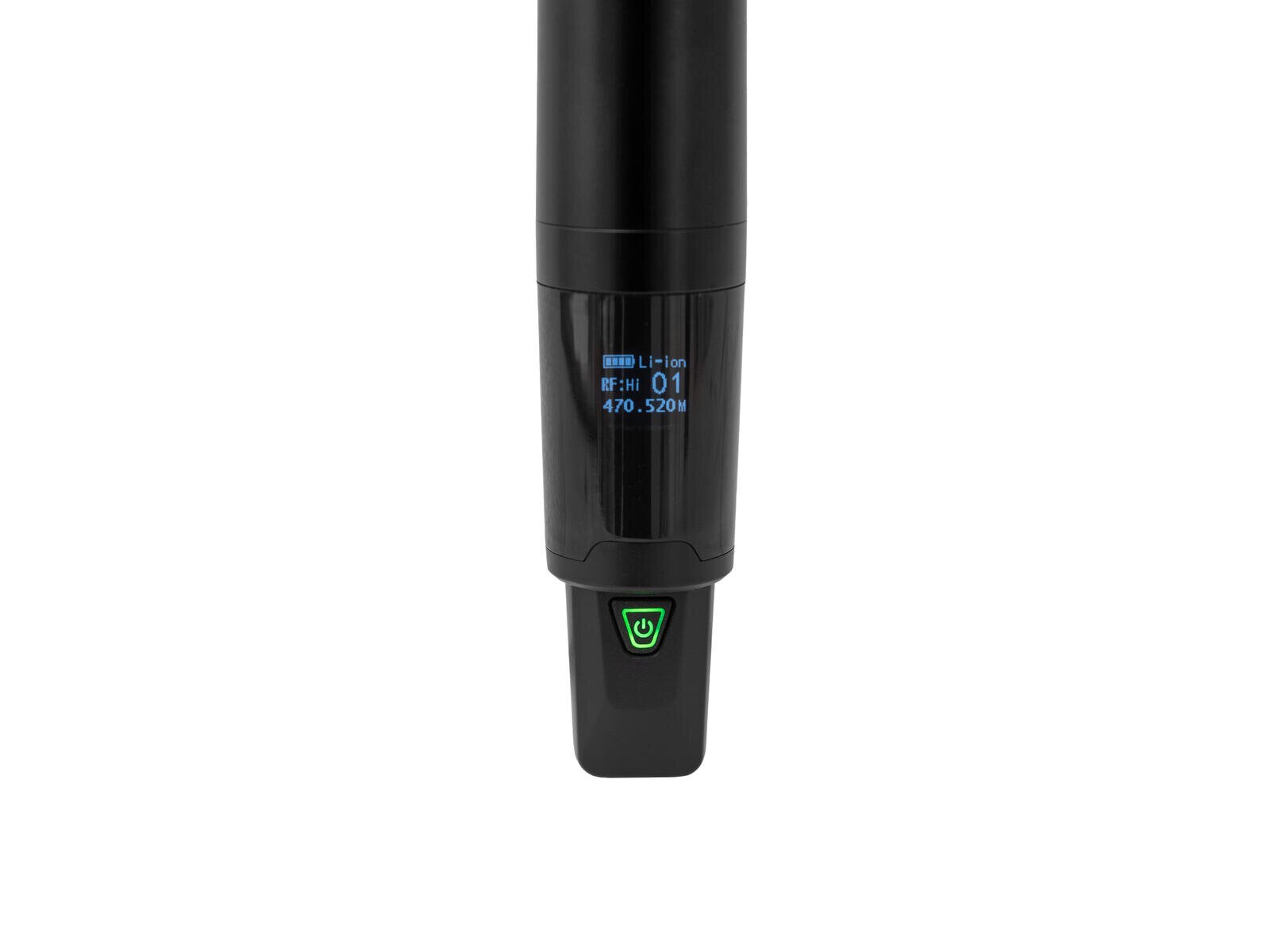

- OLED display
- Charge status indicator
Scope of delivery
- 1 x transmitter
- 2 x battery pack
- 1 x user manual
- 1 x declaration of conformity
| Type: | Hand-held transmitter |
| Power connection: | Battery/battery pack built-in Mains input via USB C (W) mounting version |
| Capsule type: | Dynamic Size: Ø 2.54 mm |
| Polar pattern: | Cardioid |
| Battery pack type: | 1 x lithium ion 3.7 V, 1000 mAh, 3.7 Wh |
| Battery pack: | Battery operation up to 10h Recharging time 3h |
| Battery: | 1 x Mignon (AA) (not included) |
| Frequency range: | 35 - 19000 Hz |
| Range: | Range up to 200m with line-of-sight |
| Frequency band: | UHF 470 - 510 MHz |
| Switching bandwidth: | 40 MHz |
| Parallel mode: | Max. 28 transmitter |
| RF power output: | 20 mW (LO); 30 mW (HI) |
| Housing color: | Black |
| Display type: | OLED display |
| Display: | Frequency , charge status indicator , Mute , RF signal level |
| Control elements: | Transmitter power switch (high-low) |
| Switch: | On/off/mute switch |
| Material: | Metal |
| Dimensions: | Length: 25.5 cm Diameter: Ø 5.0 cm |
| Weight: | 0.29 kg |
