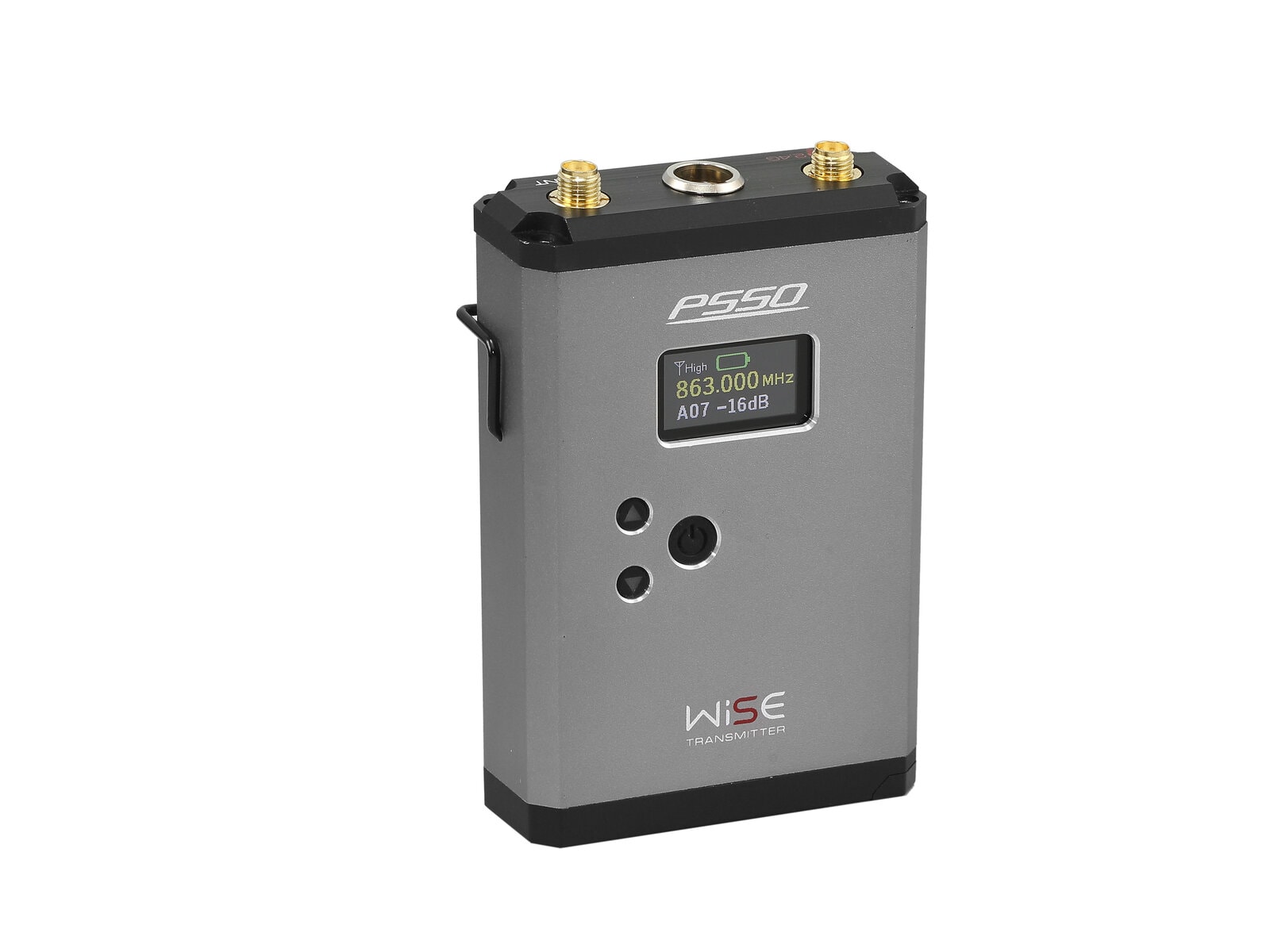

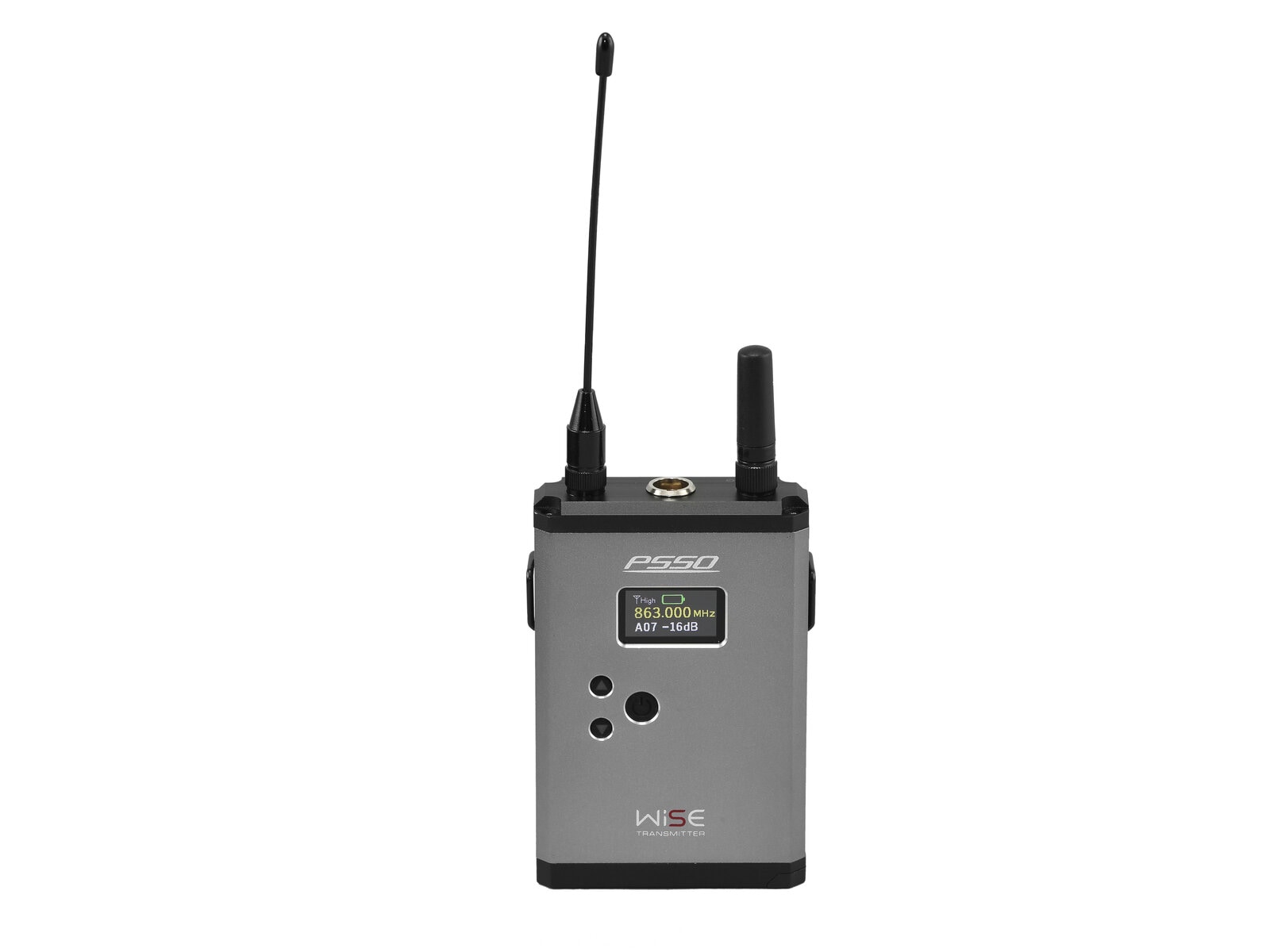

Bodypack transmitter with PLL multifrequency transmitter
- 2.4 GHz iSync - real-time synchronization and monitoring
- Editable user name and user color
- RF output switchable
- Gain level adjustable
- Lock function for prevents undesired changes to settings
- Operating range up to 60m with line-of-sight
- UHF 638 - 668 MHz License-free and approved in large parts of Europe
- Multicolor LCD display
Scope of delivery
- 1 x transmitter
- 2 x antenna
- 1 x user manual
- 1 x declaration of conformity
| Type: | Pocket transmitter |
| Power supply: | 3V DC |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 50 - 18000 Hz |
| Gain: | -32 dB to +4 dB |
| Range: | Range up to 60m with line-of-sight |
| Frequency band: | UHF 638 - 668 MHz |
| RF power output: | 50 mW; 30 mW; 10 mW |
| Modulation: | FM |
| Display type: | Multicolor LCD display |
| Control elements: | Menu, navigation keys |
| Connections: | Microphone via 1 x Mini XLR (F) 3-pin 5 V |
| Color code: | Color indicator and name adjustable |
| Switch: | On/off switch; mute control |
| Material: | Metal |
| Color: | Grey |
| Dimensions: | Width: 7 cm Depth: 3 cm Height: 13 cm |
| Weight: | 0.19 kg |
