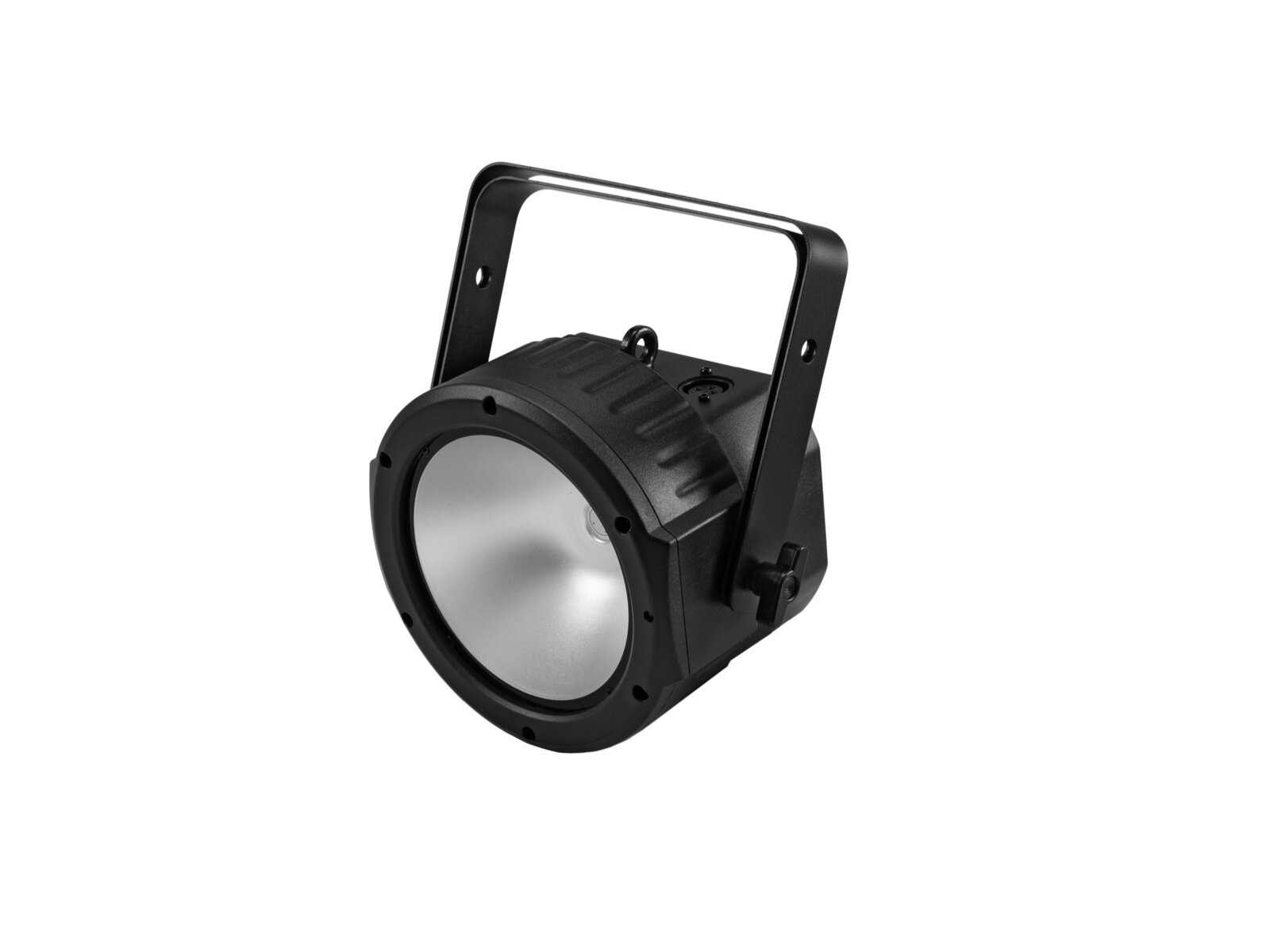

LED floor spot with RGBW color mixing, incl. IR remote control

• DMX and power terminals intelligently designed for easy wiring
• 1 powerful LED 30 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
• Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
• Multi beam effect; Strobe effect
• 5 integrated show programs
• Direct color selection for 18 preset colors
• The device is cooled by cooling fan
• Control via IR remote control; DMX; stand-alone; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• Flicker-free
• With a beam angle of 18°
• With double bracket

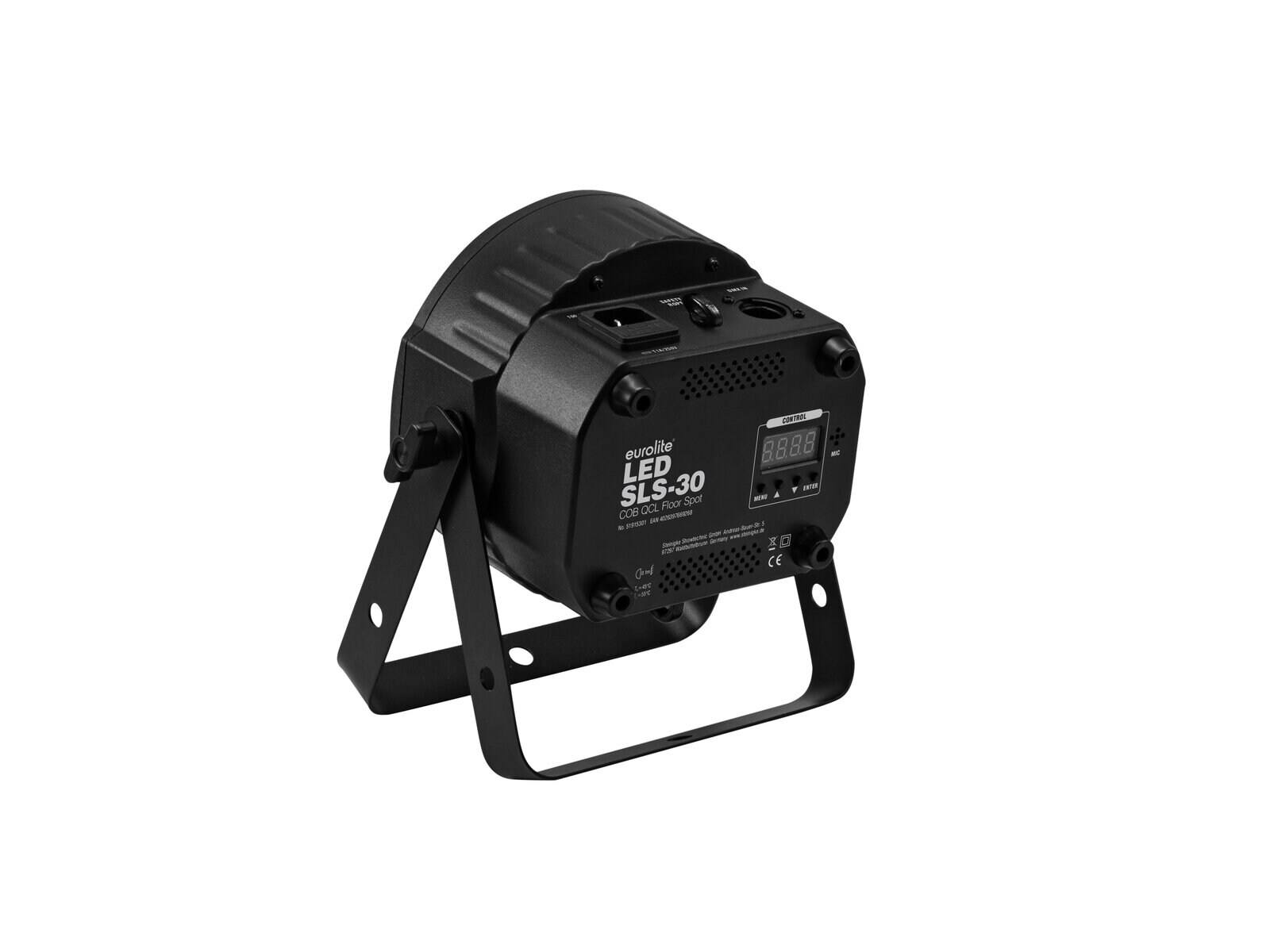

• 4 digit 7-segment LED display
• Preprogrammed in LED PC-Control 512; EASY SHOW 1; Light´J; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
• Mains input and output for power linking up to 8 units

Package contents

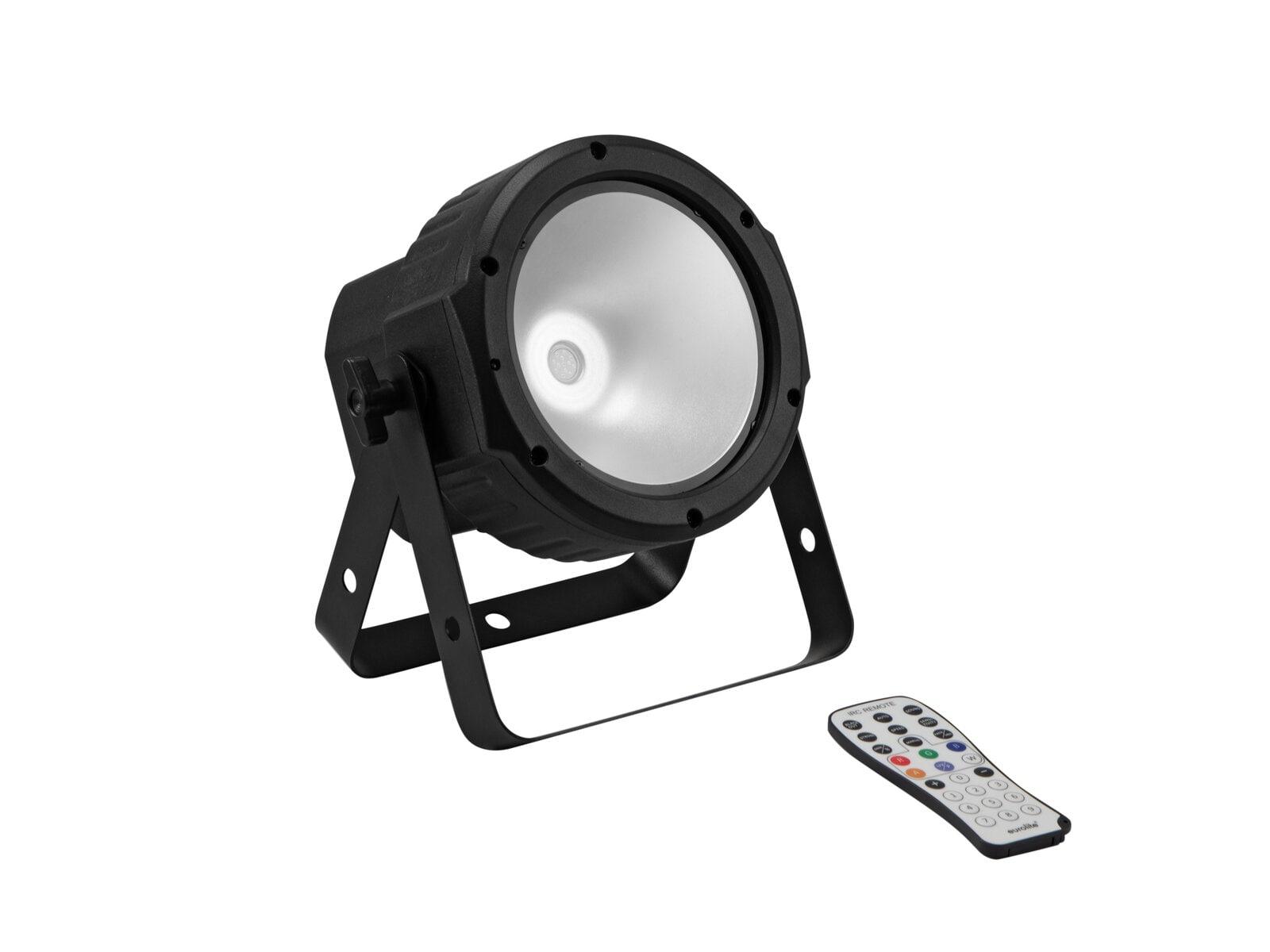

• 1 x spotlight, 1 x power cord, 1 x remote control, 1 x battery, 1 x user manual

Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
25 W
IP classification:
IP20
Protection class:
Protection class II

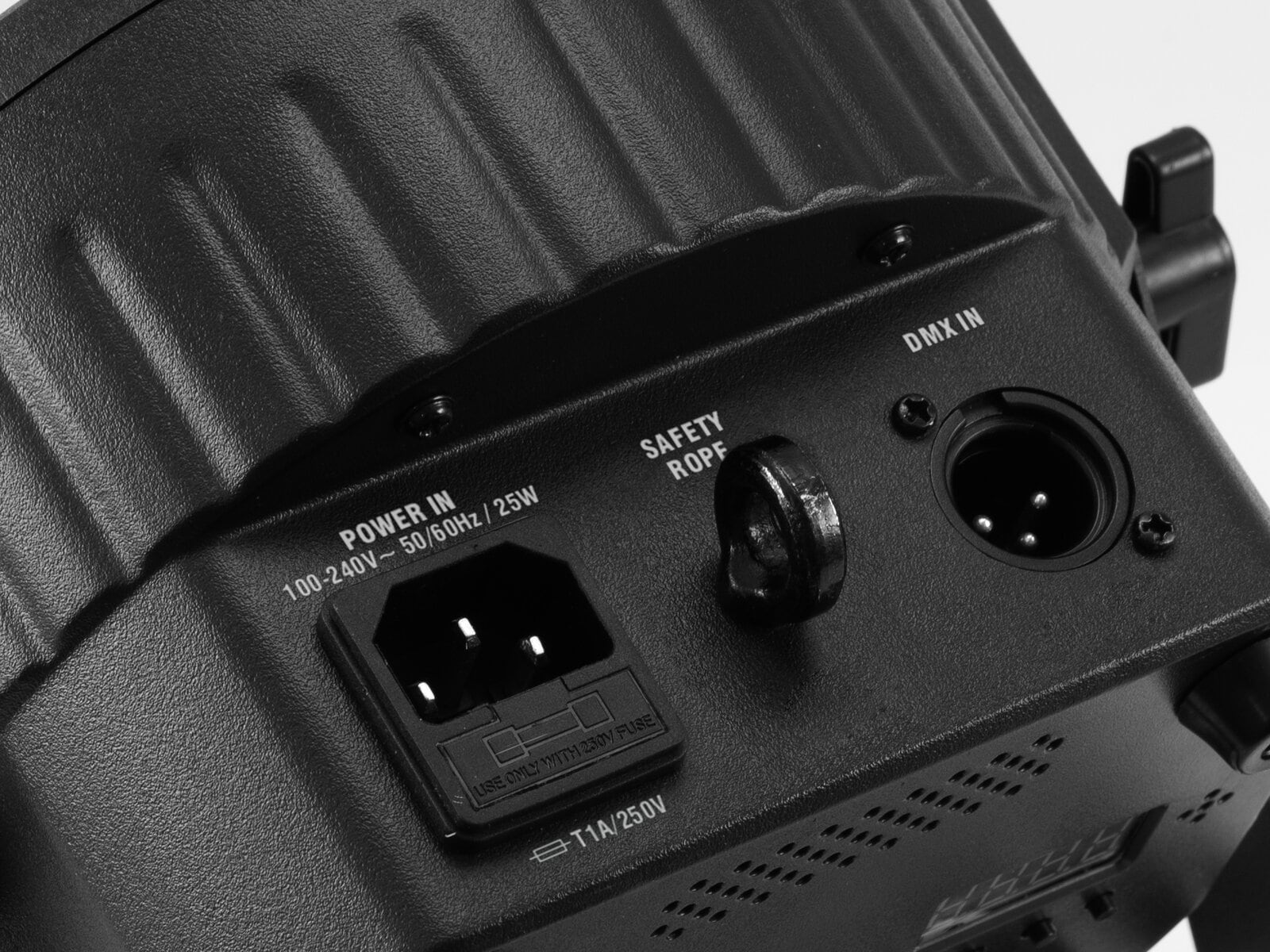

Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug included

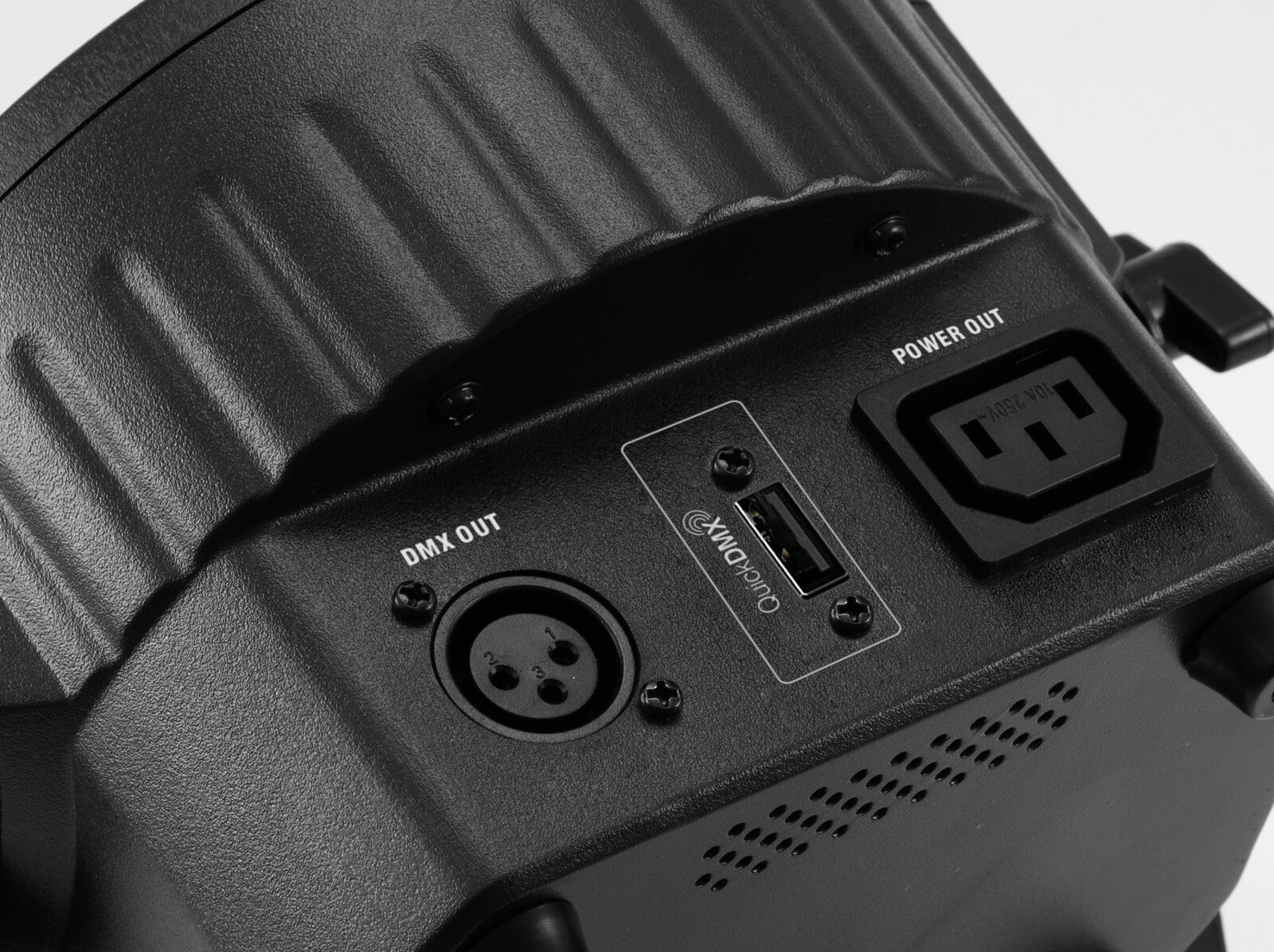

Power output:
IEC connector (F) mounting version
Fuse:
T 1 A Fuse replaceable
Lamp type:
LED lamp
LED:
1 x 30 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
Flash rate:
0 - 20 Hz
DMX channels:
3; 4; 5; 6; 9
DMX input:
3-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version
Cooling:
1 x cooling fan
Control:
IR remote control; DMX; stand-alone; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:
LED PC-Control 512; EASY SHOW 1; Light´J; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
Beam angle:
18°
Beam angle (1/2 peak):
18°
Beam angle (1/10 peak):
65°
Housing color:
Black
Attachment system:
Double bracket

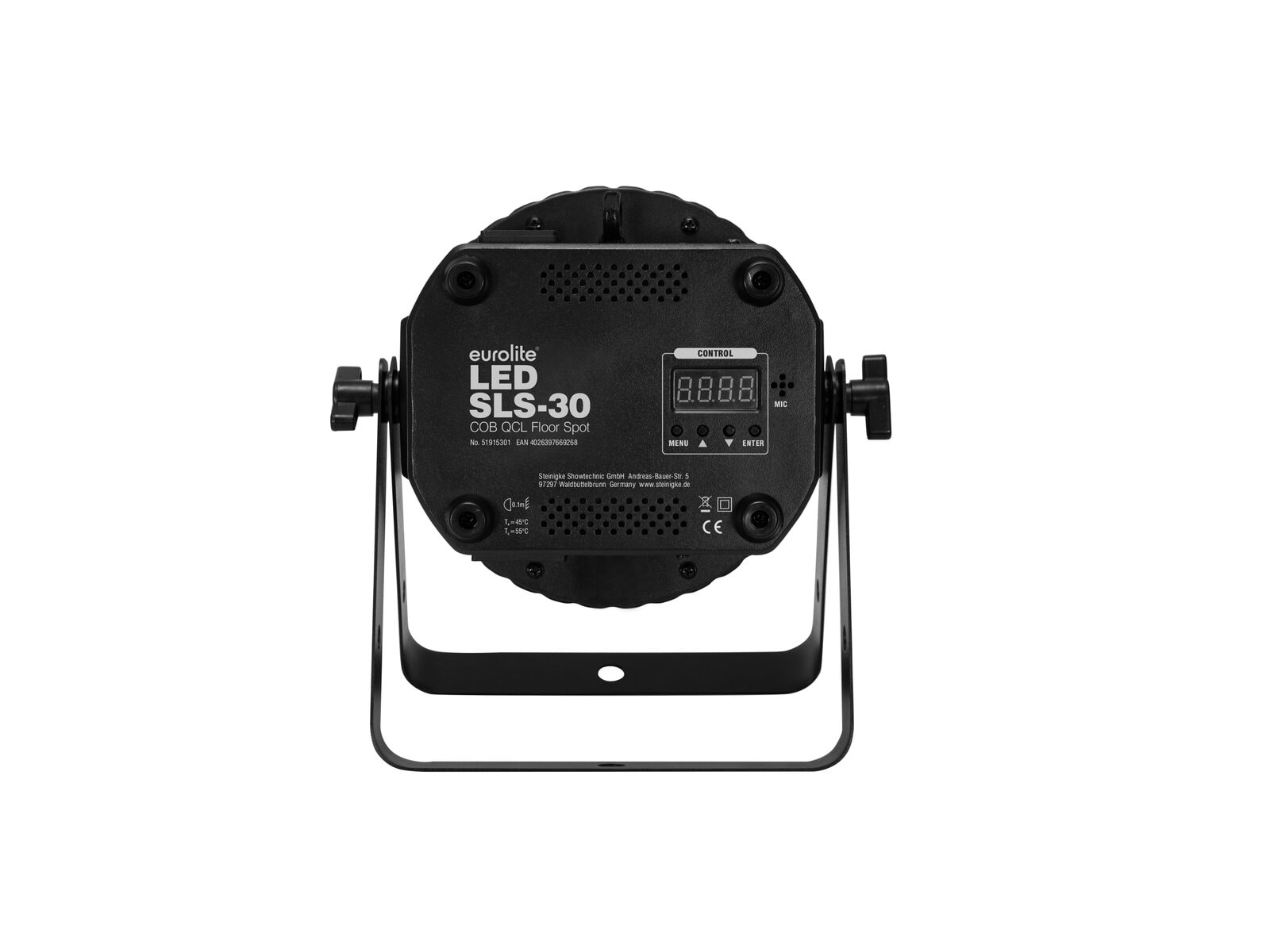

Display type:
4 digit 7-segment LED display
Material:
Plastic
Dimensions:
Width: 21,5 cm
Depth: 12,7 cm
Height: 22,85 cm
Weight:
1,10 kg
Noise classification:
Class 3 (clearly perceptible sounds)
Photobiological safety:
Risk Group 0
Power cord
Cable construction:
3 x 0,75 mm² H05VV-F
Cable length:
Approx. 1,2 m
Mounting bracket
Diameter mounting holes:
1 x Ø11mm; 2 x Ø10mm
Material:
Metal, 1,5 mm
Remote control
Battery:
1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
