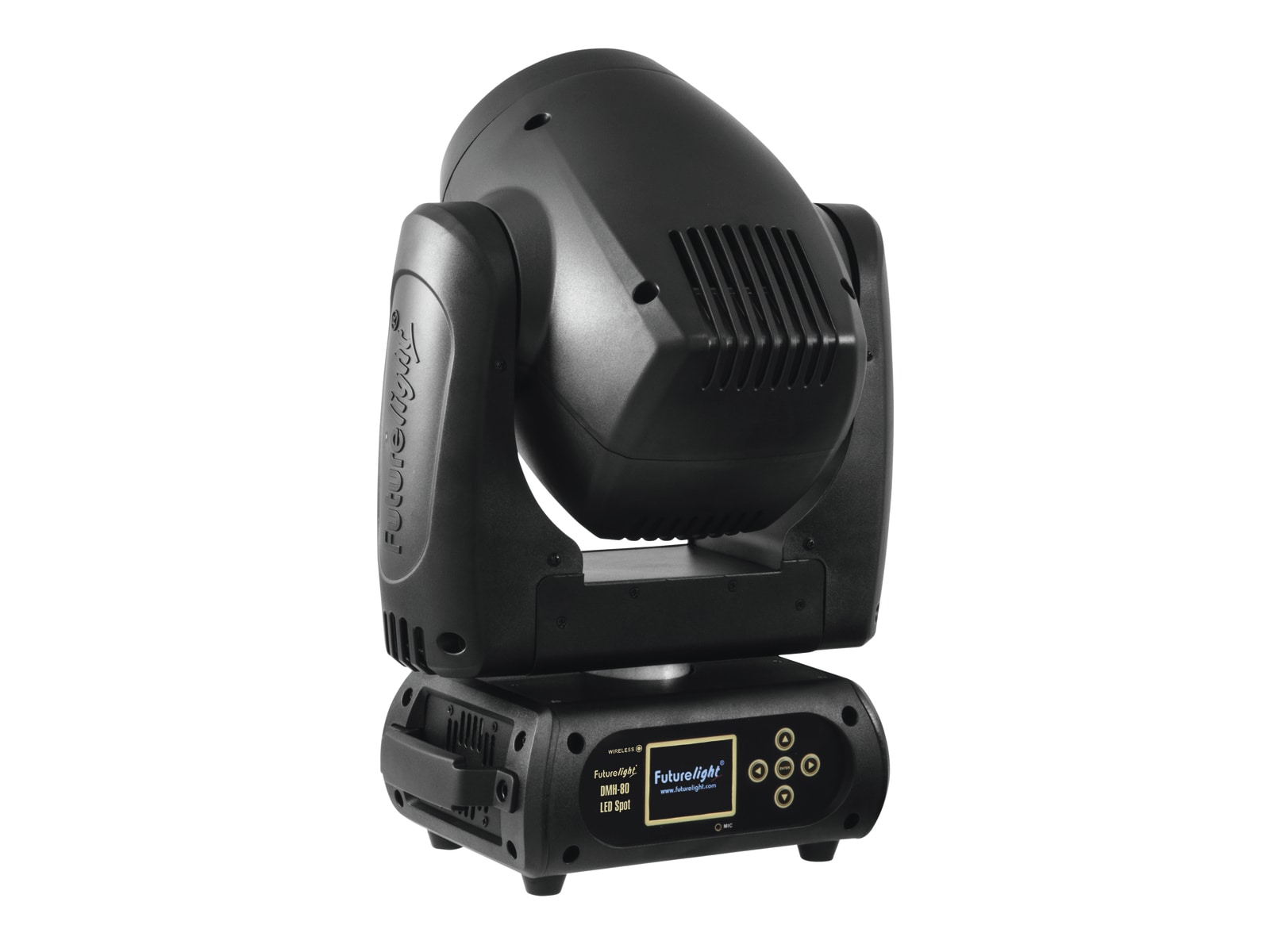

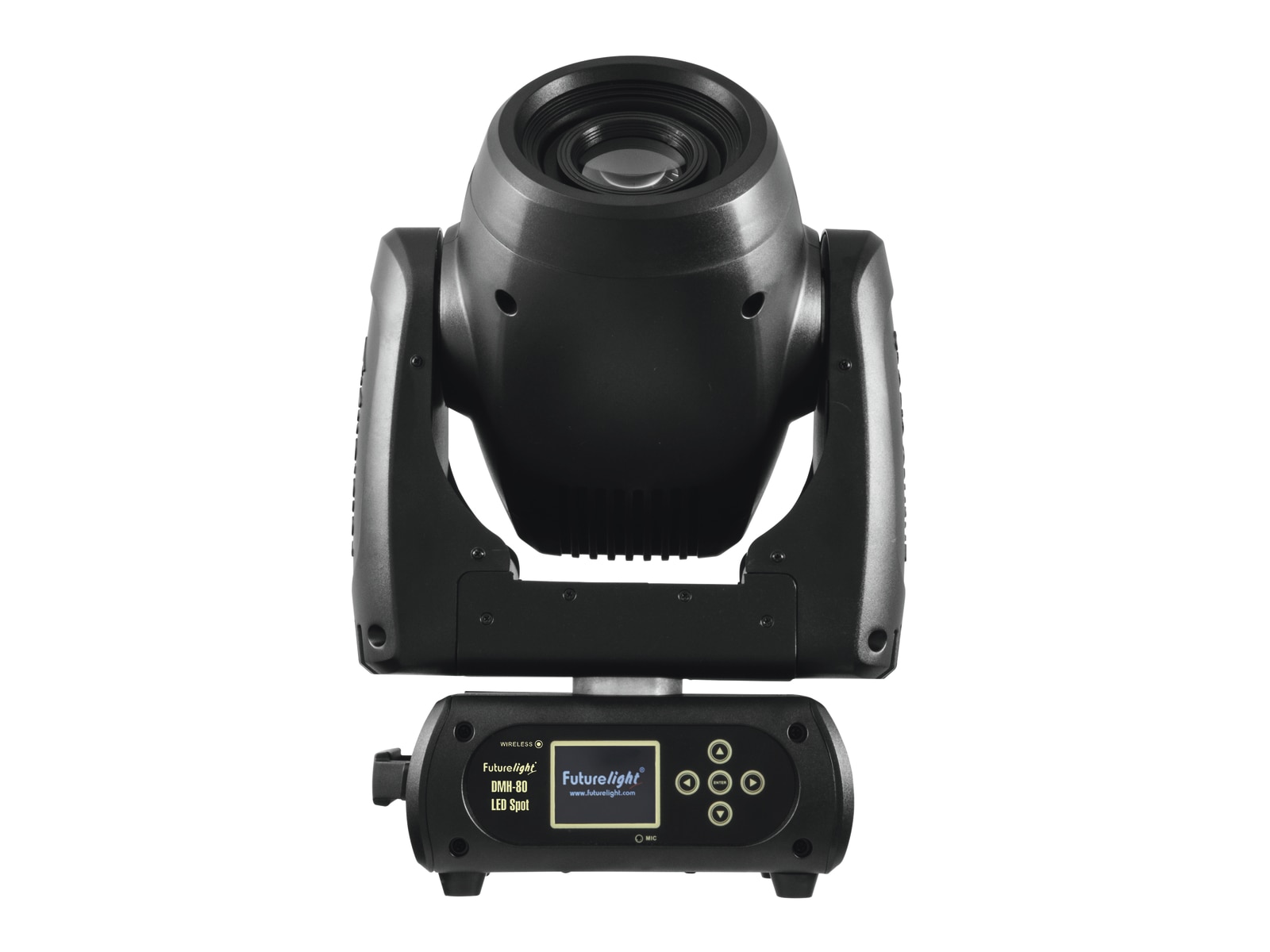

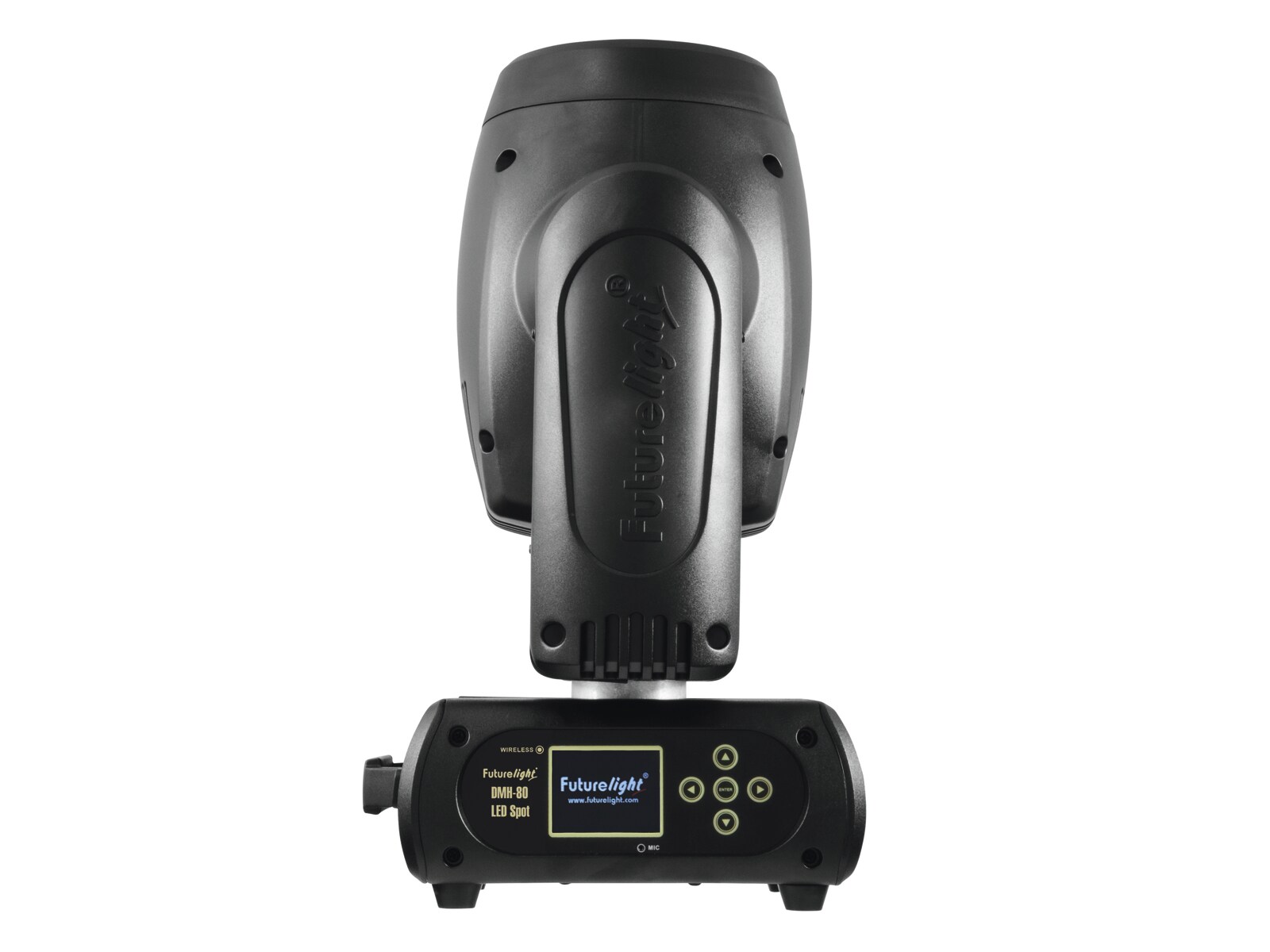

FUTURELIGHT DMH-80 LED Spot

Art nr:51841841
14 218 kr

I lager / Leveranstid ca. 4-8 vardagar

  • ✓ Trygga betalsätt
  • ✓ 30 dagar ångerrätt

Produktbeskrivning

PRO moving-head with 75 W LED and unique 16-facet prism

  • High PAN/TILT speed
  • Number of scenes can be changed individually
  • The scenes can be modified via the Control Board or via an external controller and loaded into the memory
  • 1 powerful LED 75 W COB (chip-on-board) cold white (CW)
  • Positioning within 540° PAN and 270° TILT
  • PAN angle switchable between 540° and 630°
  • Auto position correction (feedback)
  • Exact positioning (16 bit resolution)
  • Gobo wheel with rotating gobos; Prism 16-fold rotating; Focus motor-driven
  • Gobo effect; beam effect; Strobe effect
  • Color wheel with 8 dichroic filters plus open
    half colors selectable, Rainbow effect with adjustable speed in both directions
  • Gobo wheel with rotating gobos, 7 gobos and open
    shake effect
  • Gobos changeable
  • Slot-in gobo system for easy gobo replacement
  • The device is cooled by temperature-controlled fan
  • Control via stand-alone; DMX; RDM; Sound to light via Microphone; W-DMX by wireless solution upgradeable
  • With a beam angle of 10° - 16°
  • Multicolor LCD display
  • Dimmer electronic
  • Preprogrammed in LED PC-Control 512; Light Captain

Package contents

  • 1 x moving light, 1 x user manual, 1 x power cord, 1 x declaration of conformity, 1 x xLR cable, 1 x omega bracket


Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
135 W
IP classification:
IP20

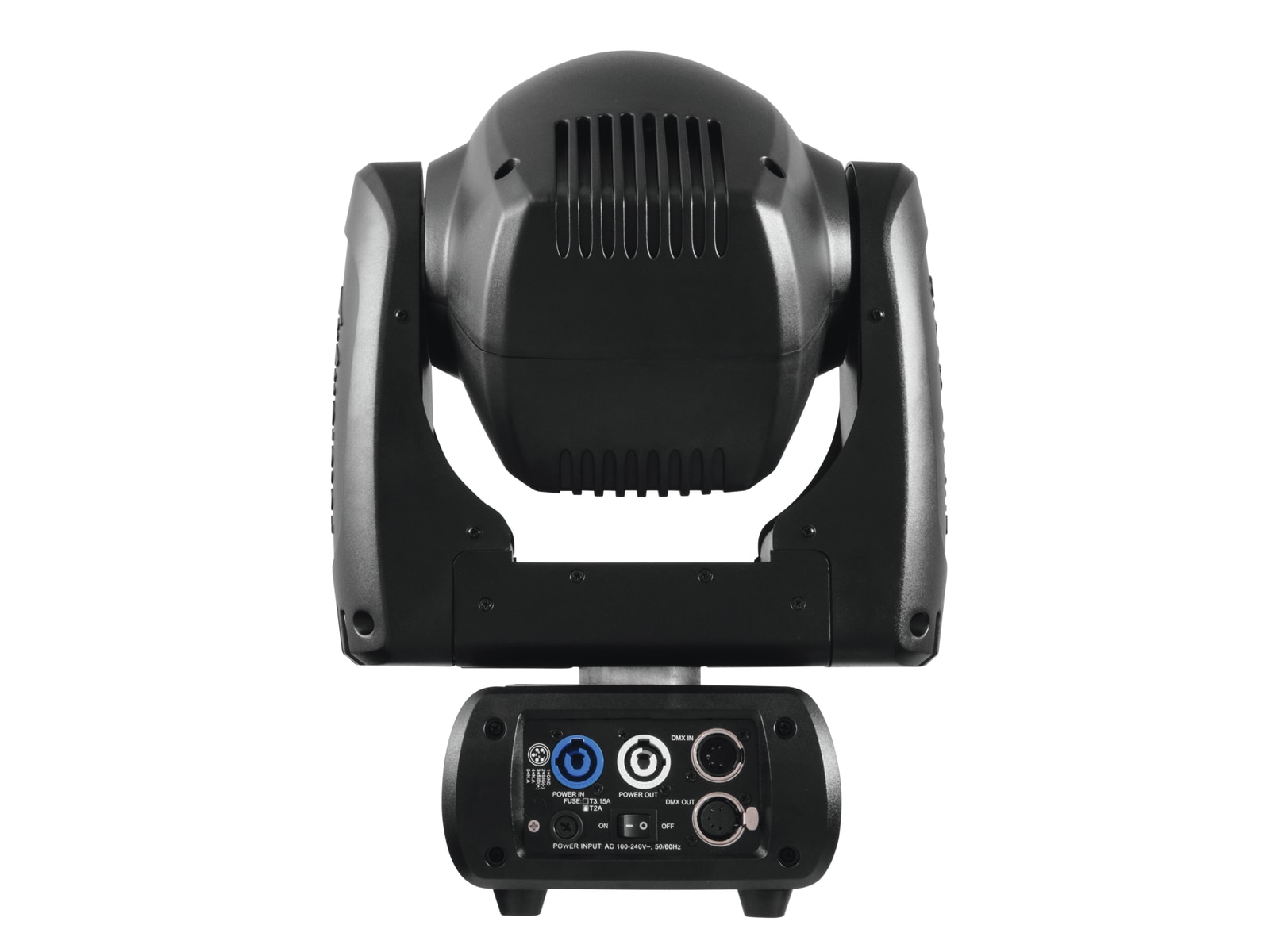

Power connection:
Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:
1 x PowerCON (gray), mounting version
Lamp type:
LED lamp
LED:
1 x 75 W COB (chip-on-board) cold white (CW)
Max. TILT movement:
270° Exact positioning (16 bit resolution) Auto position correction (feedback)
Max. PAN movement:
540°, 630° Exact positioning (16 bit resolution) Auto position correction (feedback)
Equipment:
Gobo wheel with rotating gobos; Prism 16-fold rotating; Focus motor-driven
Color generation:
Color wheel with 8 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:
Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 24mm
Image diameter 19mm
Shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
DMX channels:
11; 13; 17; 18
DMX input:
1 x 5-pin XLR (M) mounting version
DMX output:
1 x 5-pin XLR (F) mounting version
Cooling:
Temperature-controlled fan
Control:
Stand-alone; DMX; RDM; Sound to light via Microphone; W-DMX by wireless solution upgradeable
Preprogrammed in:
LED PC-Control 512; Light Captain
Beam angle:
10° - 16°
Beam angle (1/2 peak):
10 - 16°
Beam angle (1/10 peak):
10 - 16°
Illuminance in Lux (lx):
Narrow cold white (CW) 3m: 8334 lx, 6m: 2169 lx
Wide cold white (CW) 3m: 5211 lx, 6m: 1339 lx
Housing color:
Black
Display type:
Multicolor LCD display
Dimensions:
Width: 29,9 cm
Depth: 25,2 cm
Height: 39,8 cm
Weight:
9,55 kg
Noise classification:
Class 2 (slight noise)
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
