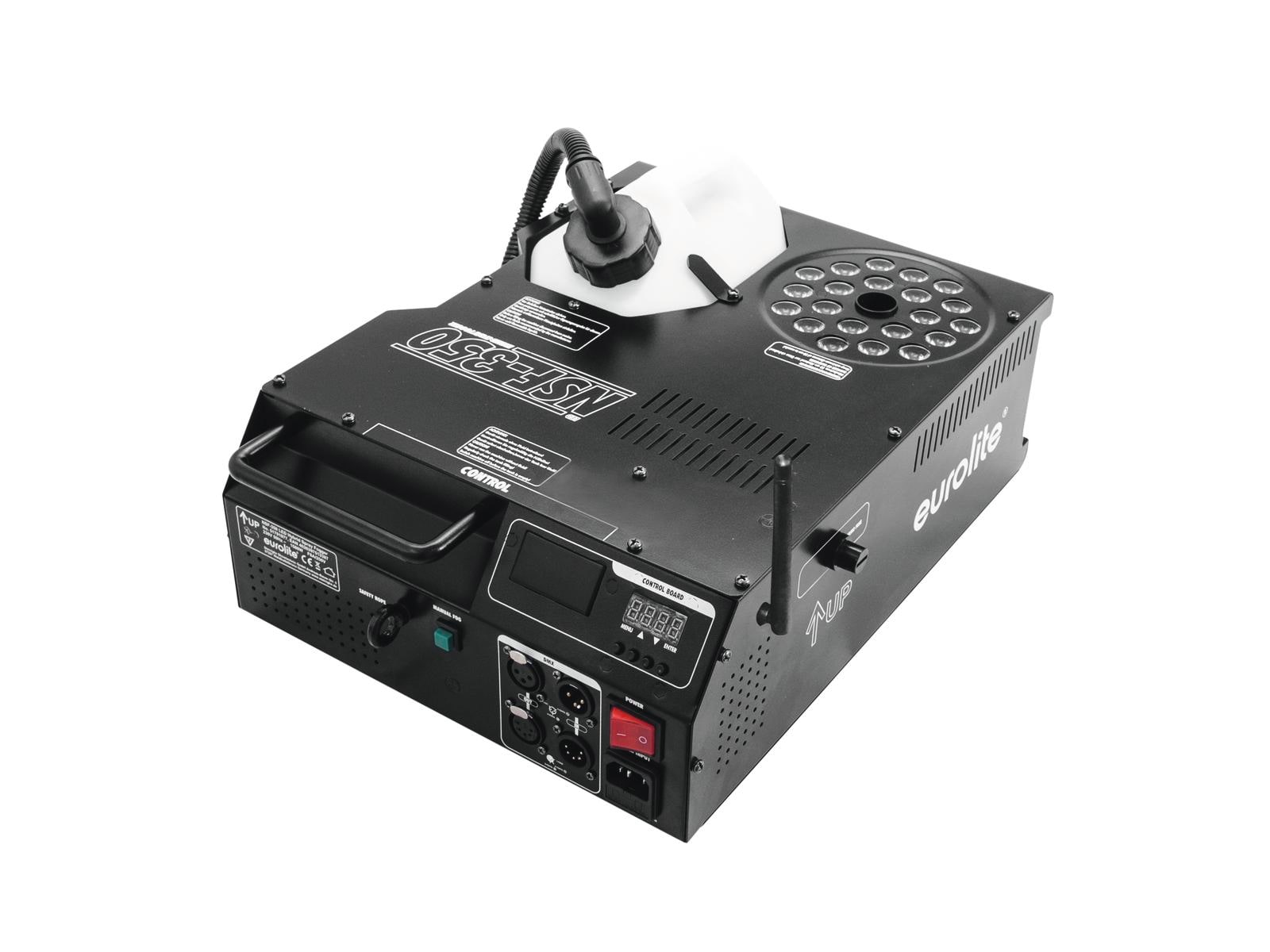

DMX fog machine with 1500 W, LED illumination, vertical fog output

• LED light effect with fog spouter in one device

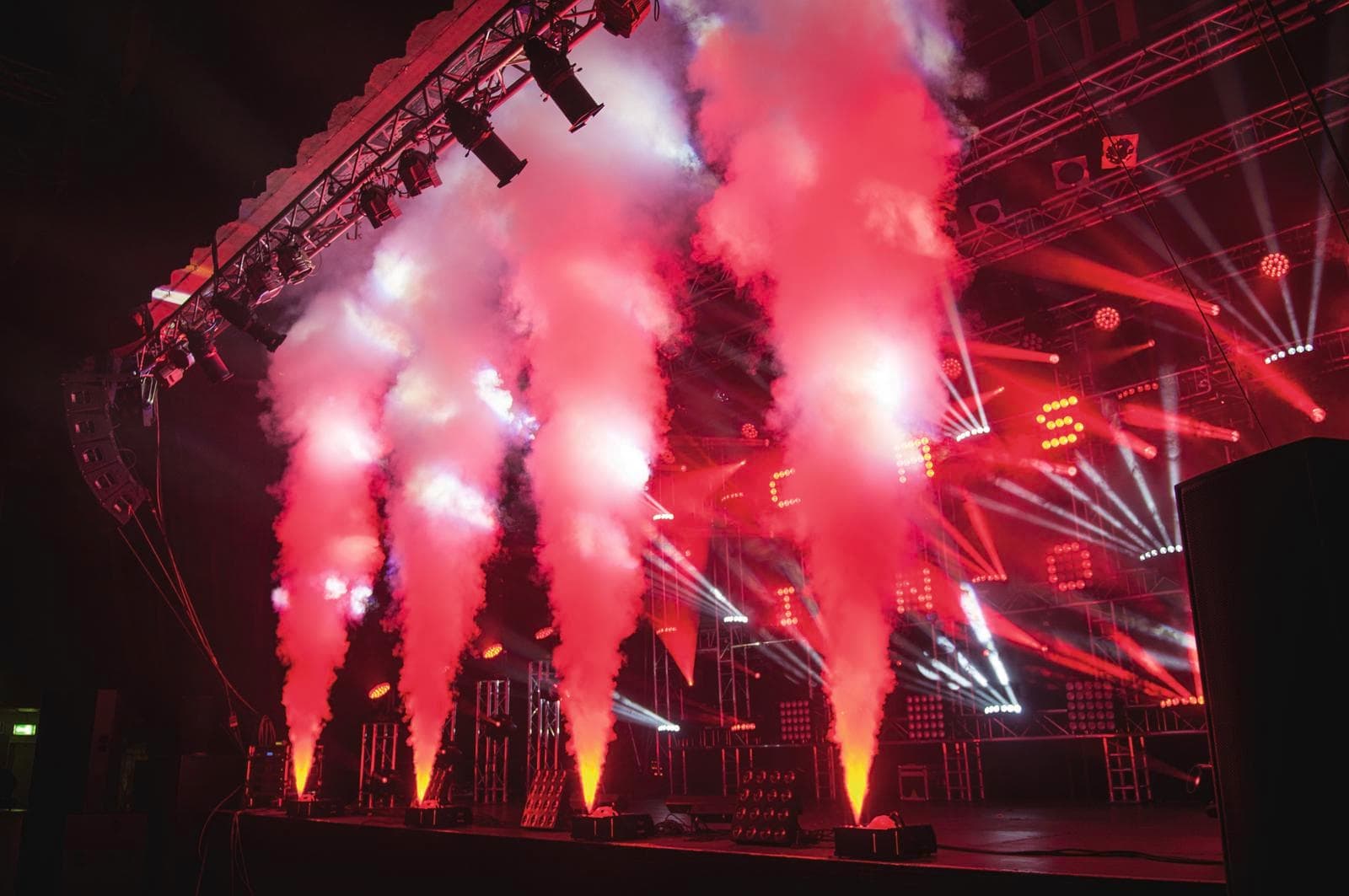

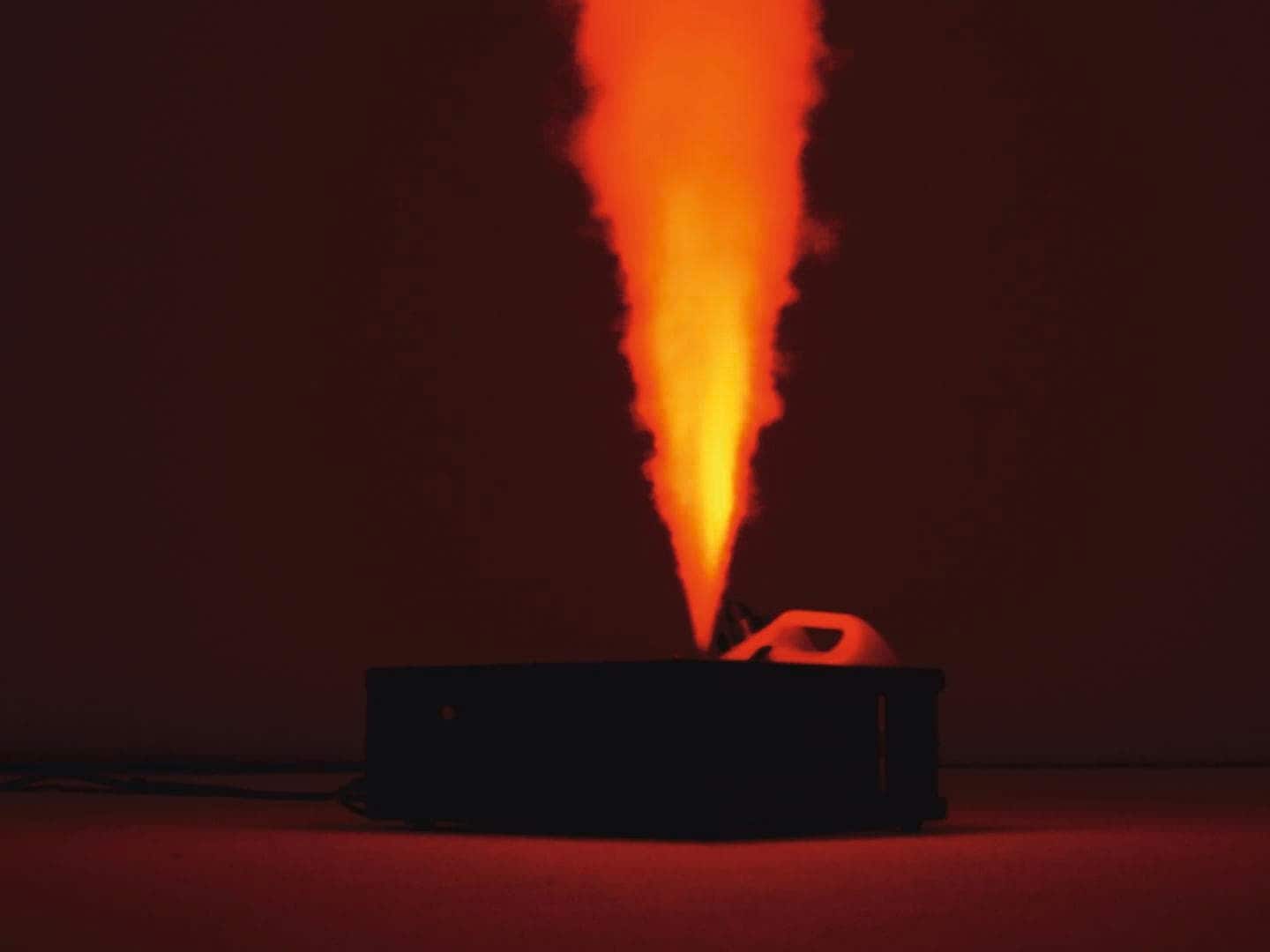

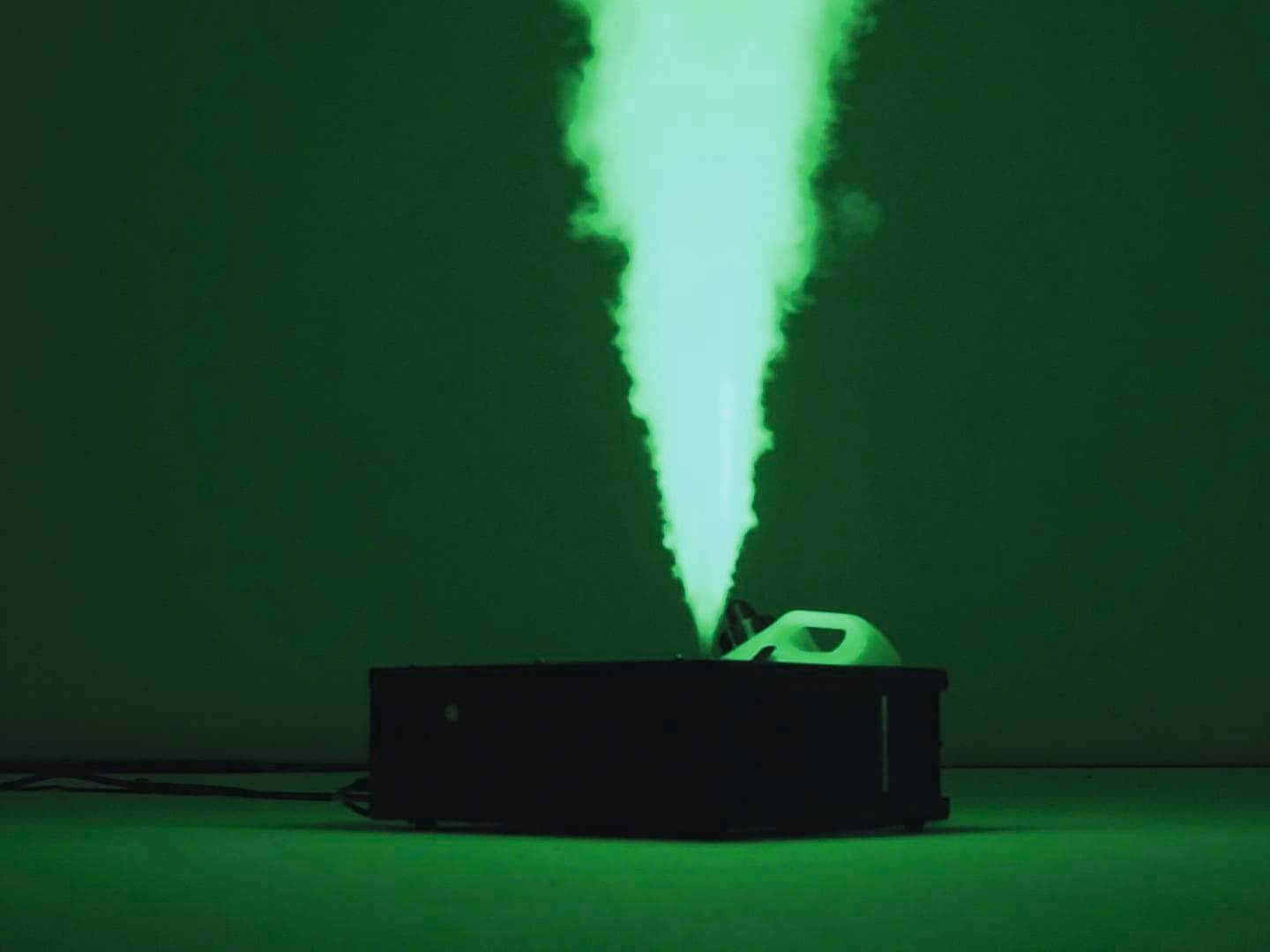

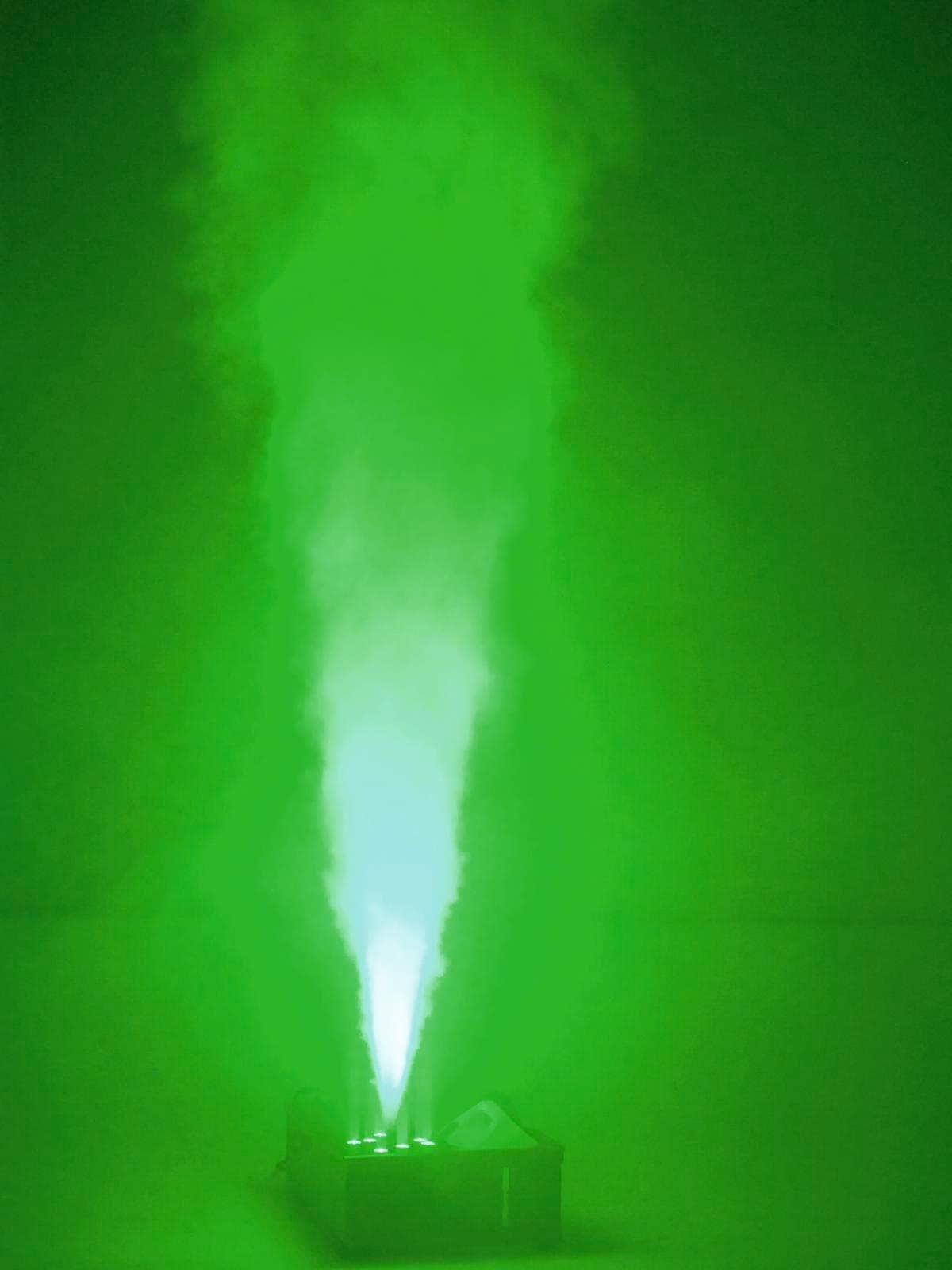

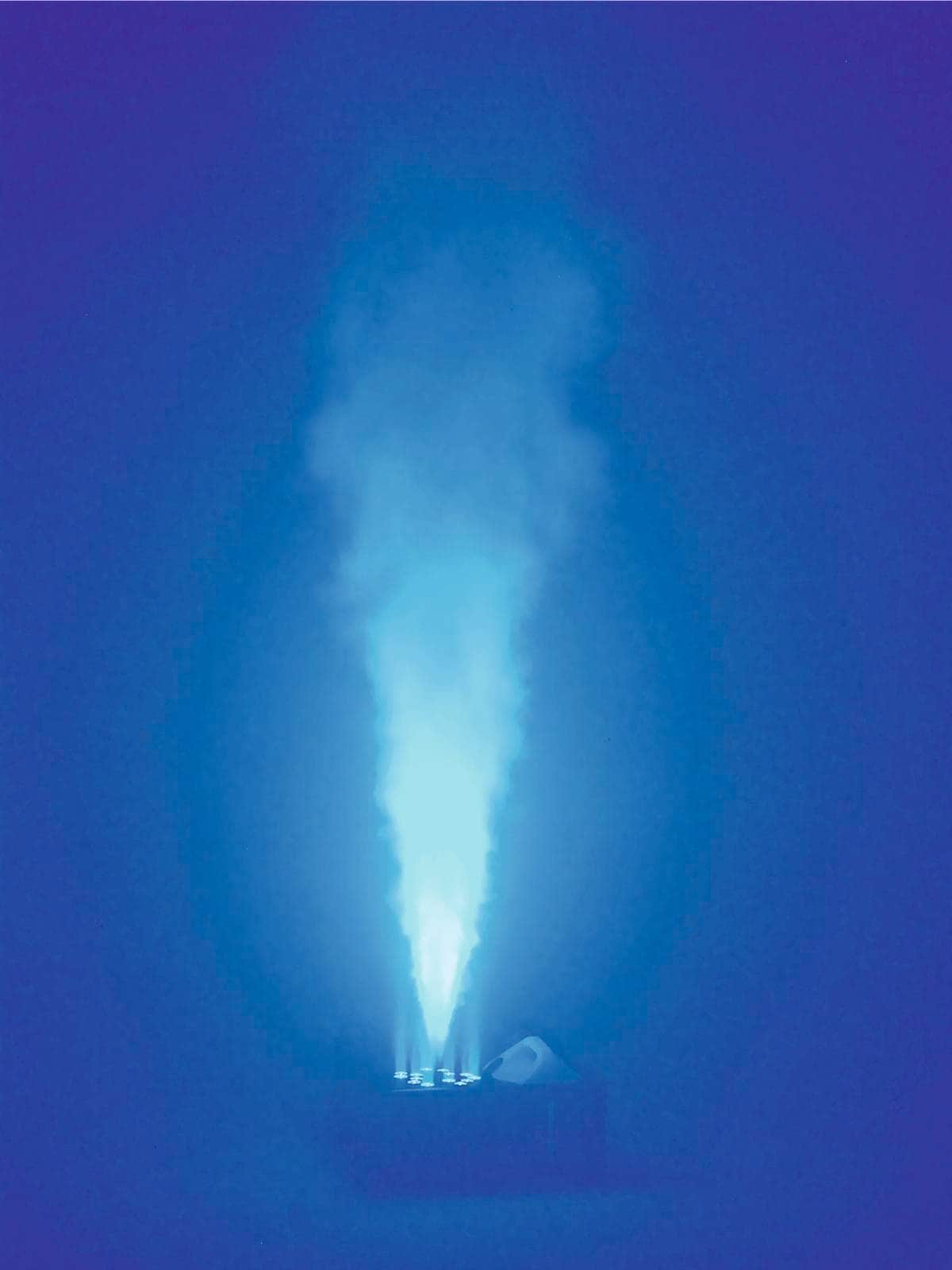

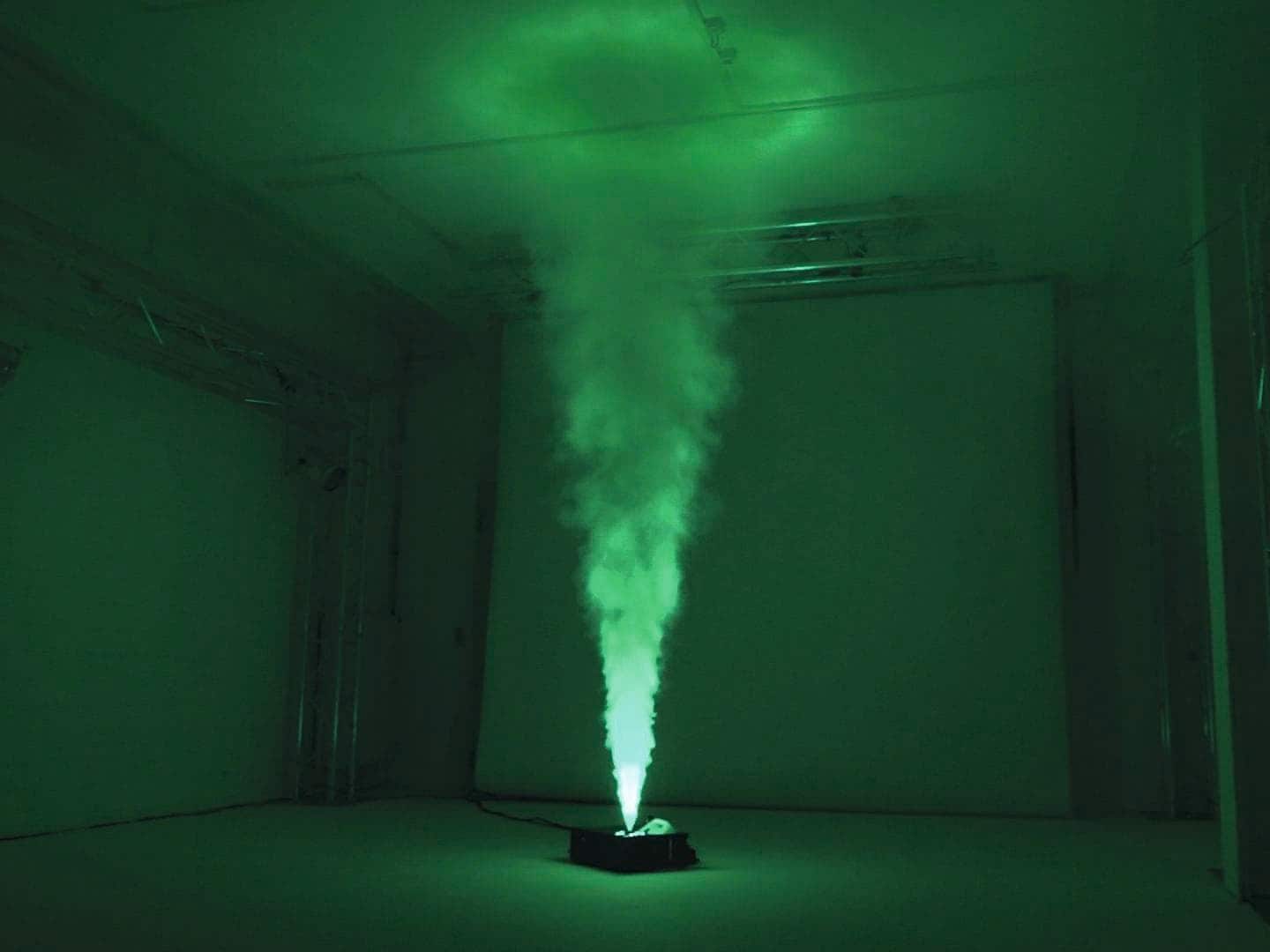

• Your all-in-one solution with powerful vertical smoke output

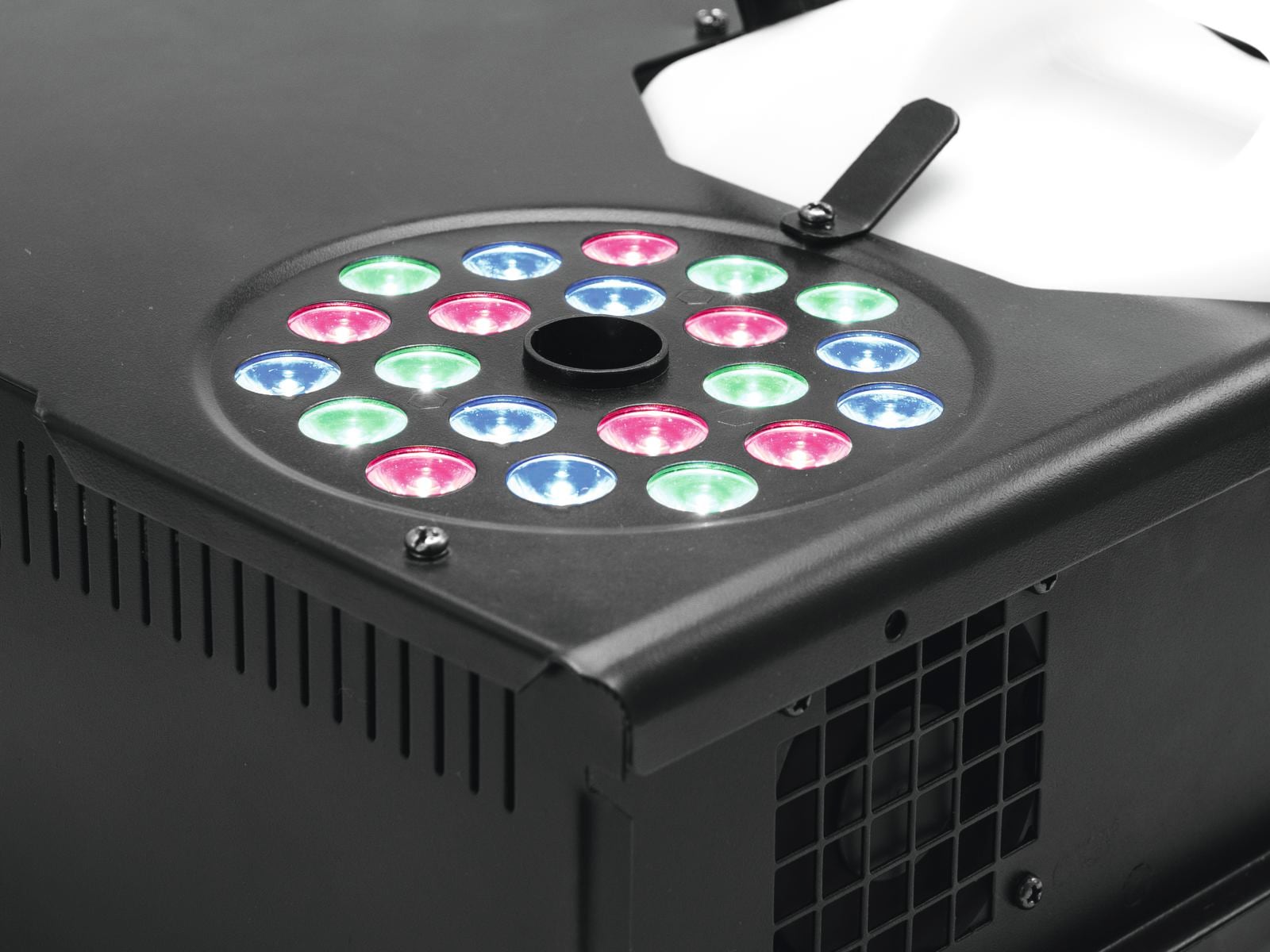

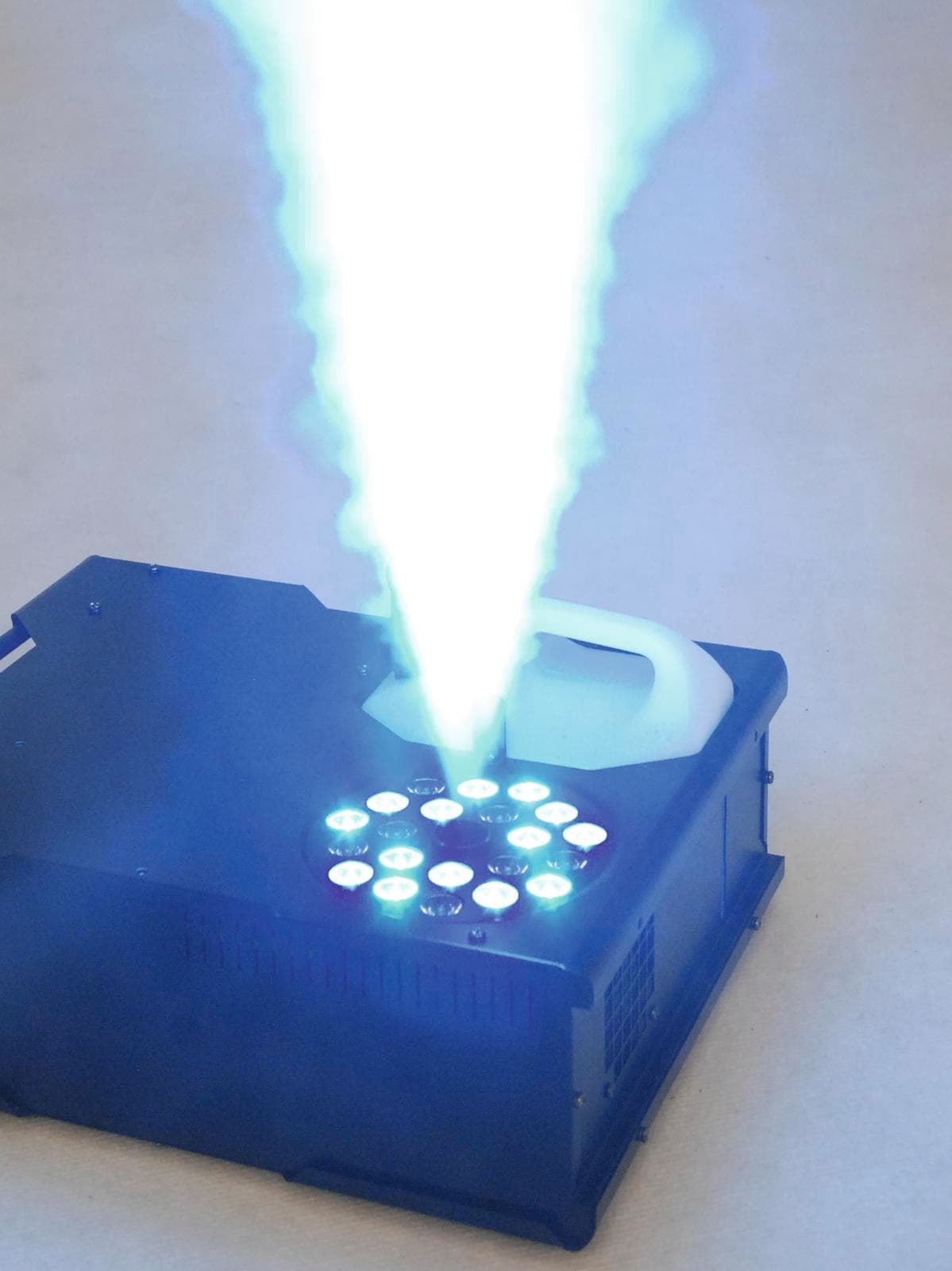

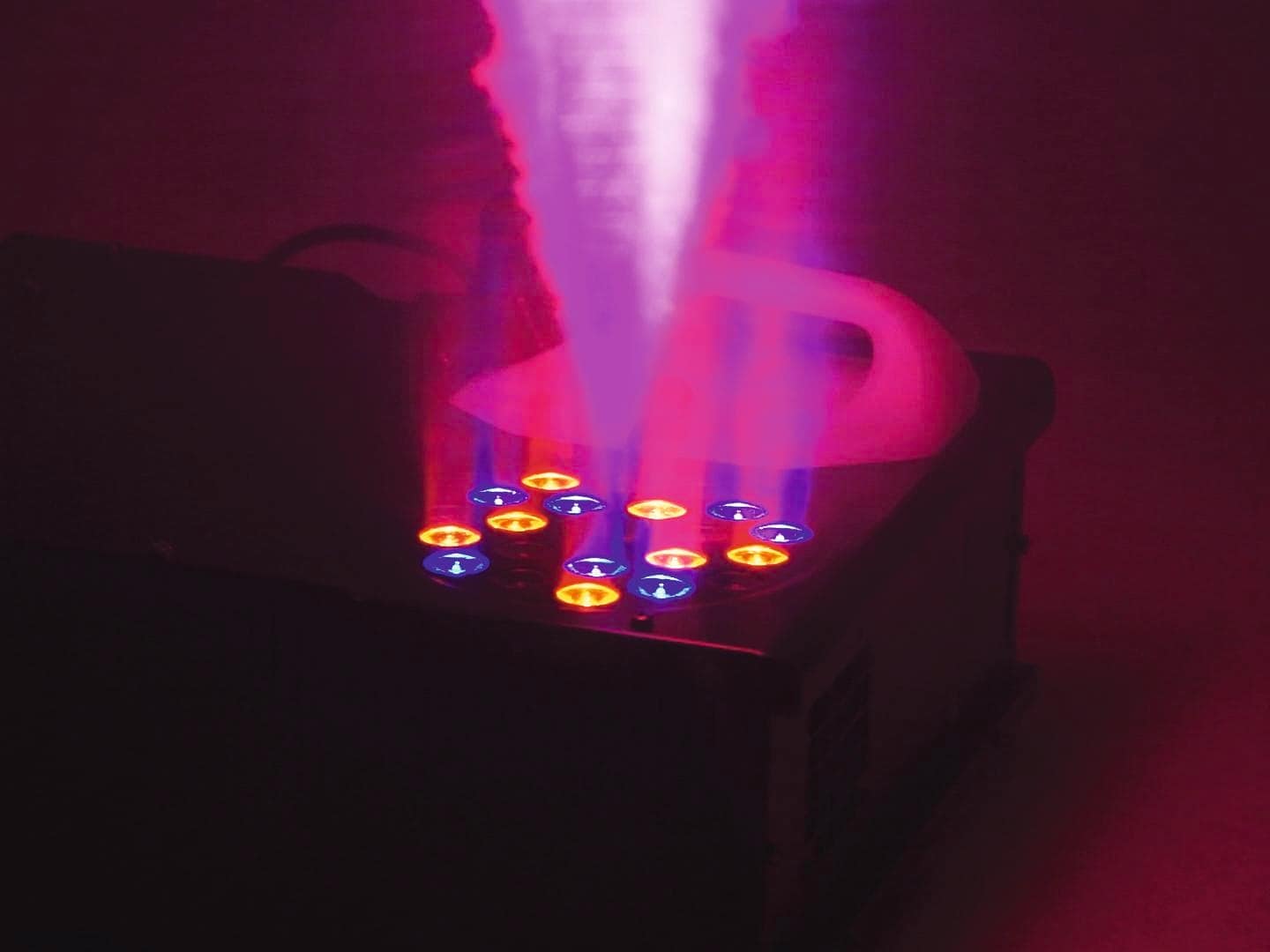

• Output nozzle with RGB LED illumination for impressive effect presentations
• Additional button for manual activation
• 21 powerful LEDs 3 W R/G/B
• Color selection; color change adjustable
• Strobe effect
• Output distance: Approx. 6 m
• Control via DMX; stand-alone; Wireless remote control

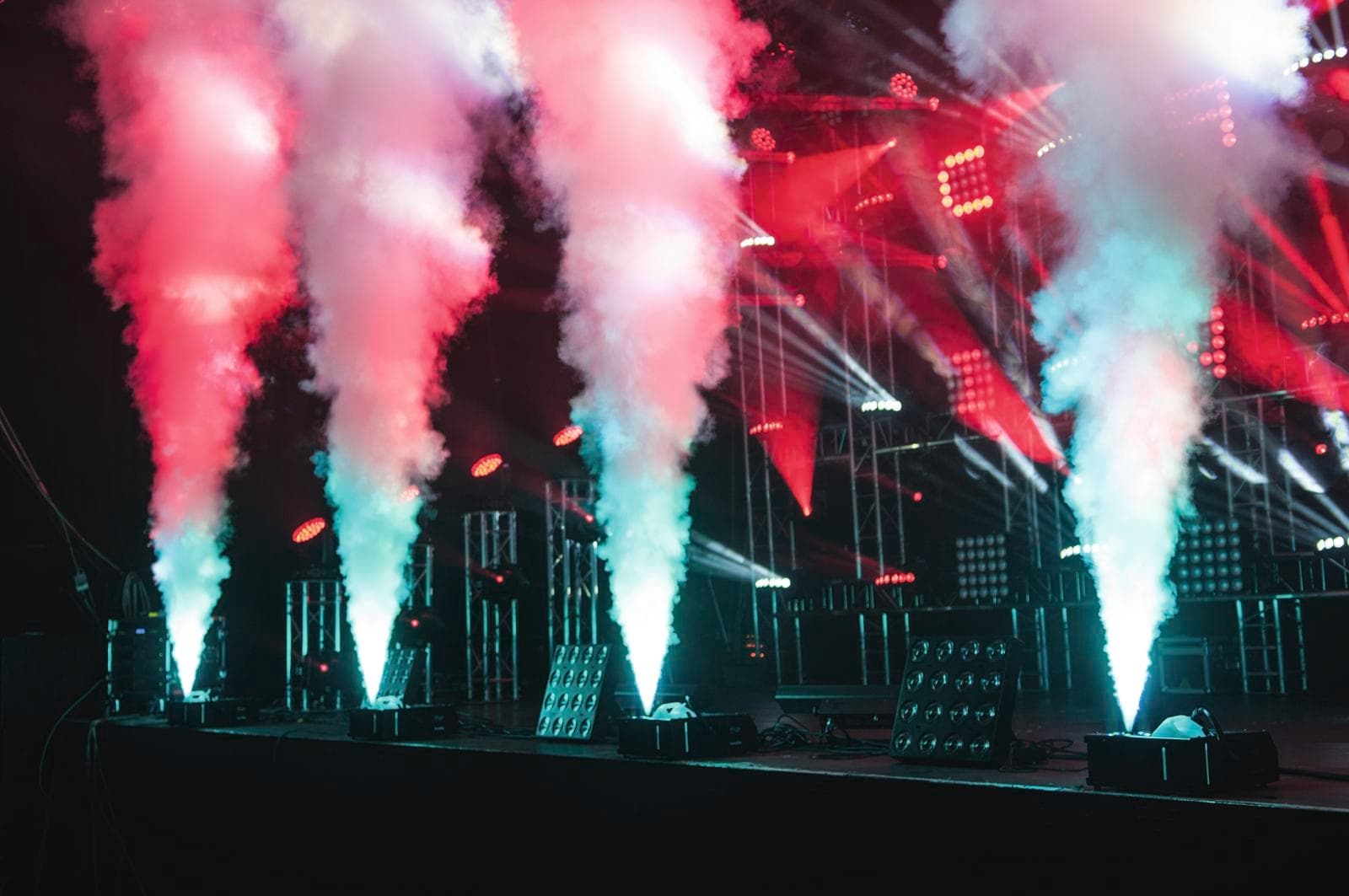

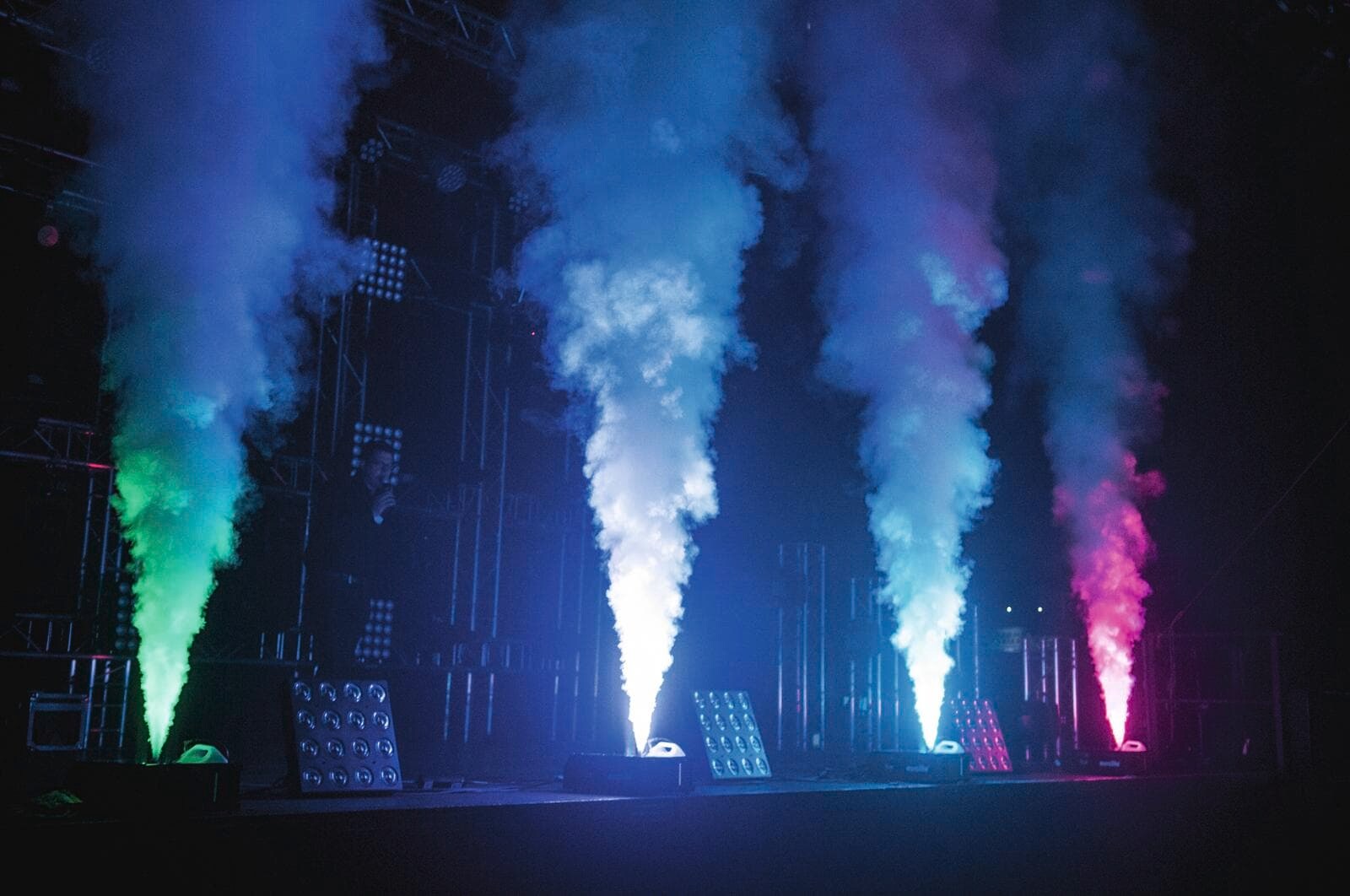

• For application areas such as: Carnival; Stage; Lender; Clubs/dancing school
• Preprogrammed in Light´J; LED PC-Control 512; Light Captain
• Removable tank with level indication
• Operates on water-based fluid

Package contents

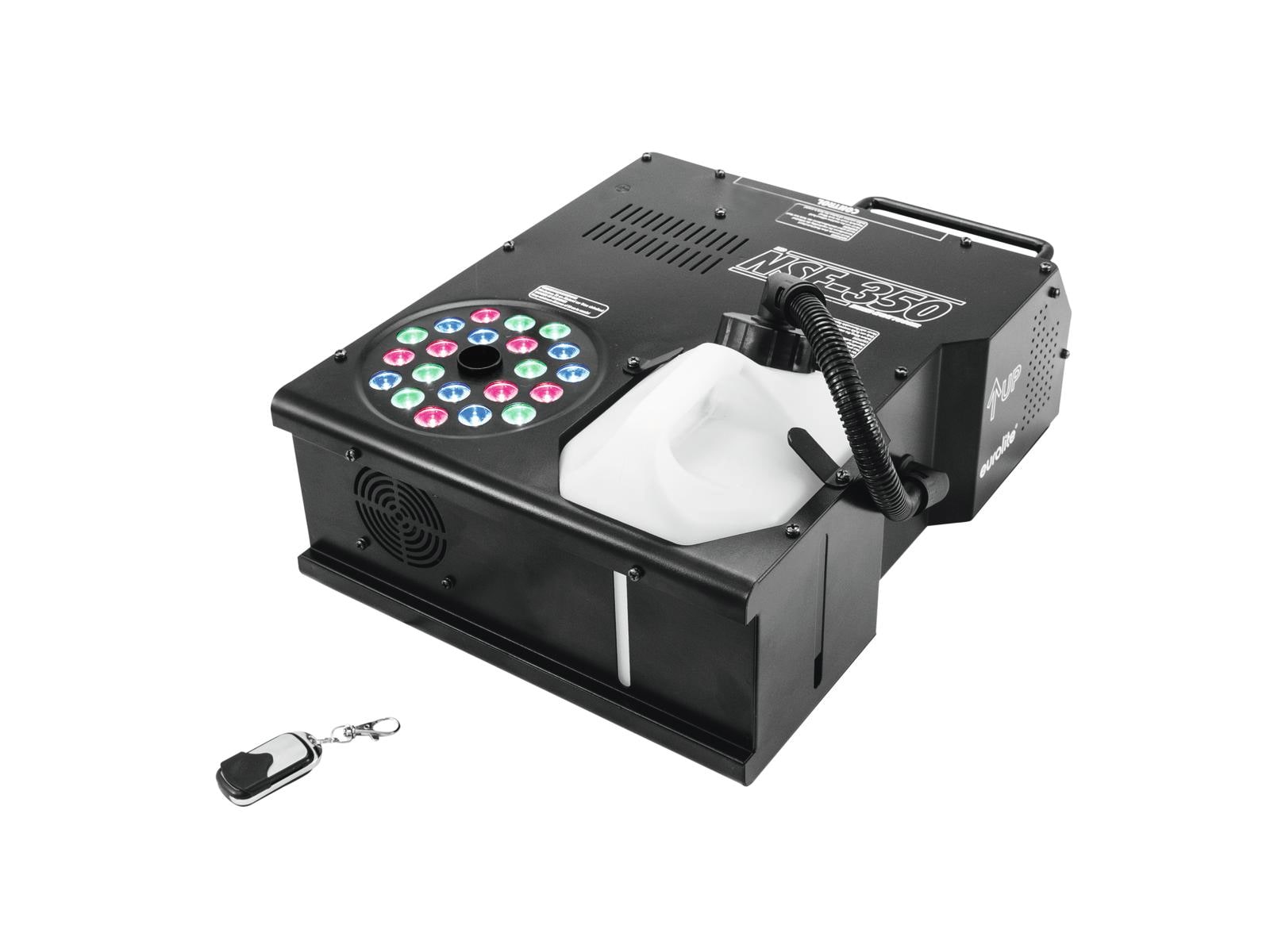

• 1 x device, 1 x user manual, 1 x power cord, 1 x transmitter, 1 x declaration of conformity, 1 x container, 1 x filter, 1 x battery

Power supply:
230 V AC, 50 Hz
Power consumption:
1500 W
IP classification:
IP20
Power connection:
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
LED:
21 x 3 W R/G/B
Warm-up time:
Approx. 5 min
Output volume:
Approx. 1130 m³/min
Output distance:
Approx. 6 m
Tank capacity:
2,5 l water-based fluid removable tank
Fluid consumption:
Approx. 95 ml/min
DMX channels:
8

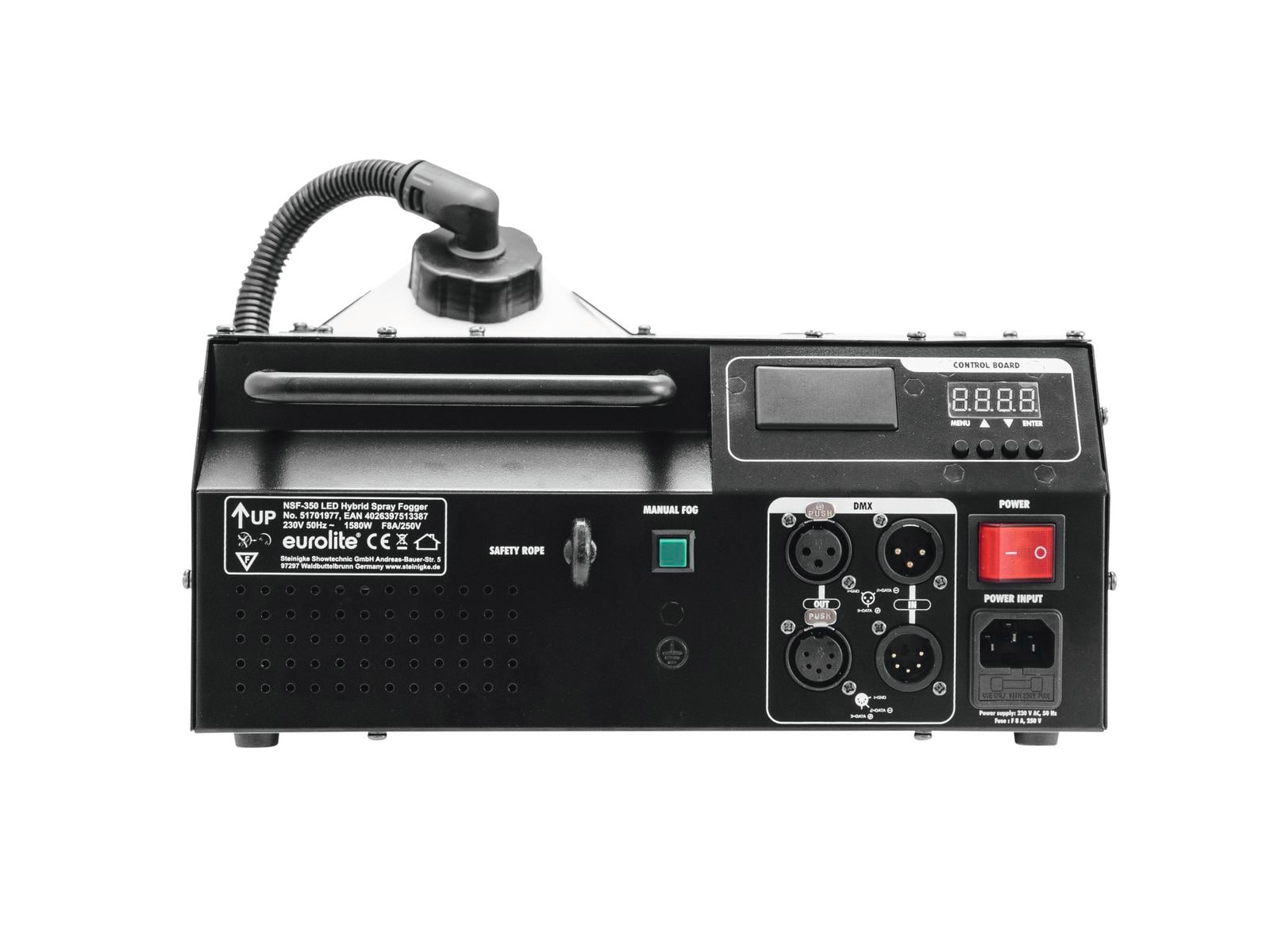

DMX input:
1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version
Control:
DMX; stand-alone; Wireless remote control
Preprogrammed in:
Light´J; LED PC-Control 512; Light Captain
Housing color:
Black
Controls:
Low fluid
Color:
Black
Dimensions:
Width: 41 cm
Depth: 63,5 cm
Height: 20,5 cm
Weight:
7,90 kg
Remote control
Battery:
1 x 12 V LR27 alkaline manganese built-in
Carrier frequency:
433,920 MHz
